13.3.12.2 IP Firewall Rules
 Firewall
Create firewall rules to let any computer to send traffic to, or receive traffic from, programs, system services,
computers or users. Firewall rules can be created to take one of the three actions listed below that match
the rule’s criteria:
• Allow a connection
• Allow a connection only if it is secured through the use of Internet Protocol security
• Block a connection
Rules can be created for either inbound or outbound traffic.
To view the IP firewall rules:
1. Select the Statistics menu from the Web UI.
2. Select the System tab and then select the Access Point node.
3. Expand the Firewall menu to reveal its sub menu options.
4. Select IP Firewall Rules.

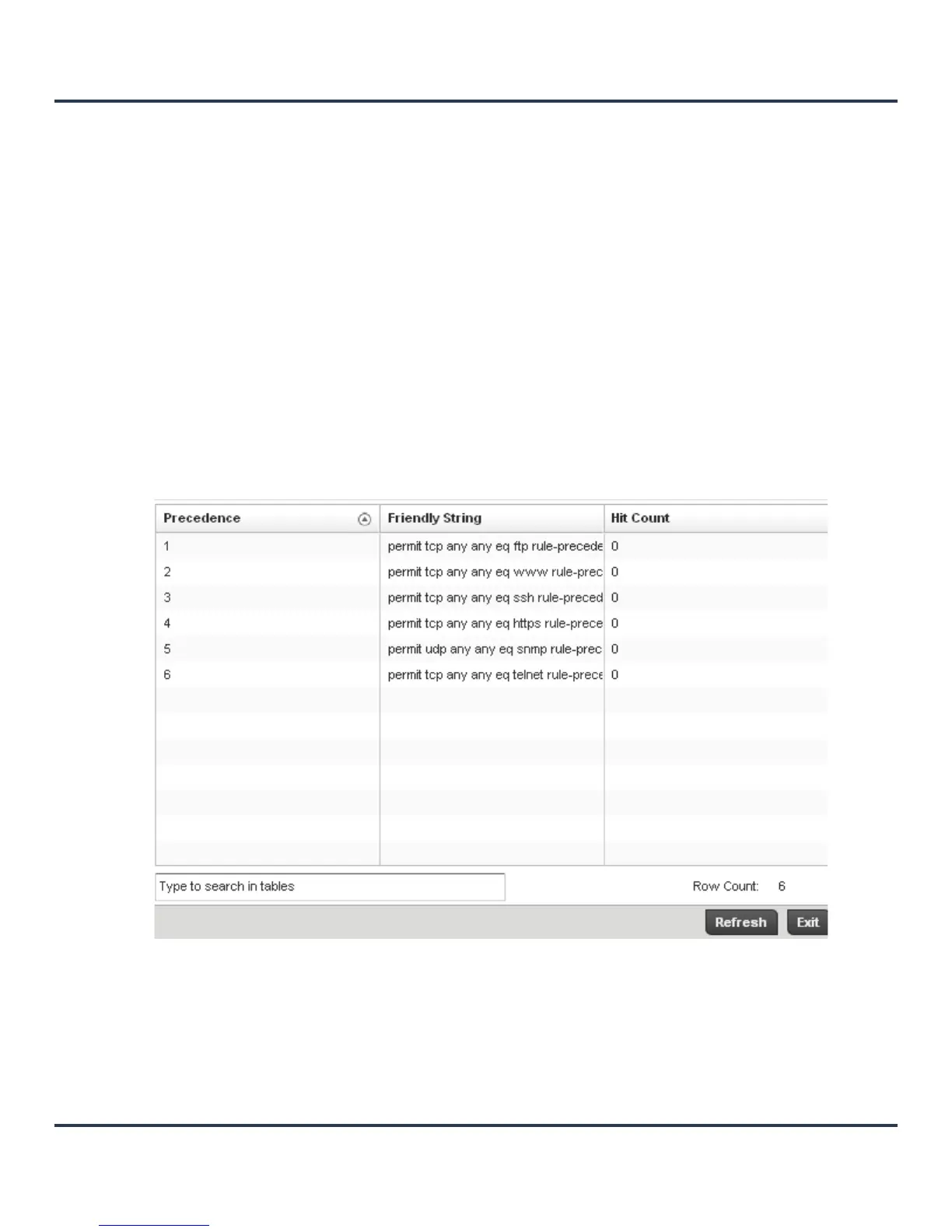

Figure 13-32 Access Point Firewall - IP Firewall Rules screen
