4.2 Network View
 Dashboard
The Network View displays device topology association between an AP-6511 its RF Domain and its managed
wireless clients. This association is displayed using a number of different graph and filter options.
To review the Network Topology, select Dashboard > Overview > Network.

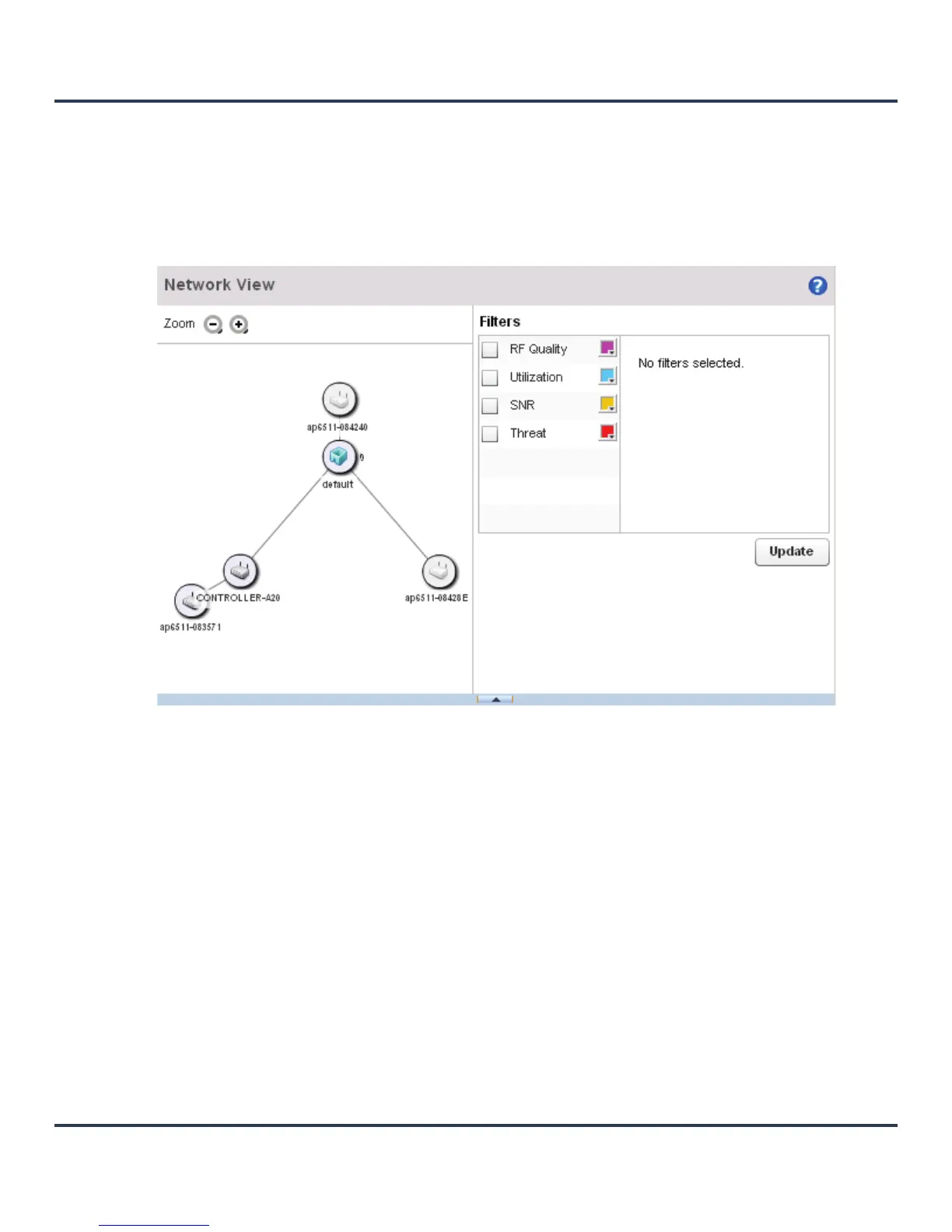

Figure 4-12 Network View Topology
The screen displays icons for the different views that can be created. Apart from device specific icons, the
following three icons are available:
• default – Displays information about the AP-6511’s default RF Domain.
• system – Displays information about the current system.
Use these icons to navigate within the Network view and manipulate the display.
Select the Settings link to define how devices are displayed within the Network View.
