Motorola Solutions AP-6511 Access Point System Reference Guide
4-8

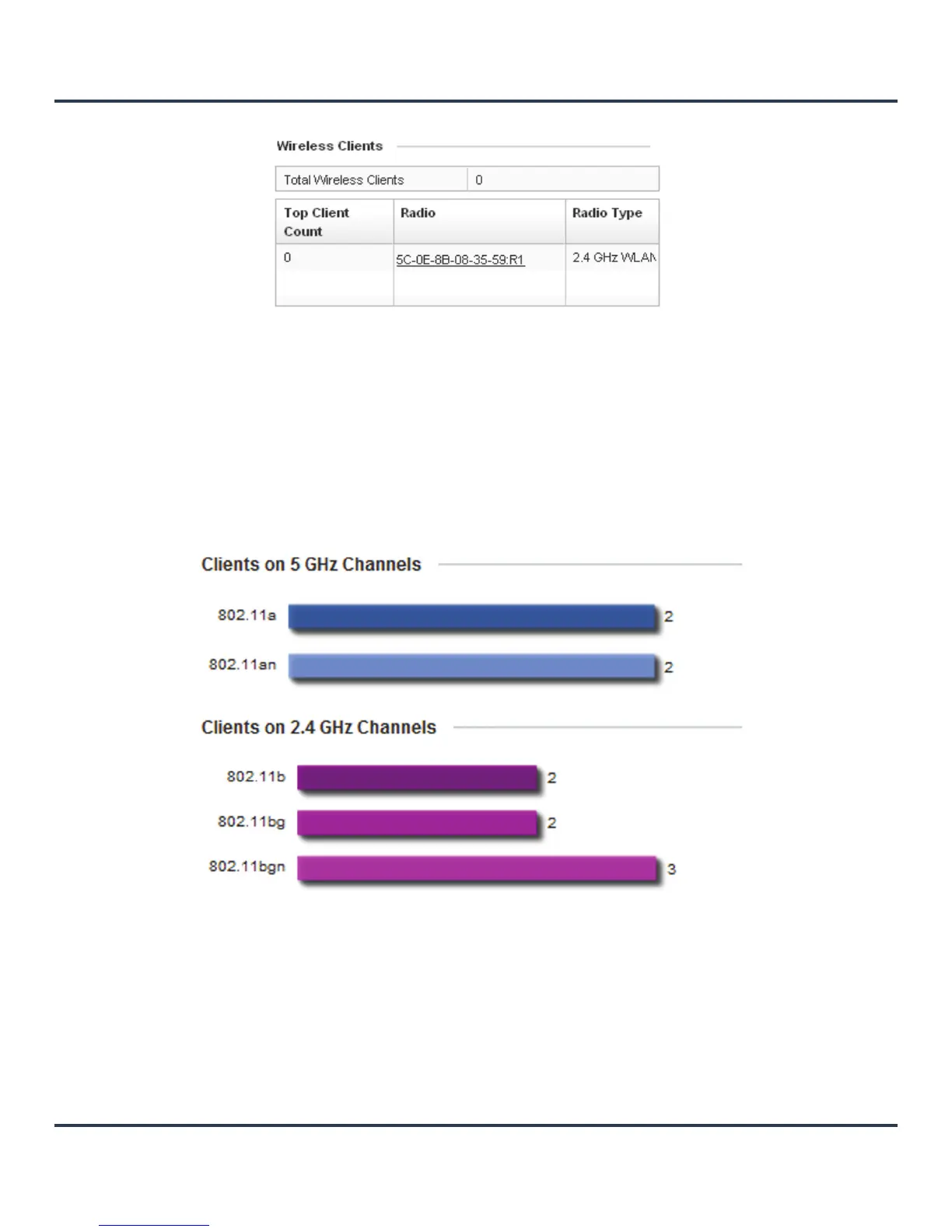

Figure 4-10 Wireless Clients field
Information in the Wireless Clients field is presented in two tables. The first table lists the total number of
wireless clients managed by this AP-6511. The second table lists an ordered ranking of radios based on their
supported client count. Use this information to assess if an AP-6511 managed radio is optimally deployed in
respect to its radio type and intended client support requirements.
4.1.1.2.8 Client on Channels
Inventory
The Client of Channels field displays a bar-graph for wireless clients segregated by their operating
frequency. Information for each channel is further classified based on 802.11x band.
Figure 4-11 Client On Channel field
For 5 GHz, information is displayed in the 802.11a and 802.11an radio bands. For 2.4 GHz, information is
displayed in the 802.11b, 802.11bg, and 802.11bgn radio bands.
