Motorola Solutions AP-6511 Access Point System Reference Guide
6-32

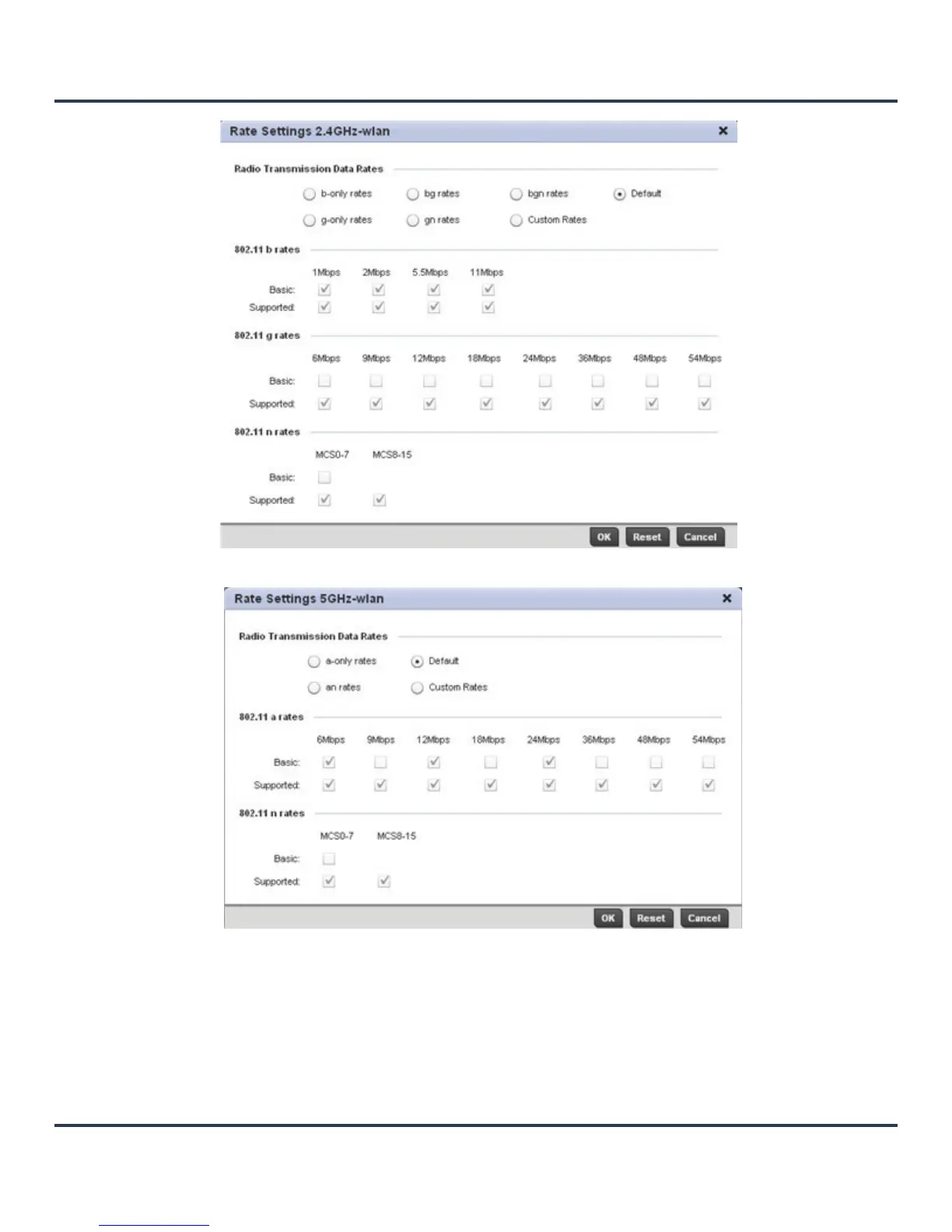

Figure 6-15 Advanced WLAN Rate Settings 2.4 GHz screen
Figure 6-16 Advanced WLAN Rate Settings 5 GHz screen
Define both minimum Basic and optimal Supported rates as required for the 802.11b rates, 802.11g rates
and 802.11n rates supported by the 2.4 GHz band and 802.11a and 802.11n rates supported by the 5.0
GHz radio band. These are the rates wireless client traffic is supported within this WLAN.
If supporting 802.11n, select a Supported MCS index. Set a MCS (modulation and coding scheme) in
respect to the radio’s channel width and guard interval. A MCS defines (based on RF channel conditions)
an optimal combination of 8 data rates, bonded channels, multiple spatial streams, different guard
