Profile Configuration
7-17
5. If required, select a radio configuration and select the Edit button to modify its configuration.

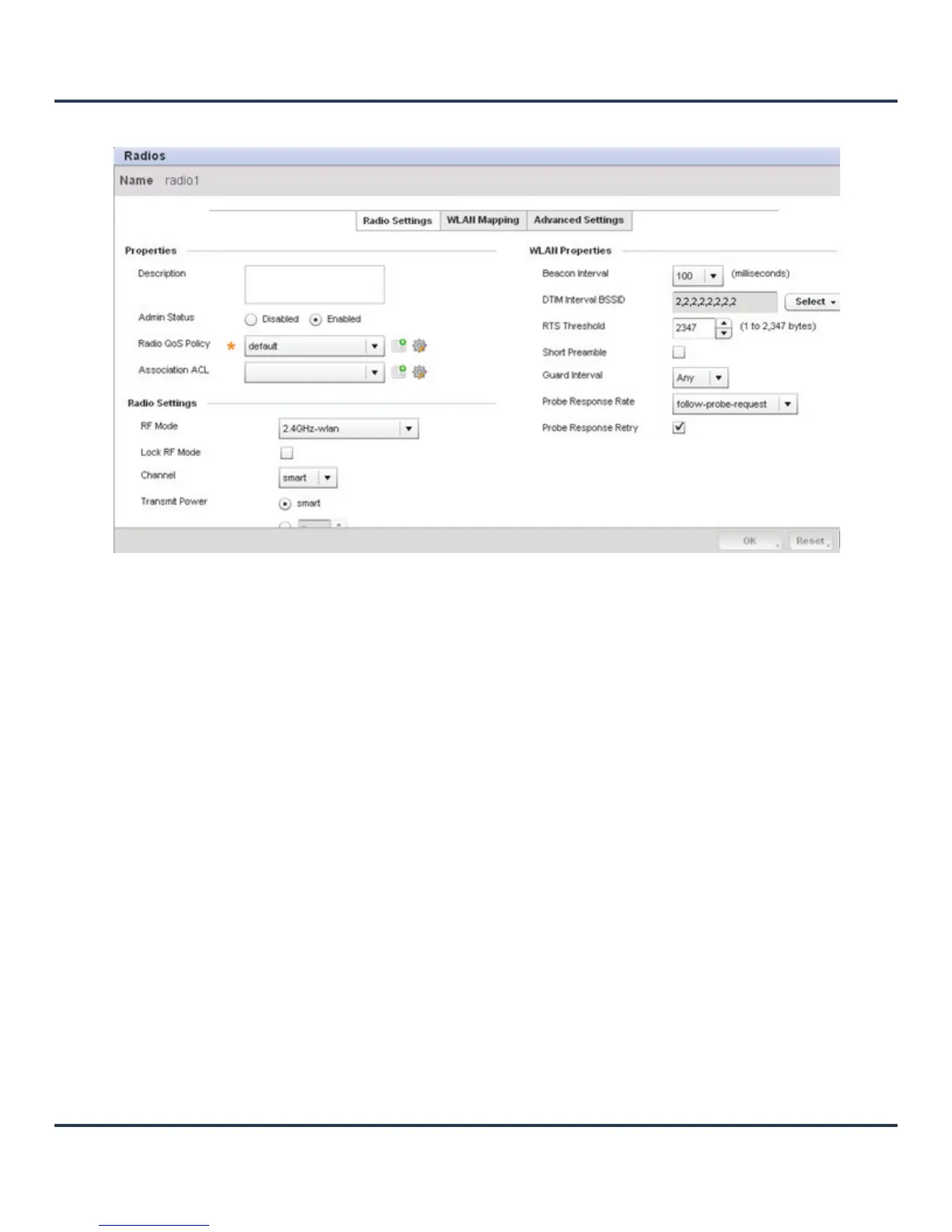

Figure 7-10 Access Point Radio - Radio Settings tab
The Radio Settings tab displays by default.
6. Define the following radio configuration parameters from within the Properties field:
Description Provide or edit a description (1 - 64 characters in length) for the radio that helps
differentiate it from others with similar configurations.
Admin Status Either select the Active or Shutdown radio button to define this radio’s
current status within the network. When defined as Active, the Access Point
is operational and available for client support.
Radio QoS Policy Use the drop-down menu to specify an existing QoS policy to apply to the
Access Point radio in respect to its intended radio traffic. If there’s no existing
suiting the radio’s intended operation, select the Create icon to define a new
QoS policy that can be applied to this profile. For more information, see
Radio
QoS Policy on page 6-48
.
Association ACL Use the drop-down menu to specify an existing Association ACL policy to apply
to the Access Point radio. An Association ACL is a policy-based Access Control
List (ACL) that either prevents or allows wireless clients from connecting to a
Access Point radio. An ACL is a sequential collection of permit and deny
conditions that apply to packets. When a packet is received on an interface,
the packet is compared against any applied ACLs to verify the packet has the
required permissions to be forwarded based on the criteria specified in the
access lists. If a packet does not meet any of the criteria specified in the ACL,
the packet is dropped. Select the Create icon to define a new Association ACL
that can be applied to this profile. For more information, see
Association ACL on
page 6-52
.
