Statistics
13-11
To view the wireless LAN statistics:
1. Select the Statistics menu from the Web UI.
2. Select the RF Domain tab from the left navigation pane and then select the RF Domain node.
3. Select Wireless LANs.

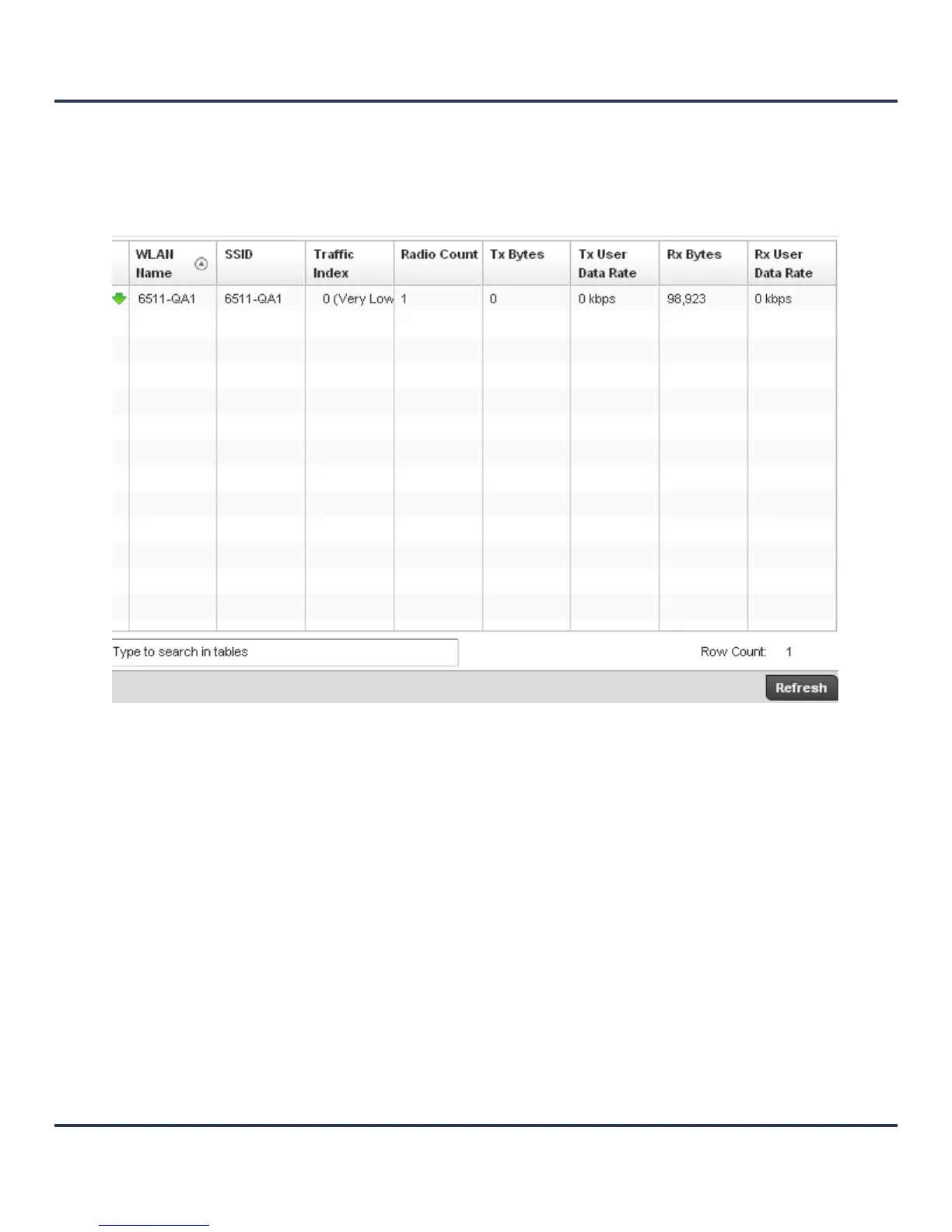

Figure 13-6 Wireless LAN screen
This screen displays the following information:
WLAN Name Displays a text-based name used to identify the WLAN.
SSID Displays the Service Set ID (SSID) of each WLAN.
Traffic Index Displays the traffic utilization index, which measures how efficiently the
traffic medium is used. It is defined as the percentage of current throughput
relative to the maximum possible throughput. Traffic indices are: 0 – 20 (very
low utilization), 20 – 40 (low utilization), 40 – 60 (moderate utilization), and
60 and above (high utilization).
Radio Count Displays the number of radios associated with this WLAN.
Tx Bytes Displays the average number of packets (in bytes) sent on the selected
WLAN.
Tx User Data
Rate
Displays the average data rate per user for packets transmitted.
