Device Configuration
5-11

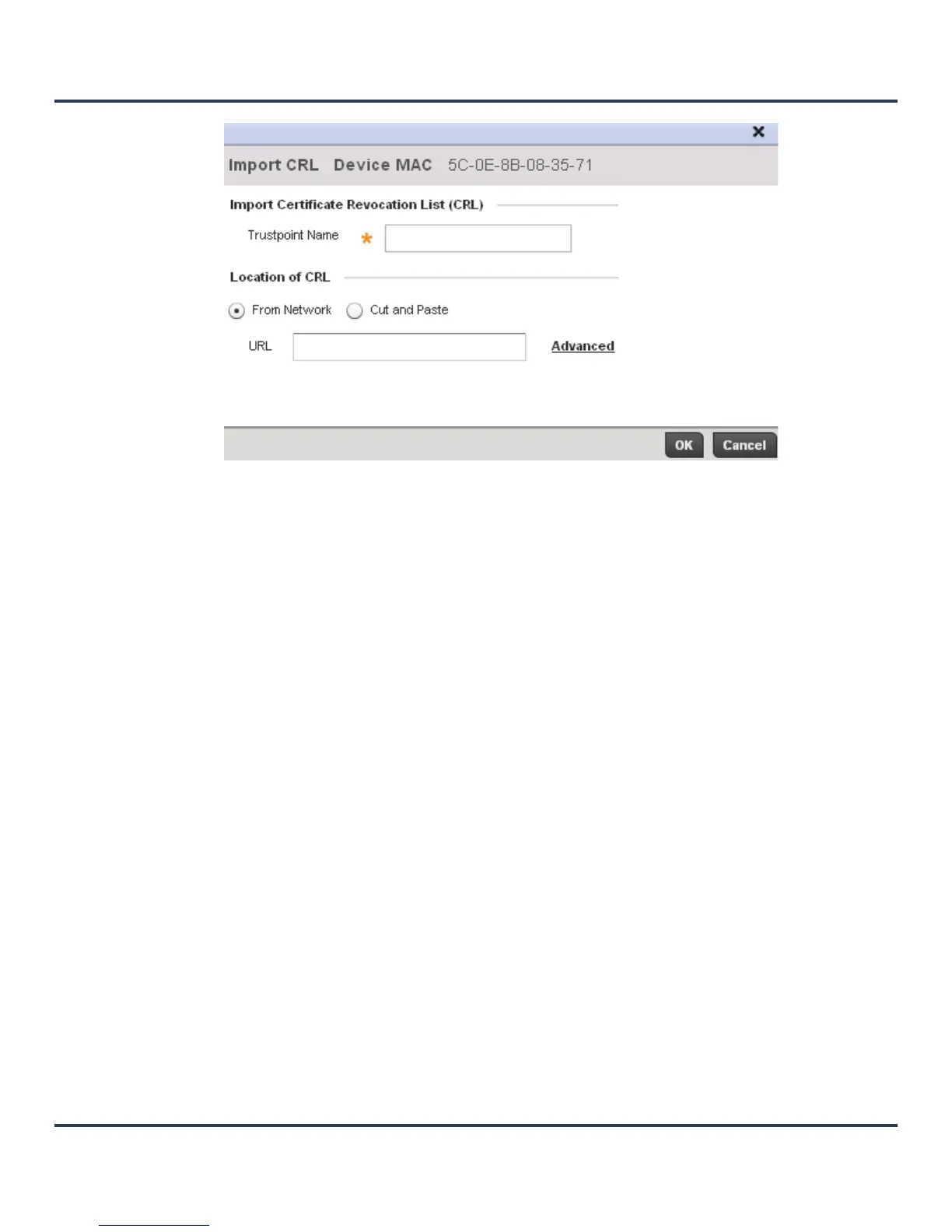

Figure 5-6 Certificate Management - Import CRL screen
10. Define the following configuration parameters required for the Import of the CRL:
Trustpoint Name Enter the 32 character maximum name assigned to the target trustpoint
signing the certificate. A trustpoint represents a CA/identity pair containing
the identity of the CA, CA-specific configuration parameters, and an
association with an enrolled identity certificate.
From Network Select the From Network radio button to provide network address
information to the location of the target CRL. The number of additional fields
that populate the screen is dependent on the selected protocol.
Cut and Paste Select the Cut and Paste radio button to copy an existing CRL into the cut and
past field. When pasting a CRL no additional network address information is
required.
URL Provide the complete URL to the location of the CRL. If needed, select
Advanced to expand the dialog to display network address information for the
location of the target CRL. The number of additional fields that populate the
screen is dependent on the selected protocol.
Protocol Select the protocol used for importing the CRL. Available options include:
tftp
ftp
sftp
http
cf
usb1
usb2
Port Use the spinner control to set the port. This option is not valid for cf, usb1, and
usb2.
