Device Configuration
5-45

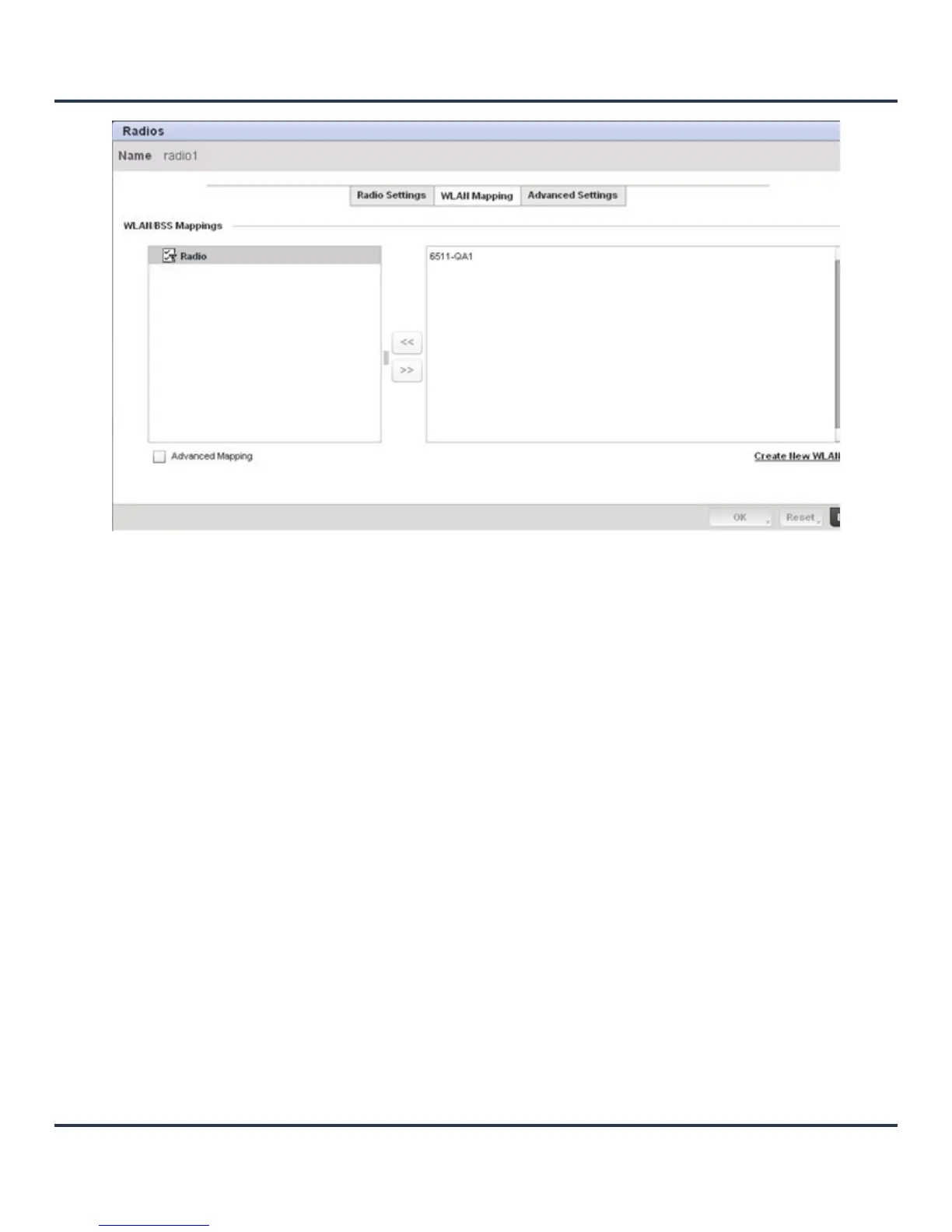

Figure 5-25 Profile Overrides - WLAN Mapping tab
12.Refer to the WLAN/BSS Mappings field to set or override WLAN BSSID assignments for an existing
Access Point deployment.
Administrators can assign each WLAN its own BSSID. If using a single-radio access point, there are 8
BSSIDs available. If using a dual-radio access point there are 8 BSSIDs for the 802.11b/g/n radio and 8
BSSIDs for the 802.11a/n radio.
13.Select OK to save the changes and overrides to the WLAN Mapping. Select Reset to revert to the last
saved configuration.
14.Select the Advanced Settings tab.
