VJ-1624X/1624WX/1924WX OPERATION MANUAL Before using
3.6 Print quality adjustment 145

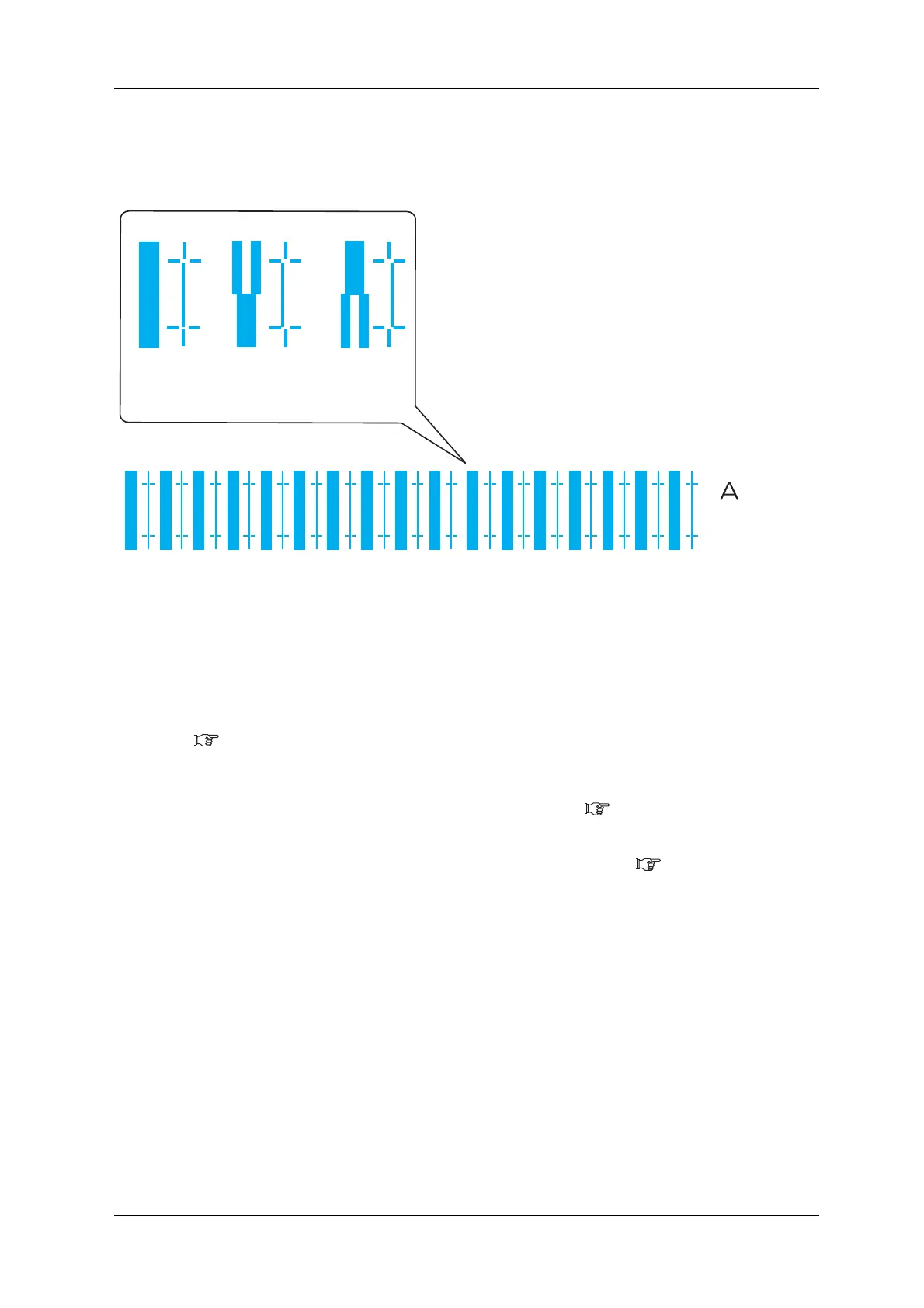

4. Confirm that the confirmation pattern printing result is as follows.
• Check each of the confirmation patterns A to F.
a. When the printing result is Adequate;
You do not need perform print quality adjustment.
The procedure for print quality adjustment is complete.
b. When the printing result is Not adequate;
You need to perform print quality adjustment.
• Perform rough adjustment when the degree of misalignment is big.
3.6.2.2 Custom rough adjustment pattern
• Perform micro adjustment when the degree of misalignment is small.
• When adjustment is required for all patterns (A to F): 3.6.2.3 Custom micro
adjustment pattern
• When adjustment is required for one of the patterns (A to F): 3.6.2.3.2 Fine
Pattern A to F
Bi dir
Low H.Height
normal speed
large drop family
Adequate Not adequate Not adequate
To Next Page
