3.3.3 Changing the angle of Ink cartridge slot
The angle of the ink cartridge slot of this printer varies depending on the capacity of ink cartridges (or
ink packs).
Follow the procedure below to change the angle.
3.3.3.1 When inserting Ink cartridges vertically
Before installing the 440ml cartridges, change the angle as follows.

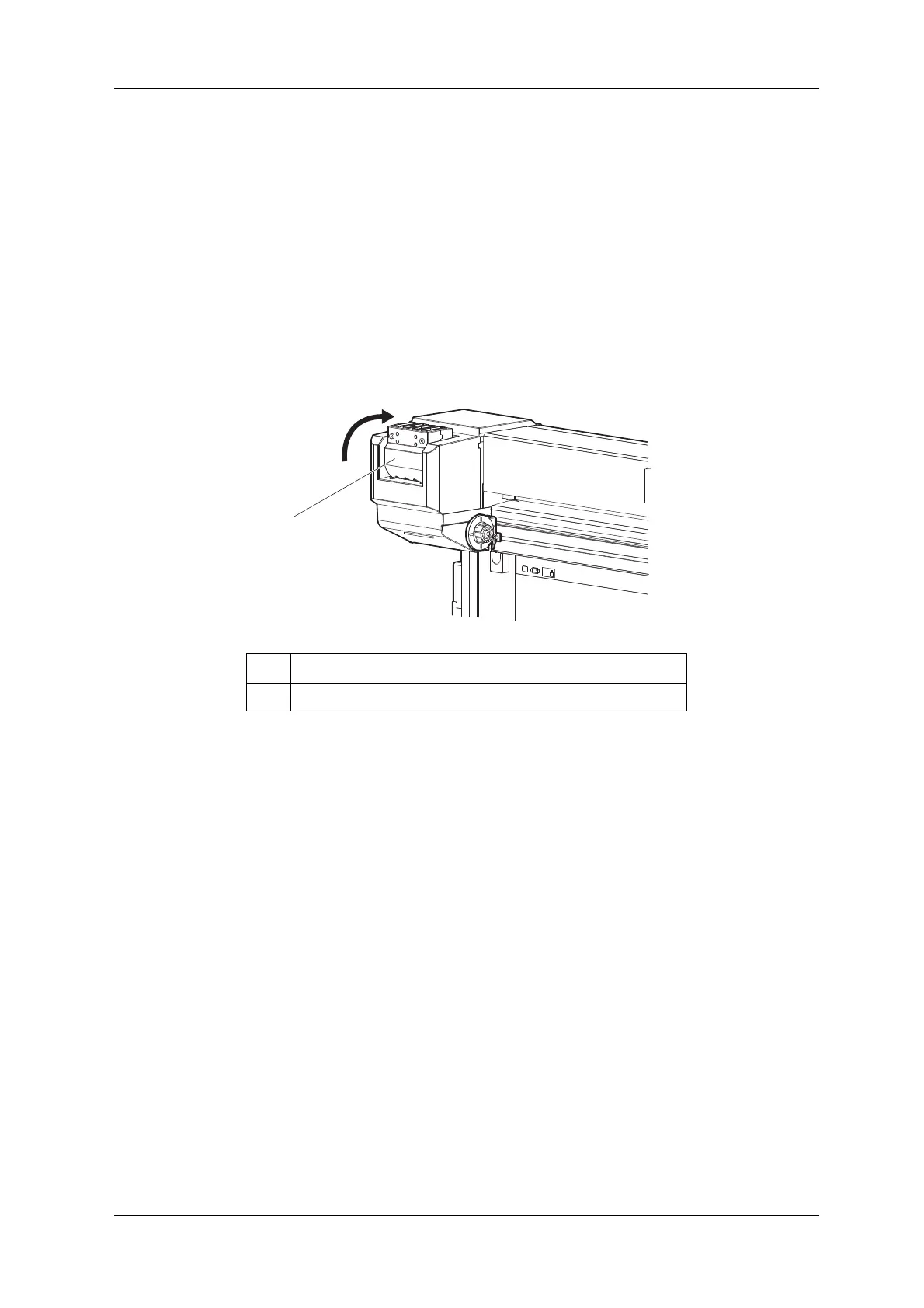

1. Rotale Ink cartridge slot by 90 degrees upward.
2. Check if Ink cartridge slot is vertical.
No. Name
1 Ink cartridge slot
1
