2 Product overview VJ-1624X/1624WX/1924WX OPERATION MANUAL
28 2.1 Names of parts and functions
2.1 Names of parts and functions
This section explains the names and functions of each part.

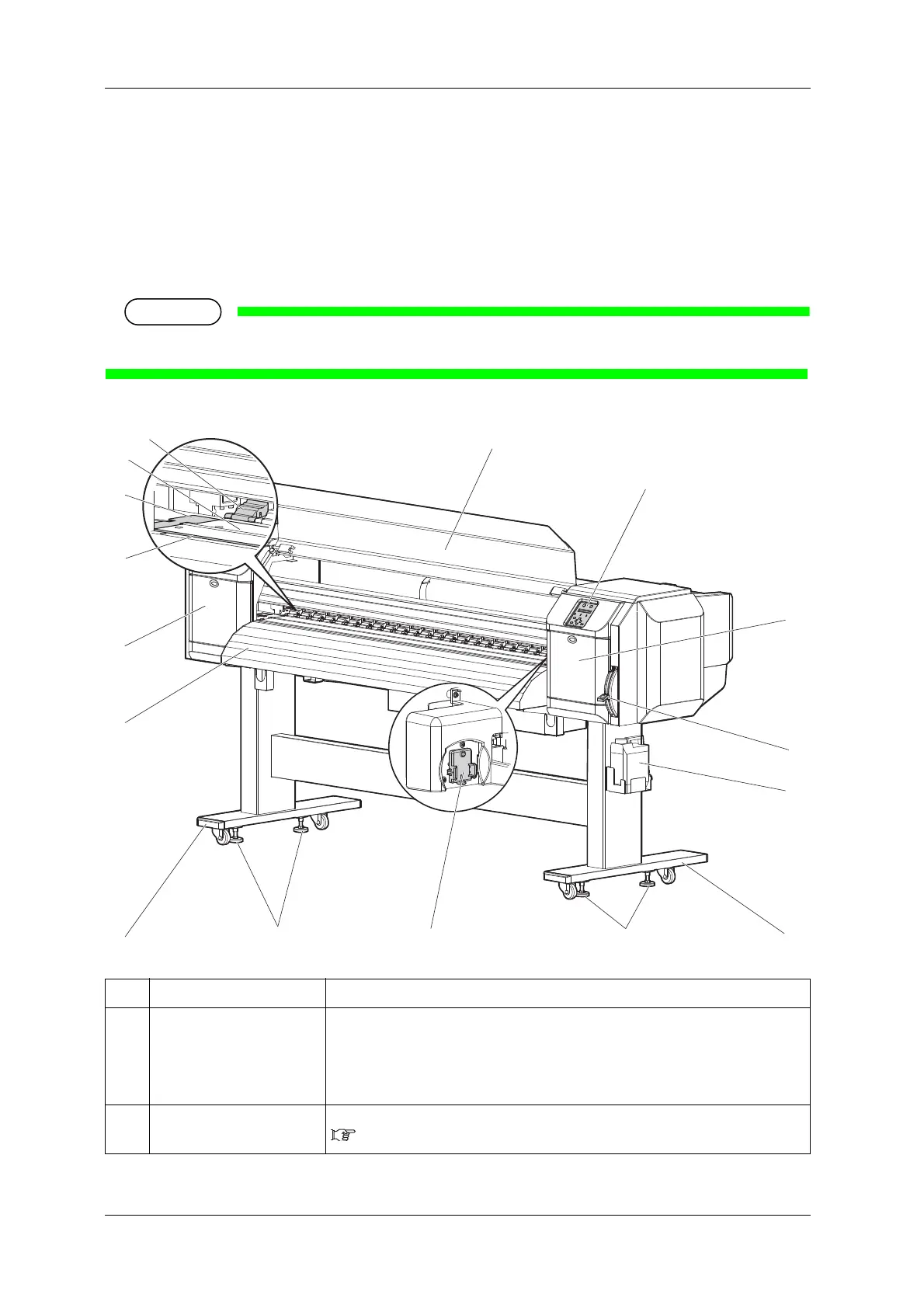

2.1.1 Front section
NOTE
The illustrations used in this section are those of VJ-1624X.
No. Name Function
1 Media loading lever Used for fixing or releasing the media.
• Lower Lever to fix the media.
• Lower Lever further to fix the media firmly.
Used to improve the accuracy of media feeding.
• Raise Lever to release the media.
2 Operation panel Used to set the operation condition, printer display and various functions.
2.1.3 Operation panel
11
1
10
2
3
9
4
13
7
8
5
4
12
9
6
10
