VJ-1624X/1624WX/1924WX OPERATION MANUAL Before using
3.4 Loading media 93

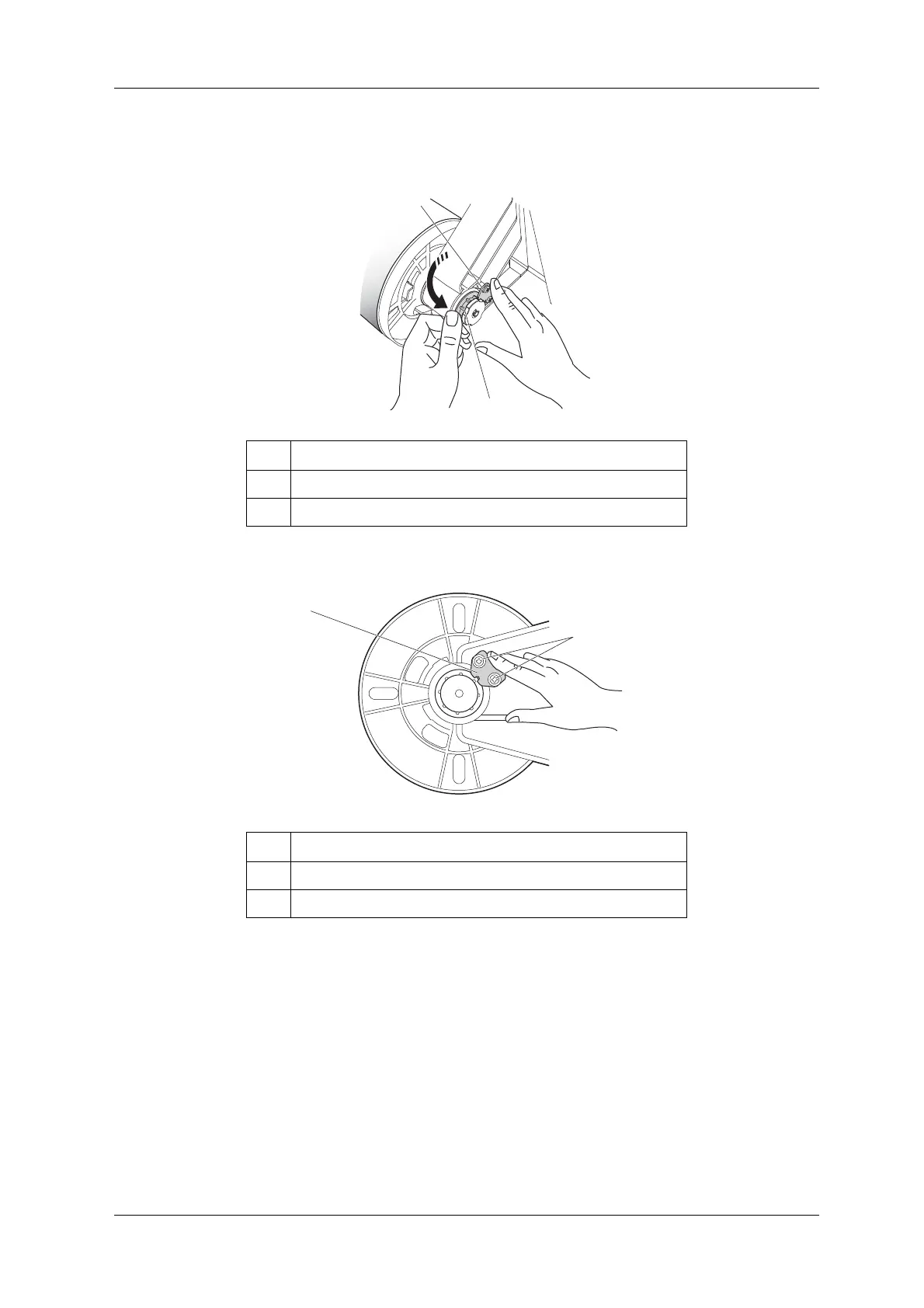

d. If it is not in the groove, hold Damper drive switching plate and rotate Damper stopper, and then
put the protruding portion in Damper drive switching plate.
e. Hold Damper drive switching plate and tighten the screws (2 pieces).
f. Make sure that Damper stopper does not rotate.
No. Name
1 Damper drive switching plate
2 Damper stopper
No. Name
1 Damper drive switching plate
2Screw
