NAiS FP Series Hardware Manual

FP0 Hardware 8.3 Attachment to DIN Rails
8-7Matsushita Electric Works (Europe) AG
8.3 Attachment to DIN Rails

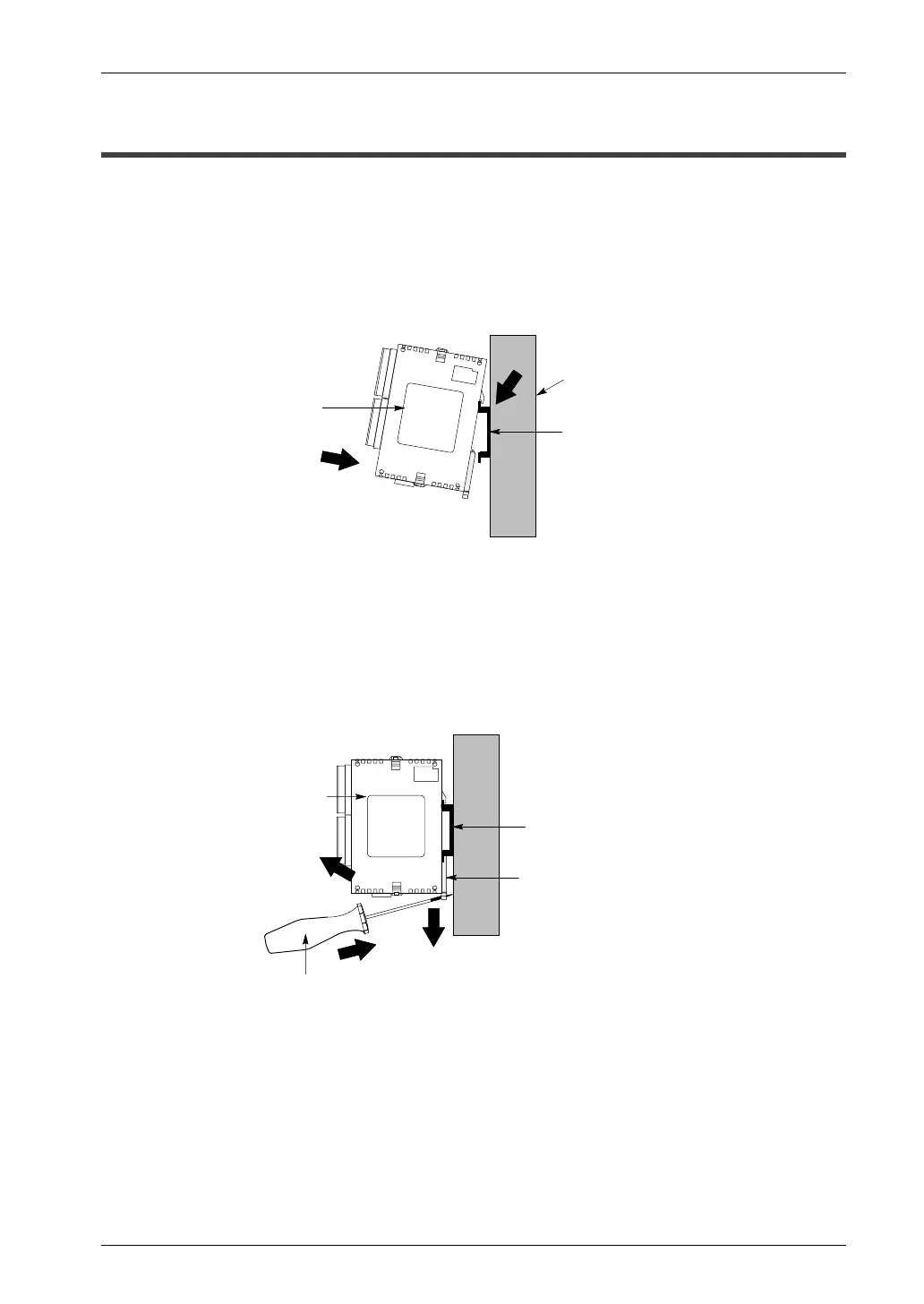

The FP0 unit enables one-touch attachment to DIN rails.
Procedure:
1. Fit the upper hook of the FP0 unit onto the DIN rail.
2. Without moving the upper hook, press on the lower hook to
fit the FP0 unit into position.
DIN rail
FP0 unit
Mounting panel
1
2
You can easily remove the FP0 unit as described below.
Procedure:
1. Insert a slotted screwdriver into the DIN rail attachment
lever.
2. Pull the attachment lever downwards.
3. Lift up the FP0 unit and remove it from the rail.
1
FP0 unit
DIN rail attachment
lever
Slotted screwdriver
2
3
DIN rail
