FP0 Hardware
Dimensions
D-8
Matsushita Electric W
orks (Europe) AG
D.7

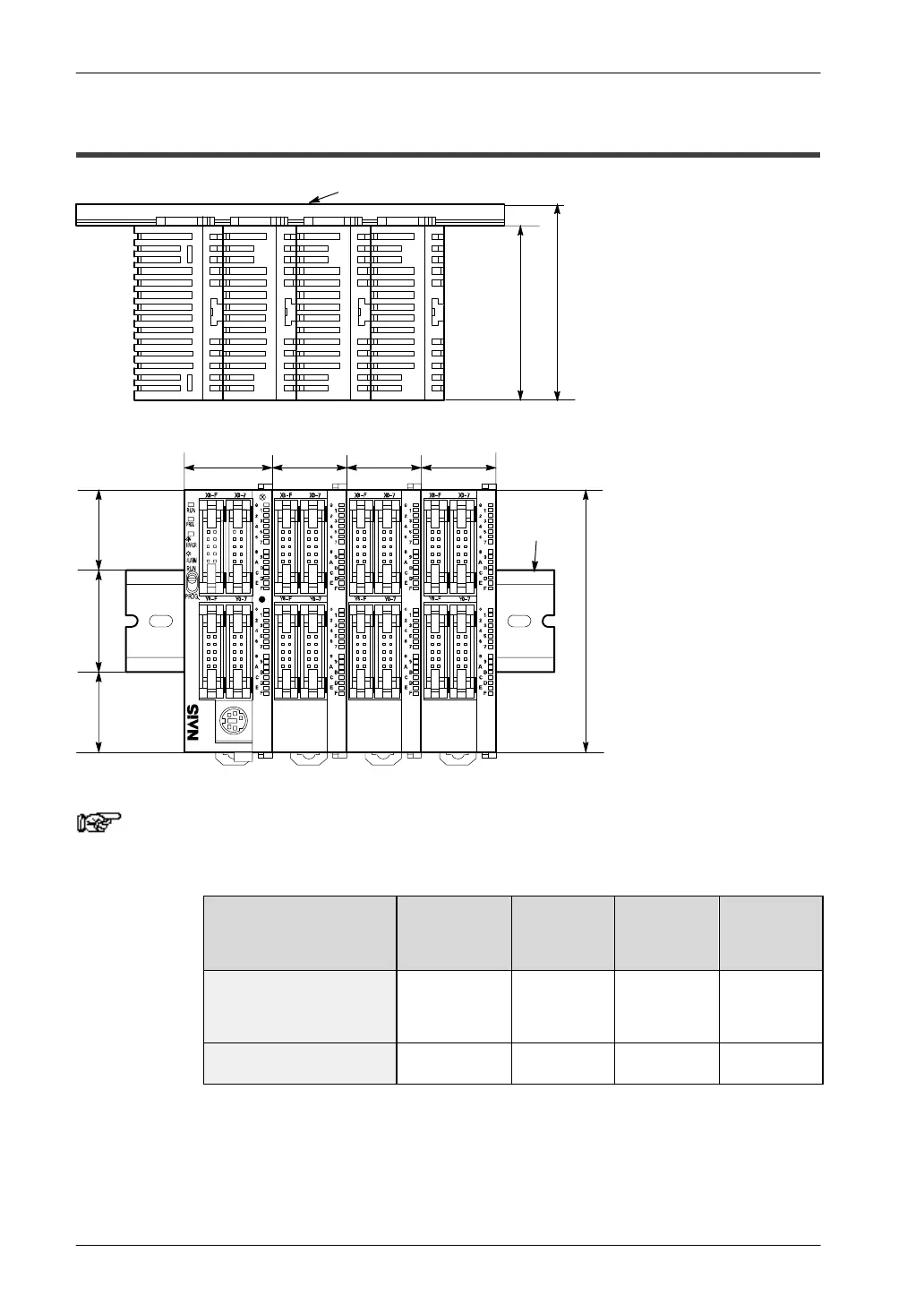

Mounting on DIN Rail
90.0/3.543
C
60.0/2.362
67.5/2.657
35.0/1.378
27.5/1.083
27.5/1.083
D
B
A
DIN rail
DIN rail
(unit: mm/in.)
Note
A + B +C + D dimensions
(Unit: mm/in.)
Control
unit type
A
(Control
unit
only)
A+B
(1 expansion
unit
connected)
A+B+C
(2 expansion
units
connected)
A+B+C+D
(3 expansion
units
connected)
C10RS, C10CRS,
C14RS, C14CRS,
C16T
, C16CT
,
C16P
, C16CP
25/0.984
50/1.969
75/2.953
100/3.937
C32T
, C32CT
,
C32P
, C32CP
30/1.181
55/2.165
80/3.150
105/4.134
190
192
