8.2 Adding Expansion Units
Procedure:

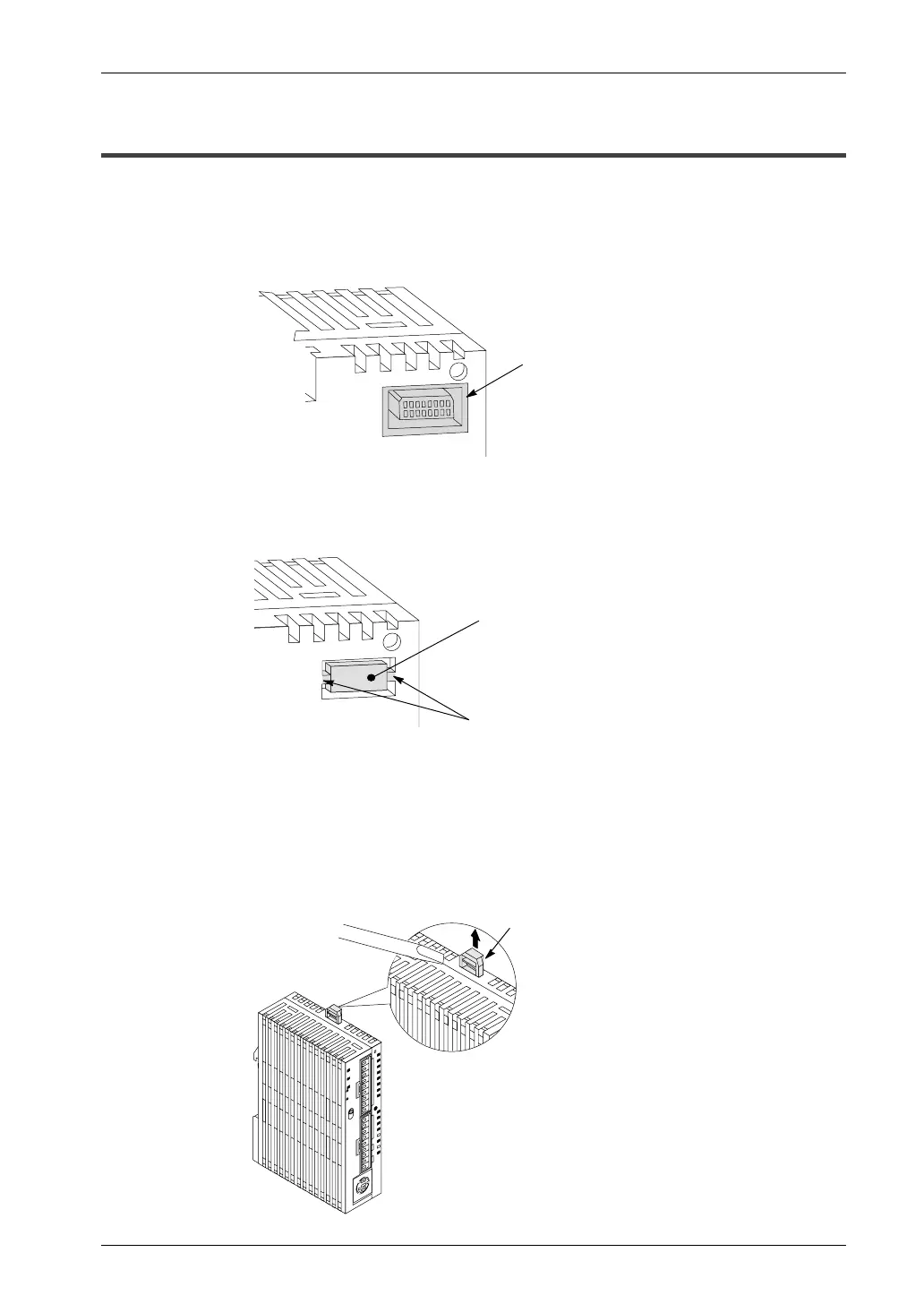

1. Peel the seal on the side of the unit so that the internal
connector is exposed.
Seal
When peeling the seal on the side of the initial lot products, the shaded
part is exposed. Cut off the shaded part with a pair of nippers or similar
tool so that the internal connector is exposed.
Cut here.
Shaded part
When removing the shaded part, use a sharp cutting object, making sure
that the shaded part is removed leaving a smooth surface. Note that
failure to remove the shaded part completely can result in damage to the
connector.
2. Raise the expansion hooks on the top and bottom sides of
the unit with a screwdriver.
Expansion hook
