FP0 HardwareInstallation
8-4
Matsushita Electric Works (Europe) AG

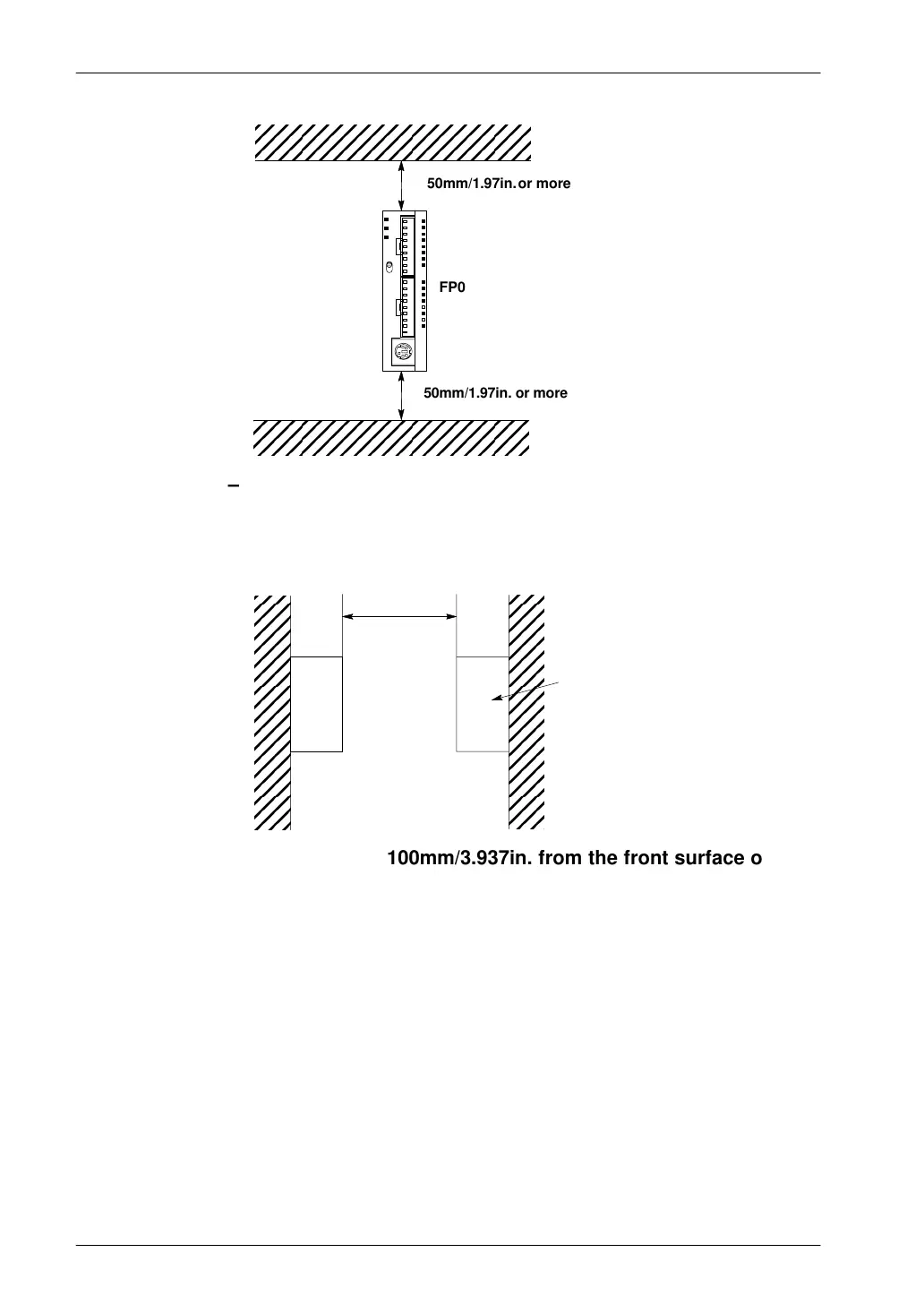

50mm/1.97in. or more
50mm/1.97in. or more
FP0
– Maintain a minimum of 100mm/3.937in. between
devices to avoid adverse affects from noise and heat
when installing a device or panel door to the front of
the FP0 unit.
100mm/3.937in.
or more
Other device or panel door
FP0
– Keep the first 100mm/3.937in. from the front surface of
the FP0 control unit open in order to allow room for
programming tool connections and wiring.
