NAiS FP Series Hardware Manual

FP0 HardwareControl Units
2-22 Matsushita Electric Works (Europe) AG

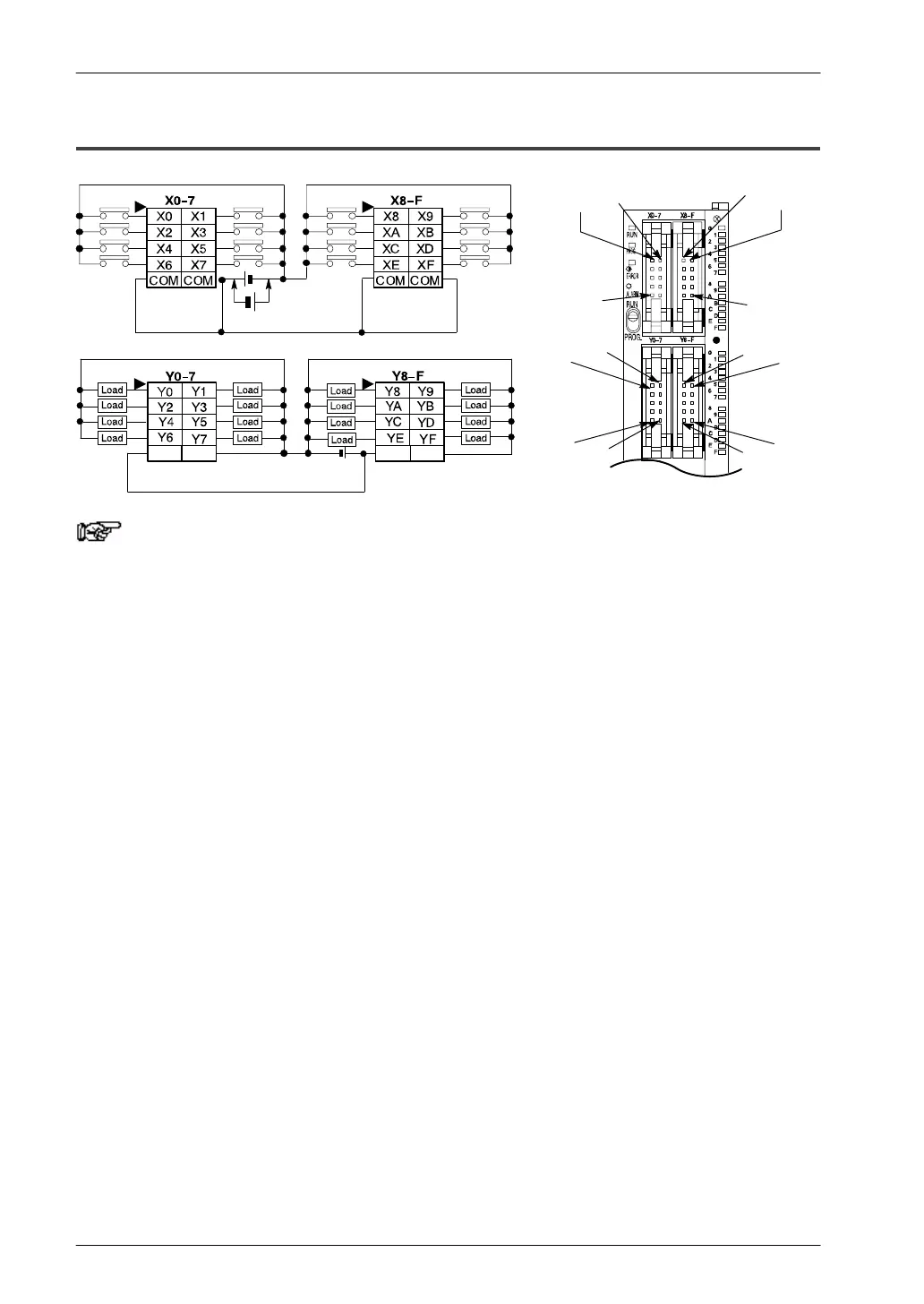

2.4.6 C32P/C32CP/T32CP
X8
Y8 Y9
X9
X0 X1
Y1Y0
COM
COM
(–)(+) (+) (–)
Inputs Inputs
Outputs Outputs
(–)
(–)(+) (+)
(see note 1)
Notes
1) Either positive or negative polarity is possible for the input
voltage supply.
2) The four COM terminals of input terminals (X0–7 and X8–F) are
connected internally, however they should be externally
connected as well.
3) The (+) terminals of output terminals (Y0–7) and output
terminals (Y8–F) are connected internally, however they
should be externally connected as well.
4) The (–) terminals of output terminals (Y0–7) and output
terminals (Y8–F) are connected internally, however they
should be externally connected as well.
