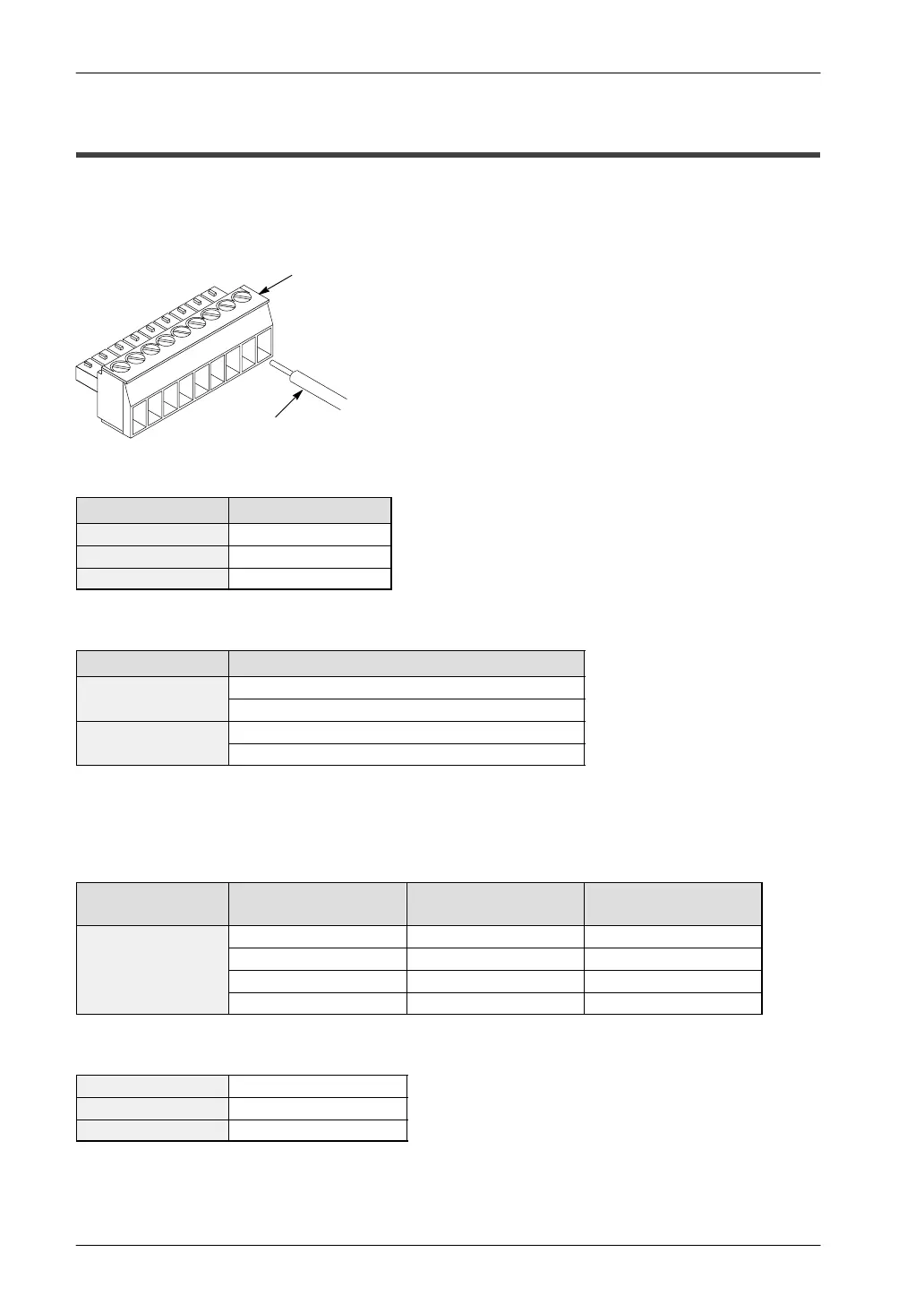

9.6 Wiring the Terminal Block Socket
A screw-down connection type terminal block socket for the terminal of the FP0 control
unit and analog I/O unit is used. The terminal block socket and suitable wires are given
below.
Terminal block socket
Suitable wire
Terminal block socket
Item Description
Manufacturer Phoenix Contact Co.
Model MC1,5/9-ST-3,5
Product number 1840434
Suitable wires (twisted wire)
Item Description
Control unit Size: AWG #24 to 16
Conductor cross-sectional area: 0.3 to 1.25mm
2
Analog I/O unit Size: AWG #28 to 16
Conductor cross-sectional area: 0.08 to 1.25mm
2
Pole terminal with a compatible insulation sleeve
If a pole terminal is being used, the following models are marketed by Phoenix Contact
Co.
Manufacturer Cross-sectional area
(mm
2
)
Size Product number
Phoenix Contact Co. 0.25 AWG #24 AI 0,25–6YE
0.50 AWG #20 AI 0,5–6WH
0.75 AWG #18 AI 0,75–6GY
1.00 AWG #18 AI 1–6RD
Pressure welding tool for pole terminals
Manufacturer Phoenix Contact Co.
Type CRIMPFOX UD6
Product number 12 04 43 6
When tightening the terminals of the terminal block socket, use a screwdriver (Phoenix
Contact Co., Product no. 1205037) with a blade size of 0.4 × 2.5. The tightening torque
should be 0.22 to 0.25Nm (2.3 to 2.5kgfcm) or less.
