NAiS FP Series Hardware Manual

FP0 HardwareExpansion I/O Units
3-20 Matsushita Electric Works (Europe) AG

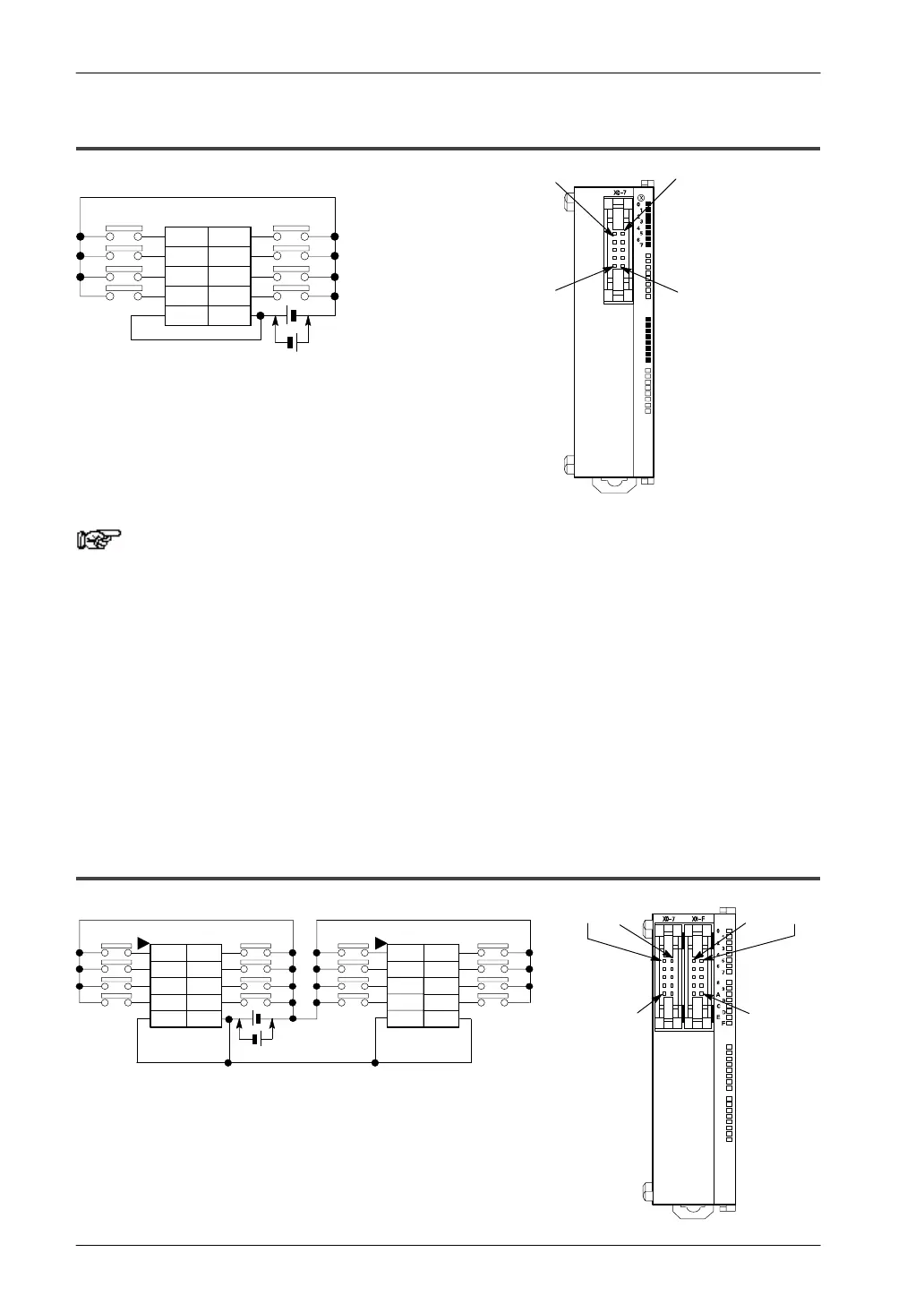

3.4.7 E8X
X20
X21
COM
COM
COM
X25
X27
X21
X23
COM
X24
X26
X20
X22
A
Inputs
(see note 1)
Notes
1) Either positive or negative polarity is possible for the input
voltage supply.
2) The two COM terminals of input terminals are connected
internally, however they should be externally connected as
well.
3) The input number given above is the input number when the
expansion input unit is installed as the first expansion unit.
The input numbers for the expansion input units will differ
depending on the location where they are installed
(see page 7 - 4).
3.4.8 E16X
X20
COM COM
X28 X29X21
Inputs
(see note 1)
X20 X21
X22 X23
X24 X25
X26 X27
COM COM
X28 X29
X2A X2B
X2C X2D
X2E X2F
COM COM
