NAiS FP Series Hardware Manual

FP0 HardwareExpansion I/O Units
3-22 Matsushita Electric Works (Europe) AG
Note
The output number given above is the output number when the
expansion output unit is installed as the first expansion unit. The
output numbers for the expansion output units will differ
depending on the location where they are installed
(see page 7 - 4).

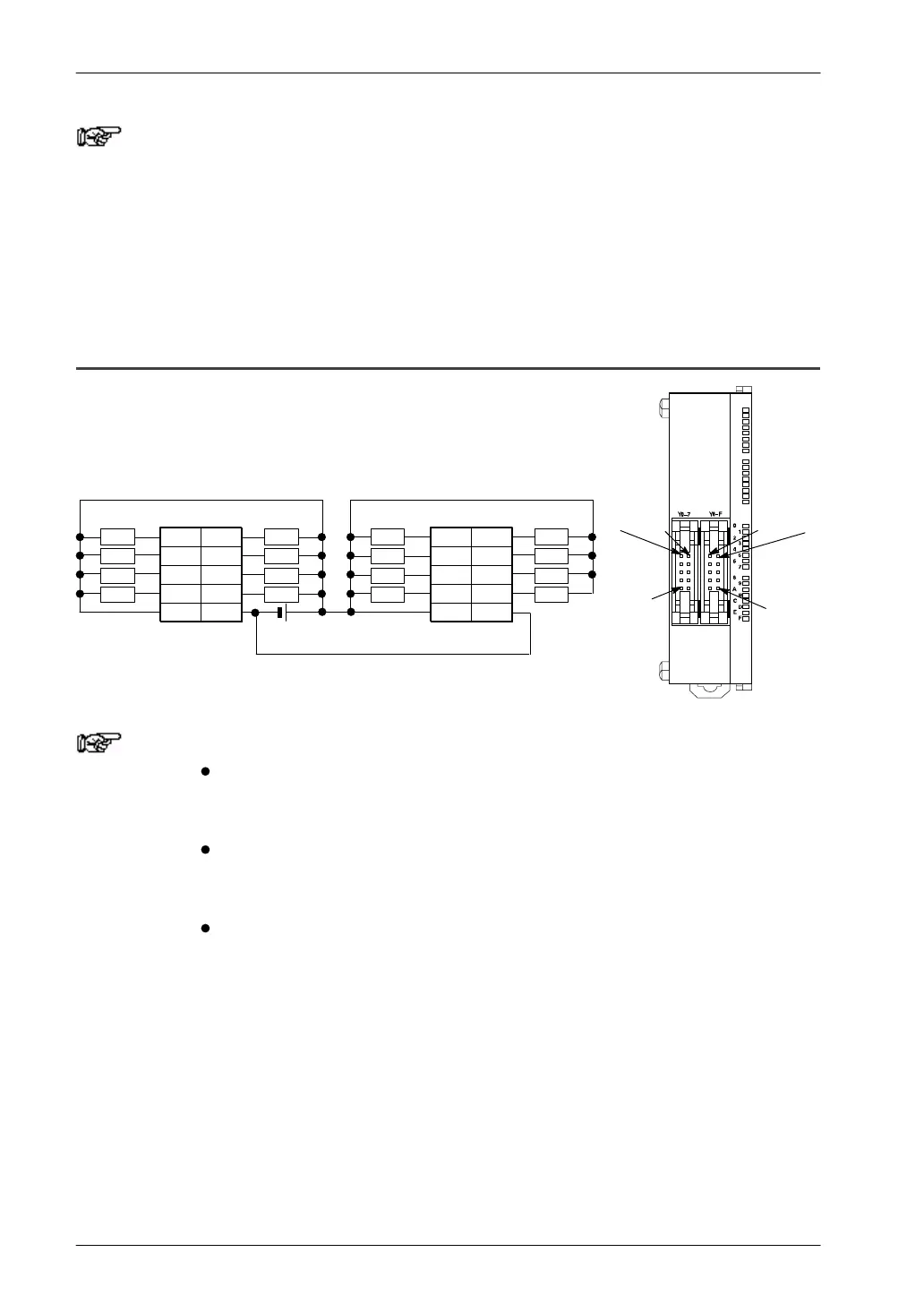

3.4.11 E16YT
Y20 Y21
Y28 Y29
(+)
(–)
Y25
Y27
Y21
Y23
(+)
Y24
Y26
Y20
Y22
(–)
Y2D
Y2F
Y29
Y2B
(+)
Y2C
Y2E
Y28
Y2A
AA
Outputs
Outputs
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
(–)
Notes
The two (+) terminals of the output terminals are connected
internally, however they should be externally connected as
well.
The two (–) terminals of the output terminals are connected
internally, however they should be externally connected as
well.
The output number given above is the output number when
the expansion output unit is installed as the first expansion
unit. The output numbers for the expansion output units will
differ depending on the location where they are installed
(see page 7 - 4).
