FP0 Hardware 8.5 Installation Using FP0 Flat Type Mounting Plate
8-9Matsushita Electric Works (Europe) AG

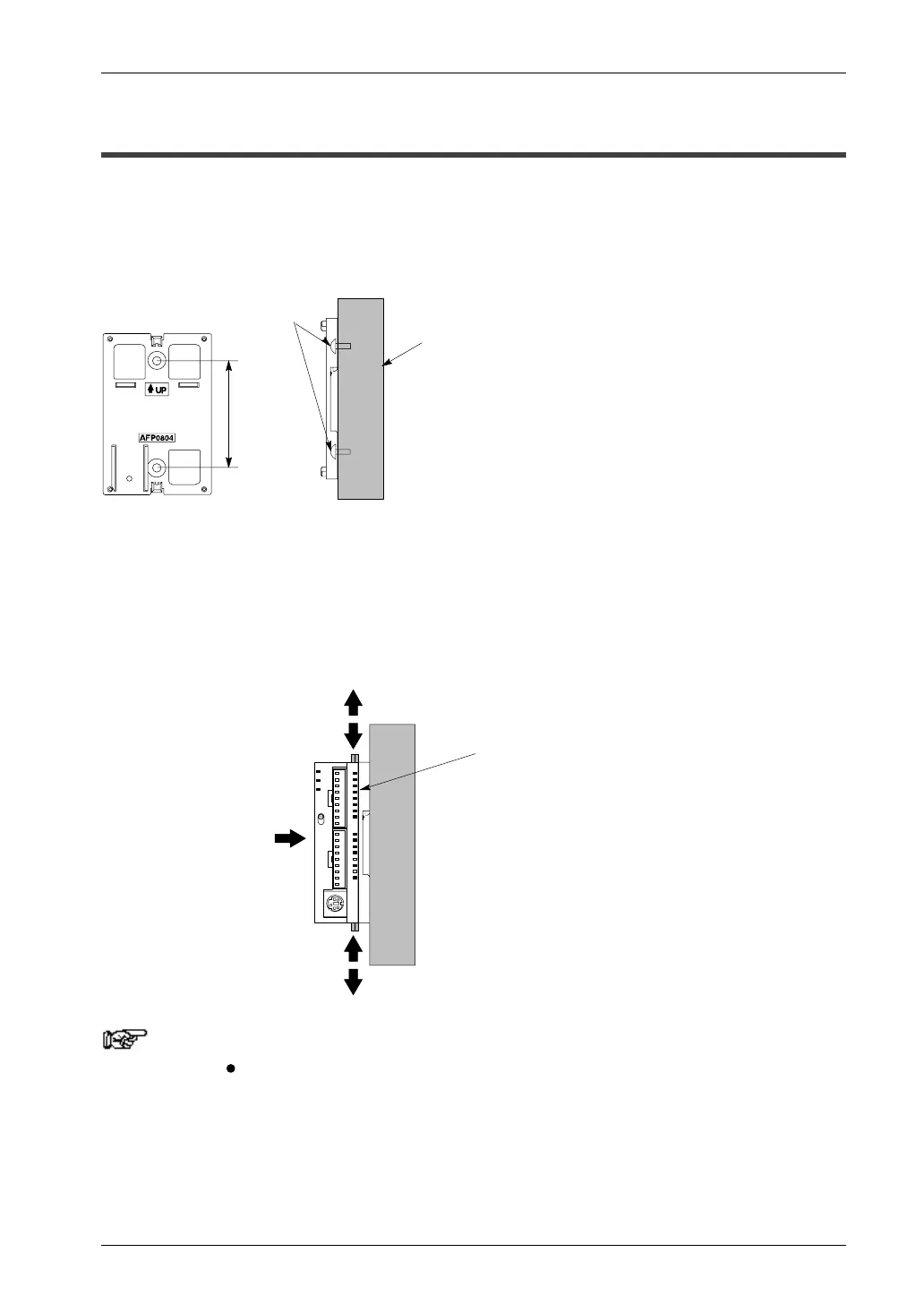

8.5 Installation Using FP0 Flat Type Mounting Plate
Use M4 size pan–head screws to attach FP0 flat type mounting plate (AFP0804) and
install according to the dimensions shown below.
For a diagram showing detailed dimensions of the FP0 flat type mounting plate,
see page D - 11.
Mounting panel
60.mm/2.362in.
screws
FP0 flat type
mounting plate
Procedure:
1. Raise the expansion hooks on the top and bottom of the
unit.
2. Install the FP0 unit on the FP0 flat type mounting plate.
3. Align the expansion hooks with the plate and press the
hooks back down.
1
1
3
2
3
FP0 flat type mounting
plate
Notes
The FP0 flat type mounting plate (AFP0804) cannot be used for
an expansion unit.
