FP0 HardwareWiring
9-4
Matsushita Electric Works (Europe) AG

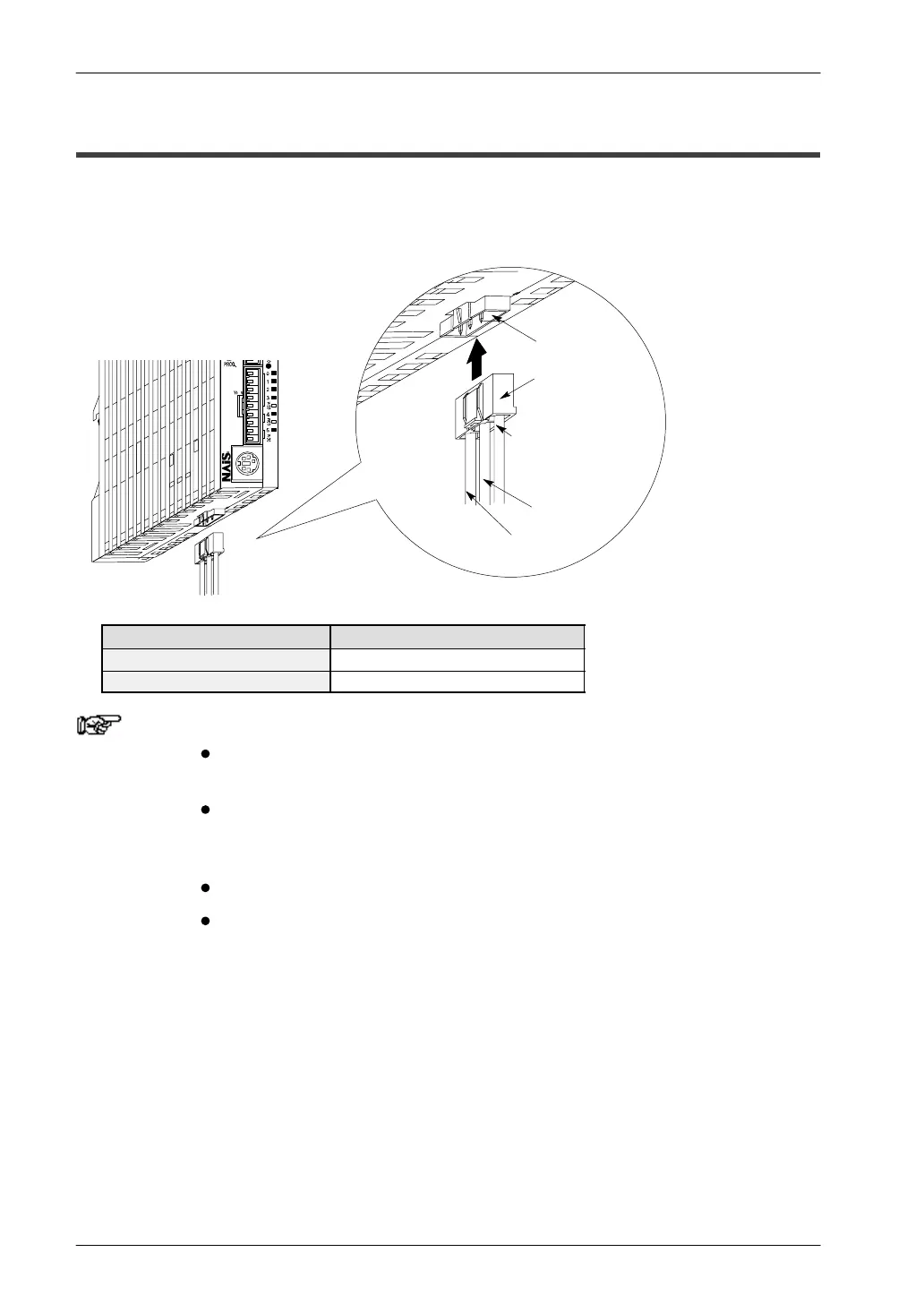

9.2 Wiring the Power Supply to the Control Unit
Use the power supply cable (AFP0581) that comes with the unit to connect the power
supply.
Power supply
cable (AFP0581)
Green:
Function earth
(Frame ground)
Blue: 0V
Brown:
24V DC
FP0 control unit
Power supply
connector
Item Descriptions
Rated voltage 24V DC
Operating voltage range 21.6 to 26.4V DC
Notes
To minimize adverse effects from noise, twist the brown and
blue wires of the power supply cable.
To protect the system against erroneous voltage from the
power supply line, use an insulated power supply with an
internal protective circuit.
The regulator on the FP0 unit is a non-insulated type.
If using a power supply device without an internal protective
circuit, always make sure power is supplied to the unit
through a protective element such as a fuse.
