NAiS FP Series Hardware Manual

FP0 Hardware 3.4 Pin Layouts
3-17Matsushita Electric Works (Europe) AG
Notes
1) Either positive or negative polarity is possible for the input
voltage supply.
2) The two COM terminals of input terminals are connected
internally, however they should be externally connected as
well.
3) The I/O number given above is the I/O number when the
expansion I/O unit is installed as the first expansion unit.
The I/O numbers for the expansion I/O units will differ
depending on the location where they are installed
(see page 7 - 4).

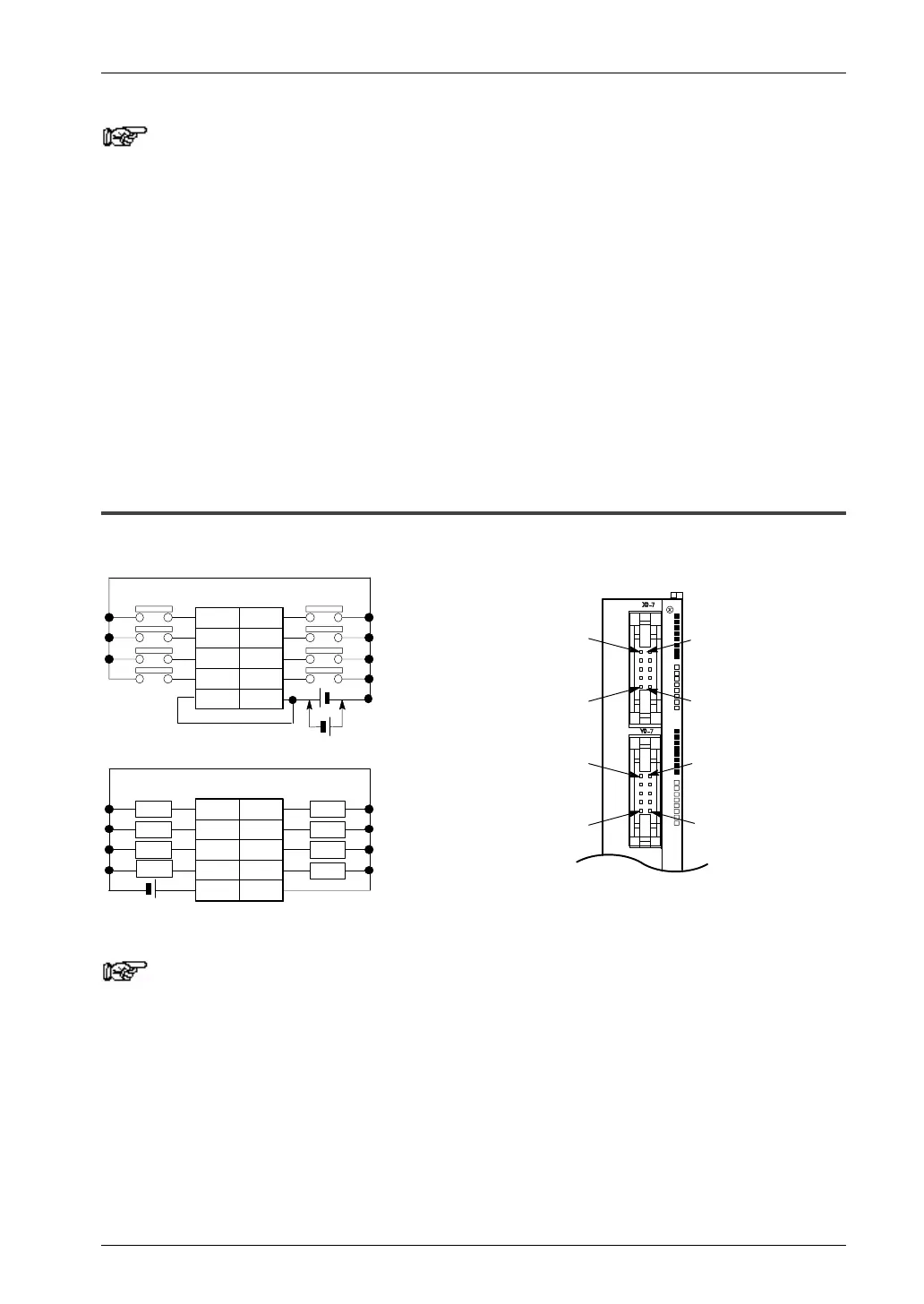

3.4.4 E16P
COM
X25
X27
X21
X23
COM
X24
X26
X20
X22
(–)
Y25
Y27
Y21
Y23
(+)
Y24
Y26
Y20
Y22
Inputs
Outputs
A
Load
Load
Load
Load
Load Load
Load
A
X21
Y21
(–)
X20
Y20
(+)
COM COM
Load
(see note 1)
Notes
1) Either positive or negative polarity is possible for the input
voltage supply.
2) The two COM terminals of input terminals are connected
internally, however they should be externally connected as
well.
3) The I/O number given above is the I/O number when the
expansion I/O unit is installed as the first expansion unit.
The I/O numbers for the expansion I/O units will differ
depending on the location where they are installed
(see page 7 - 4).
