NAiS FP Series Hardware Manual

FP0 HardwareControl Units
2-20 Matsushita Electric Works (Europe) AG

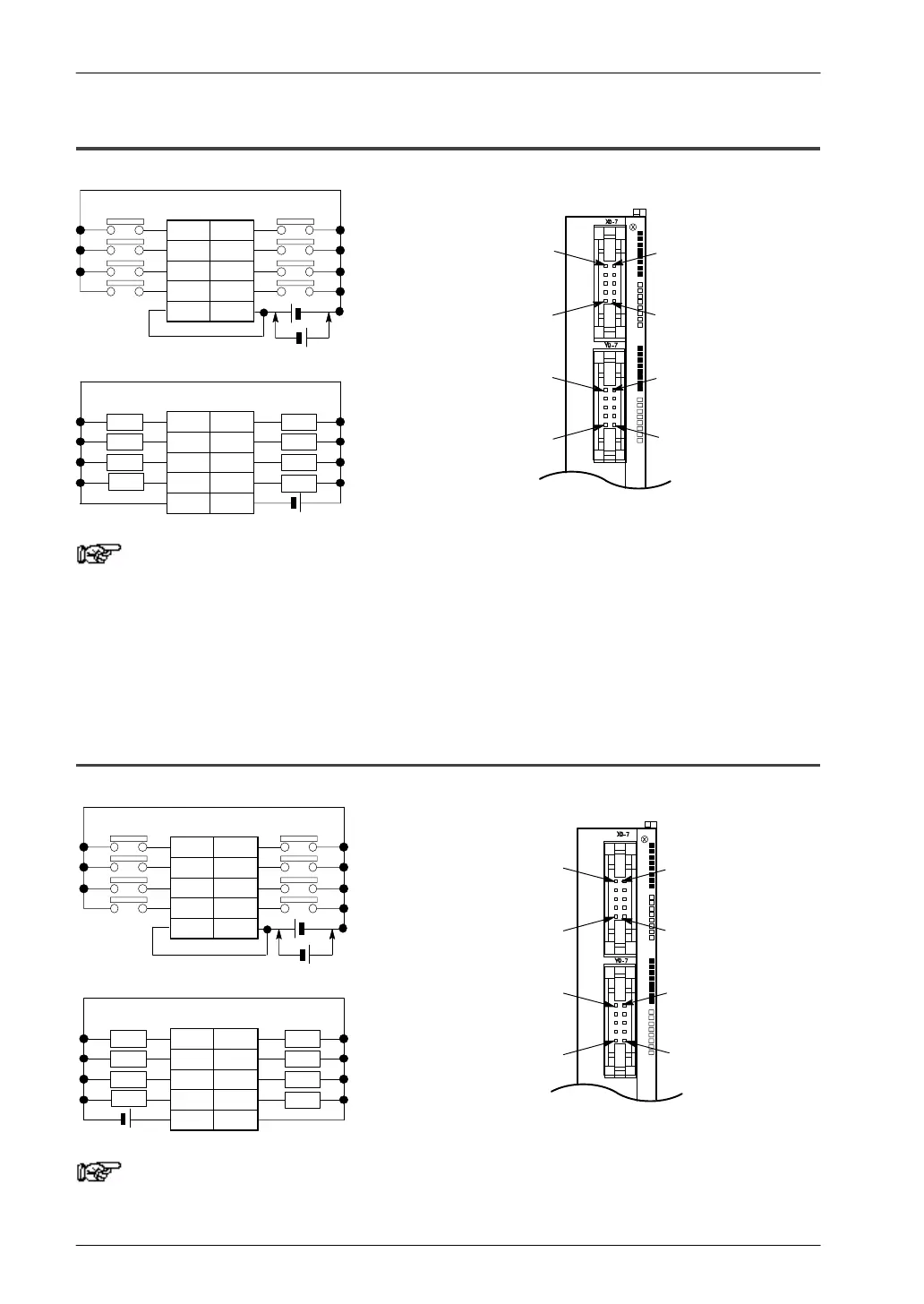

2.4.3 C16T/C16CT
COM
X5
X7
X1
X3
COM
X4
X6
X0
X2
(–)
Y5
Y7
Y1
Y3
(+)
Y4
Y6
Y0
Y2
Inputs
Outputs
X0–7
Y0–7
A
Load
Load
Load
Load
Load Load
Load
Load
A
X1
Y1
(–)
X0
Y0
(+)
COM COM
(see note 1)
Notes
1) Either positive or negative polarity is possible for the input
voltage supply.
2) The two COM terminals of input terminal (X0–7) are connected
internally, however they should be externally connected as
well.
2.4.4 C16P/C16CP
COM
X5
X7
X1
X3
COM
X4
X6
X0
X2
(–)
Y5
Y7
Y1
Y3
(+)
Y4
Y6
Y0
Y2
Inputs
Outputs
X0–7
Y0–7
A
Load
Load
Load
Load
Load Load
Load
A
X1
Y1
(–)
X0
Y0
(+)
COM COM
Load
(see note 1)
Notes
1) Either positive or negative polarity is possible for the input
voltage supply.
