NAiS FP Series Hardware Manual
4
of 1
of 1 rating
199 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
FP0 Hardware
2.4

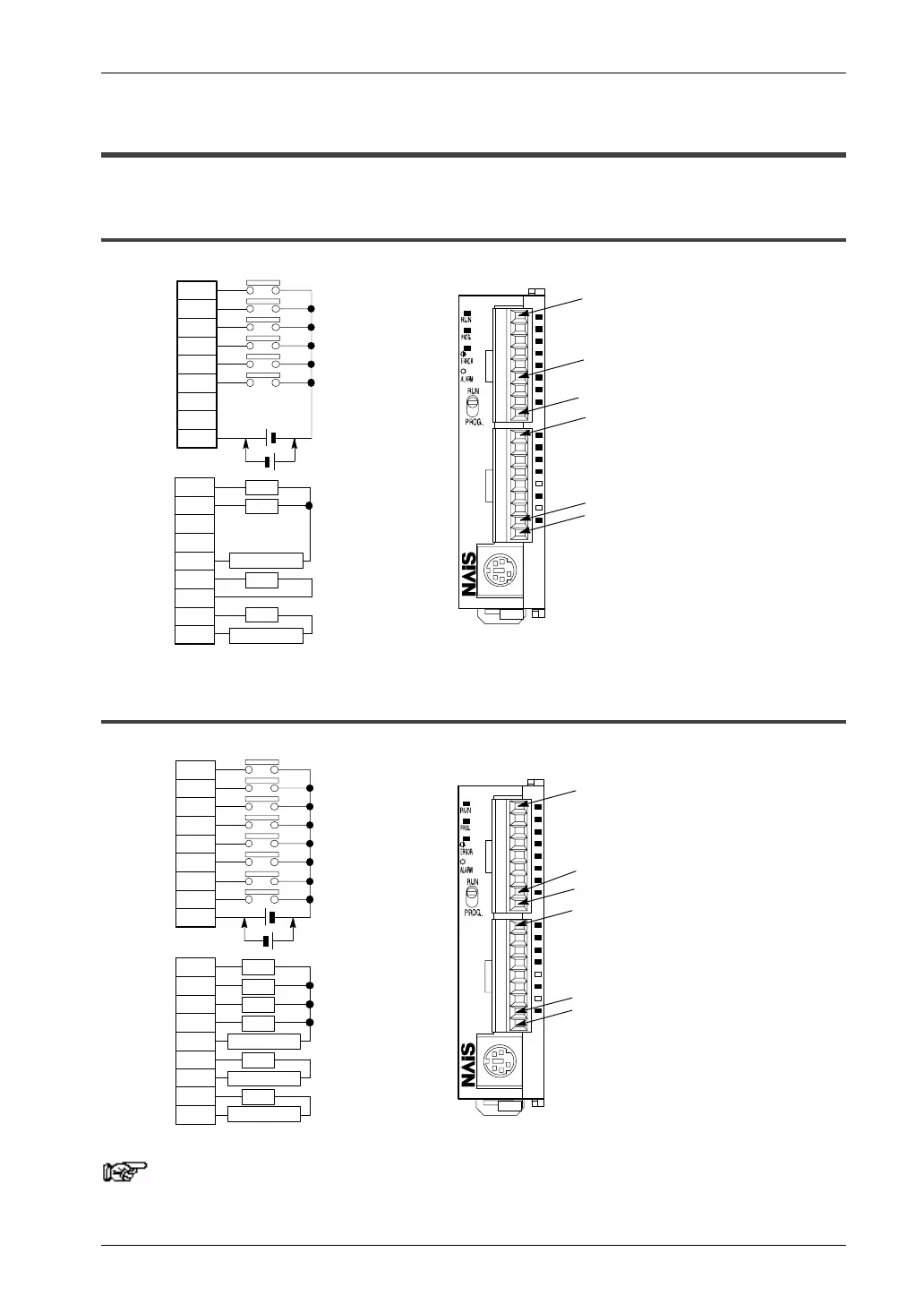

Pin Layouts
2-19
Matsushita Electric Works (Europe) AG
2.4
P
in Layouts
2.4.1
C10RS/C10CRS
Inputs
Outputs
COM
X0
X1
(NC)
(NC)
X2
X3
X4
X5
COM
Y0
Y1
COM
Y3
(NC)
(NC)
COM
Y2
Power supply
X0
–
5
Y0
–
3
X0
X5
COM
Y0
Y3
COM
Load
Load
(see
note)
Y0
–
3
Power supply
Load
Load
X0
–
5
2.4.2
C14RS/C14CRS
(see
note)
X0
X7
COM
Y0
Y5
COM
COM
X0
X1
X6
X7
X2
X3
X4
X5
COM
Y0
Y1
COM
Y5
Y2
Y3
COM
Y4
Inputs
Outputs
X0
–
7
Y0
–
5
Power supply
Load
Load
Load
Load
Load
Load
Power supply
Power supply
X0
–
7
Y0
–
5
Note
Either
positive or negative polarity is possible for the input
voltage supply
.
39
41
Table of Contents
Default Chapter
6
Table of Contents
6
Chapter 1 Overview
12
Control Units
13
Expansion Units
14
Expansion I/O Units
14
Intelligent Unit and Link Unit
15
FP0 Power Supply Unit
16
Expansion with Units
17
Combinating Units
18
Programming Tools
20
Chapter 2 Control Units
22
Parts and Terminology
23
Status Indicator Leds
25
Mode Switch
25
Tool Port
25
Specifications
26
General Specifications
26
Weight
26
Current Consumed by the Control Unit
27
Input Specifications
32
Output Specifications
34
Internal Circuit Diagram
36
Transistor Output Type
37
C10Rs/C10Crs
40
C14Rs/C14Crs
40
C16T/C16Ct
41
C16P/C16Cp
41
C32T/C32Ct
42
C32P/C32Cp/T32Cp
43
Chapter 3 Expansion I/O Units
45
Expansion Input Units
45
Expansion Output Units
55
Pin Layouts
58
E8Rs
58
E16Rs
59
E16T
59
E16P
60
E32T
61
E32P
62
E8X
63
E16X
63
E8Yt
64
E8Yp
64
E16Yt
65
E16Yp
66
Chapter 4 Analog I/O Unit
68
Parts and Terminology
69
Analog Mode Switch Setting
70
Analog I/O Terminal
71
Specifications
72
General Specifications
72
Analog Input Specifications
72
Analog Output Specifications
74
A/D Conversion Characteristics
76
D/A Conversion Characteristics
79
Wiring
80
Analog Input Wiring
80
Analog Output Wiring
81
Boosting the Precision of the Thermocouple Range
83
Averaging Function
84
Averaging for Voltage Ranges and Current Ranges
84
Averaging for a Thermocouple Range
85
Chapter 5 FP0 I/O Link Unit (MEWNET-F)
89
Operating Condition Display Leds
89
Station Number Selection Switches
90
Operation Mode Selection Switches
90
Precautions for Handling
91
Specifications
92
General Specifications
92
Performance Specifications
92
Terminal Pin Layout
94
Communication Line Wiring Diagram
94
Related Product Names and Numbers
95
Using the FP0 I/O Link Unit
96
Parallel Versus Serial Connection
96
FP0 Connections
97
Remote I/O System Communication Error Flag (FP0)
98
I/O Number
98
Chapter 6 Power Supply Unit
102
Power Supply Unit, FP0-PSA2
103
Specifications
104
Chapter 7 I/O Allocation
106
I/O Number
107
Control Unit
108
Expansion I/O Unit
109
Analog I/O Unit
110
Link Unit
111
Chapter 8 Installation
112
Important Notes
113
Adding Expansion Units
116
Attachment to DIN Rails
118
Installation Using FP0 Slim Type Mounting Plate
119
Installation Using FP0 Flat Type Mounting Plate
120
Chapter 9 Wiring
122
Safety Instructions
123
Interlock Circuit
123
Emergency Stop Circuit
123
Start up Sequence
123
Momentary Power Failures
123
Protecting Power Supply and Output Sections
124
Wiring the Power Supply to the Control Unit
125
Grounding
127
Input Wiring
128
Sensors
128
LED-Equipped Reed Switch
129
Two-Wire Type Sensor
129
LED-Equipped Limit Switch
129
Output Wiring
131
Protective Circuit for Inductive Loads
131
Precautions for Using Capacitive Loads
132
Wiring the Terminal Block Socket
133
Wiring the MIL Connector
135
Contact Puller Pin for Rewiring
136
Wiring the RS232C Port
137
Chapter 10 Trial Operation
140
10.1 before Turning on the Power
141
10.2 Turning the Power on
142
Chapter 11 Self-Diagnostic and Troubleshooting
144
11.1 Self-Diagnostic Function
145
Allowing Duplicated Output
145
Continuing after an Operation Error
145
11.2 Troubleshooting
146
ERROR/ALARM LED Is on
148
All Leds Are off
148
Diagnosing Output Malfunction
149
Communication Error with Programming Software
151
Program Mode Does Not Change to RUN
152
11.3 Error Codes
153
Total-Check Function
153
Syntax Check Error
153
Self-Diagnostic Error
153
Syntax Check Error Codes
154
Self-Diagnostic Error Codes
155
Appendix A System Registers
156
Types of System Registers
157
Checking and Changing System Register Settings
157
Precautions When Setting System Registers
158
Content of System Register Settings
159
Tables of System Registers
162
Appendix B Special Internal Relays
170
Special Internal Relays
171
Appendix C Special Data Registers
174
Special Data Registers
174
Appendix D Dimensions
184
C10Rs-10Crs-14Rs-14Crs/E8Rs-16Rs
185
C16T-16Ct-16P-16Cp/E16T-16P-8X-8Yt-8Yp
186
C32T-32Ct-32P-32Cp/E32T-32P-16X-16Yt-16Yp
187
Analog I/O Unit
188
I/O Link Unit
189
Power Supply Unit
190
Mounting on DIN Rail
191
FP0 Slim Type Mounting Plate
192
Dimensions When Using FP0 Slim Type Mounting Plate
193
FP0 Flat Type Mounting Plate
194
