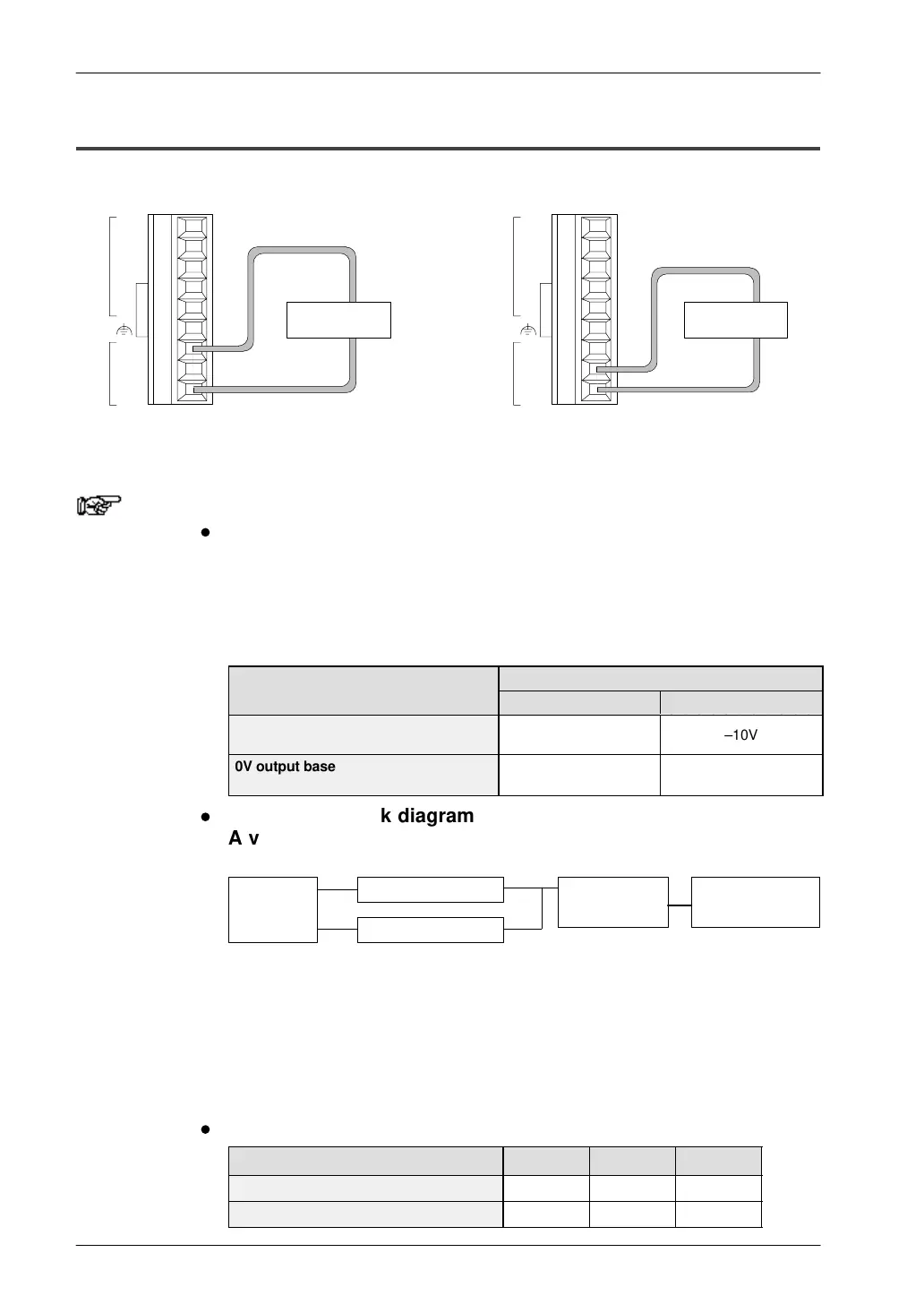

4.5.2 Analog Output Wiring
V 0
I 0
V 1
I 1
COM
V
I
COM
IN
OUT
Connect output instrument between OUT/I and
OUT/COM terminal.
Voltage output
Output
instrument
Connect output instrument between OUT/V and
OUT/COM terminal.
Current output
V 0
I 0
V 1
I 1
COM
V
I
COM
IN
OUT
Output
instrument
Notes
Always make sure the switch settings and the terminal base
wiring connections match. For output, in particular, if the
settings and the wiring connections are wrong, the control
unit will output values like those shown below, even in the
PROG. mode. (For information on switch settings,
see page 4-3)
Item
Output terminal (OUT)
Current terminal (I) Voltage terminal (V)
0mA output based on current range
setting
0mA
ÁÁÁÁÁÁ
ÁÁÁÁÁ
Á
ÁÁÁÁÁÁ
–10V
0V output based on voltage range
setting
10mA
ÁÁÁÁÁÁ
ÁÁÁÁÁÁ
0V
DA internal block diagram
A voltage amplifier and current amplifier are connected in
parallel to a single DA converter IC.
Terminal
DA converter
Microcomputer
Voltage amplifier
Current amplifier
Also, the digital value that is sent to the DA converter IC to
achieve a voltage output of 0V is different from that input to
the DA converter IC to achieve a current output of 0mA.
As a result, if the voltage output is set to 0V, 10mA is output
from the current output terminal, and conversely, if the current
output is set to 0mA, –10V is output from the voltage output
terminal.
For voltage output
Value of WY K–2000 K0 K2000
Digital value to DA converter 0 2047 4095
Analog output –10V 0V +10V
