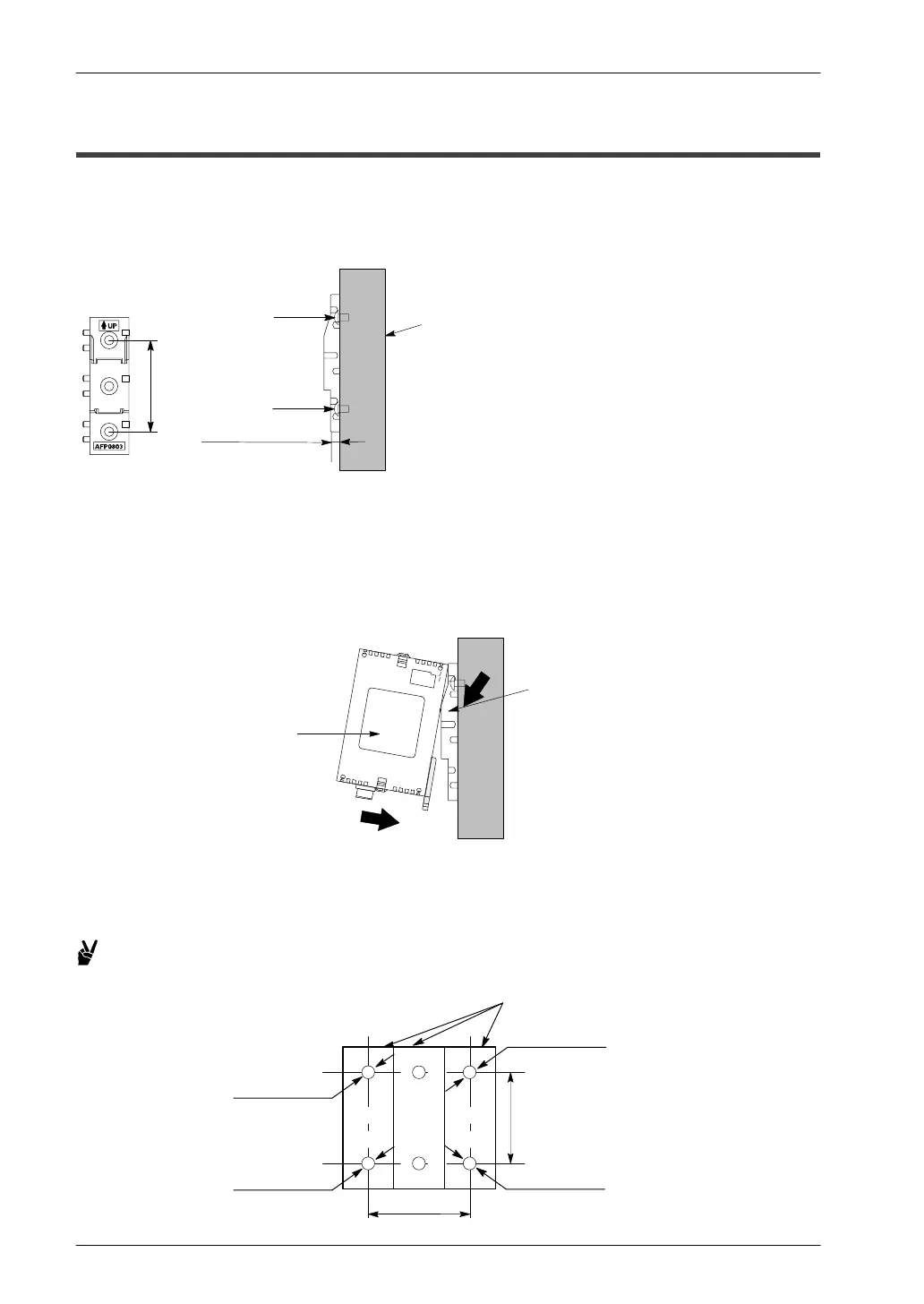

8.4 Installation Using FP0 Slim Type Mounting Plate
Use M4 size pan–head screws for attachment of FP0 slim type mounting plate
(AFP0803) to mounting panel. For a diagram showing detailed dimensions of the FP0
slim type mounting plate, see page D - 9.
6.0mm/0.236in.
Mounting panel
60mm/2.362in.
FP0 slim type
mounting plate
Screw
Screw
Procedure:
1. Fit the upper hook of the FP0 unit onto the FP0 slim type
mounting plate.
2. Without moving the upper hook, press on the lower hook to
fit the FP0 unit into position.
1
FP0 unit
2
FP0 slim type
mounting plate
When using an expansion unit, tighten the screws after joining all of the FP0 slim type
mounting plate to be connected. Tighten the screws at each of the four corners.
Example: Two expansion units
60.0/2.362
50.0/1.968
Dia. 5.0/0.197
Dia. 5.0/0.197
(unit: mm/in.)
Dia. 5.0/0.197
Dia. 5.0/0.197
FP0 slim type mounting plate
