FP0 HardwareWiring
9-14
Matsushita Electric Works (Europe) AG
9.7 Wiring the MIL Connector
The housings, semi-cover and pressure welders listed below come supplied with the
FP0. Use the wires given below. Also, use the required pressure connection tools for
connecting the wires.
Supplied connector
Unit Type/Order number C16/E16 C32/E32
C16/C32 Housing 10-pin type only 2 pieces 4 pieces
E16/E32
Semi-cover AXW61001 2 pieces 4 pieces
Welder (contact) AXW7221 5-pin × 4 5-pin × 8
Suitable wires (twisted wire)
Size Conductor cross-sectional area Insulation thickness Rated current
AWG#22 0.3mm
2
AWG#24 0.2mm
2
dia. 1.5 to dia. 1.1 3A
Pressure connection toolorder number: AXY52000
The wire end can be directly crimped without removing the wire’s insulation, saving
labor.

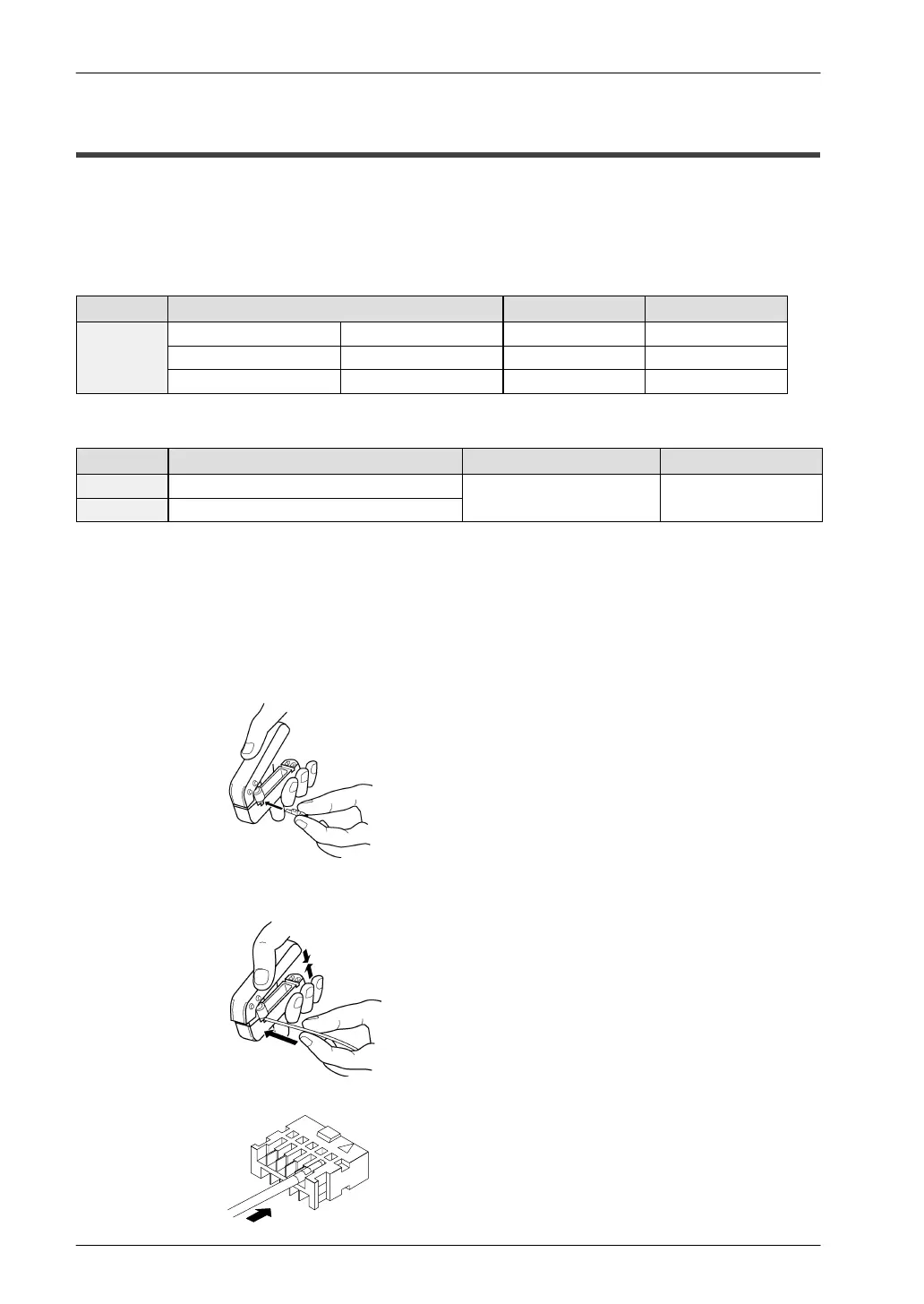

Procedure:
1. Bend the welder (contact) back from the carrier, and set it in
the pressure connection tool.
2. Insert the wire without removing its insulation until it stops,
and lightly grip the tool.
3. After press-fitting the wire, insert it into the housing.
