FP0 Hardware 8.1 Important Notes
8-3Matsushita Electric Works (Europe) AG

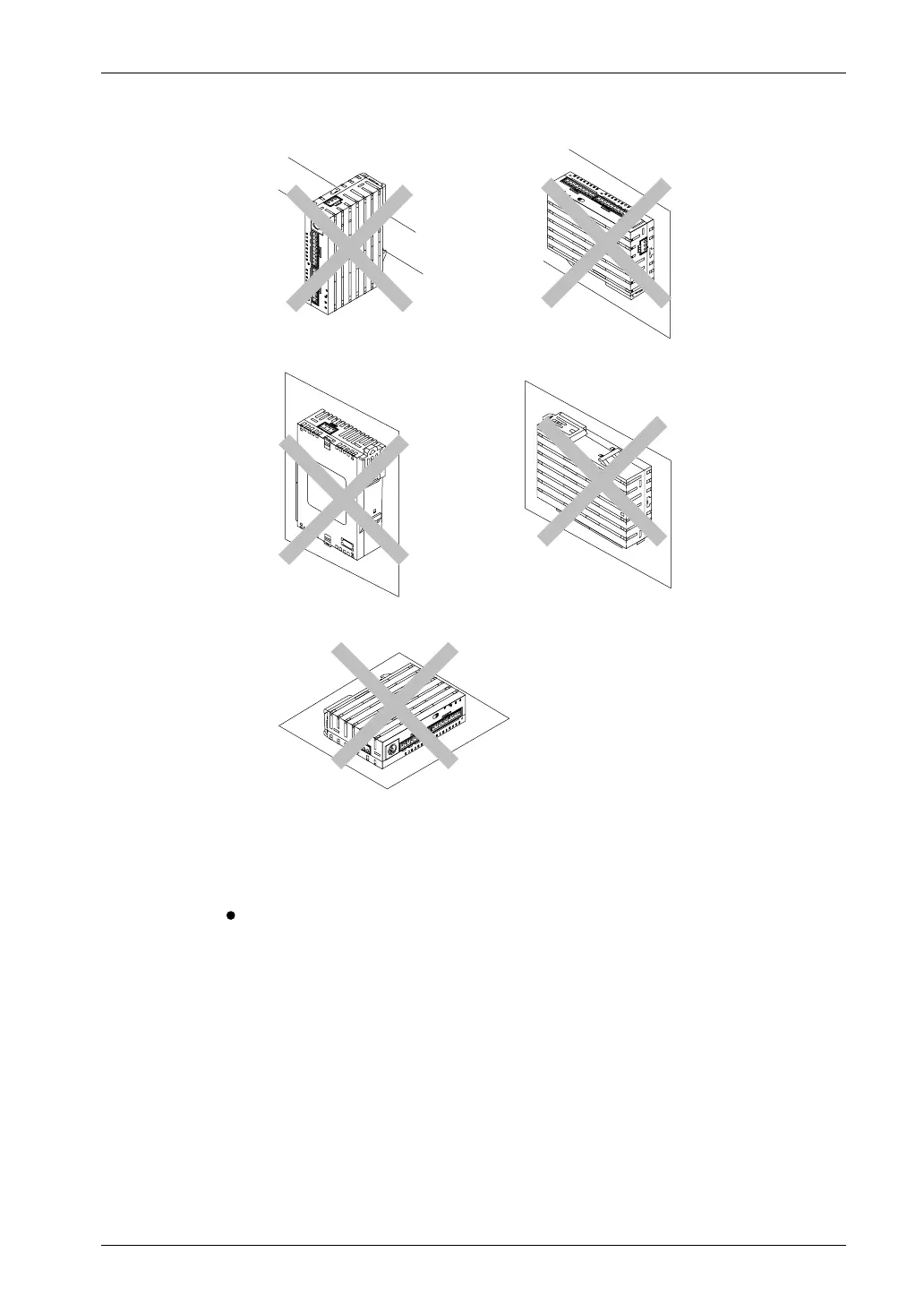

– Do not install the FP0 control unit as shown below.
Upside-down
I/O connectors or I/O terminals on top
Installation which blocks
the air duct
Installations such that the I/O
connectors or I/O terminals face down
Horizontal installation of the unit
– Do not install the unit above devices which generate
heat such as heaters, transformers or large scale
resistors.
Installation space
– Leave at least 50mm/1.97in. of space between the
wiring ducts of the unit and other devices to allow
heat radiation and unit replacement.
