FP0 Hardware 9.8 Wiring the RS232C Port
9-17Matsushita Electric Works (Europe) AG

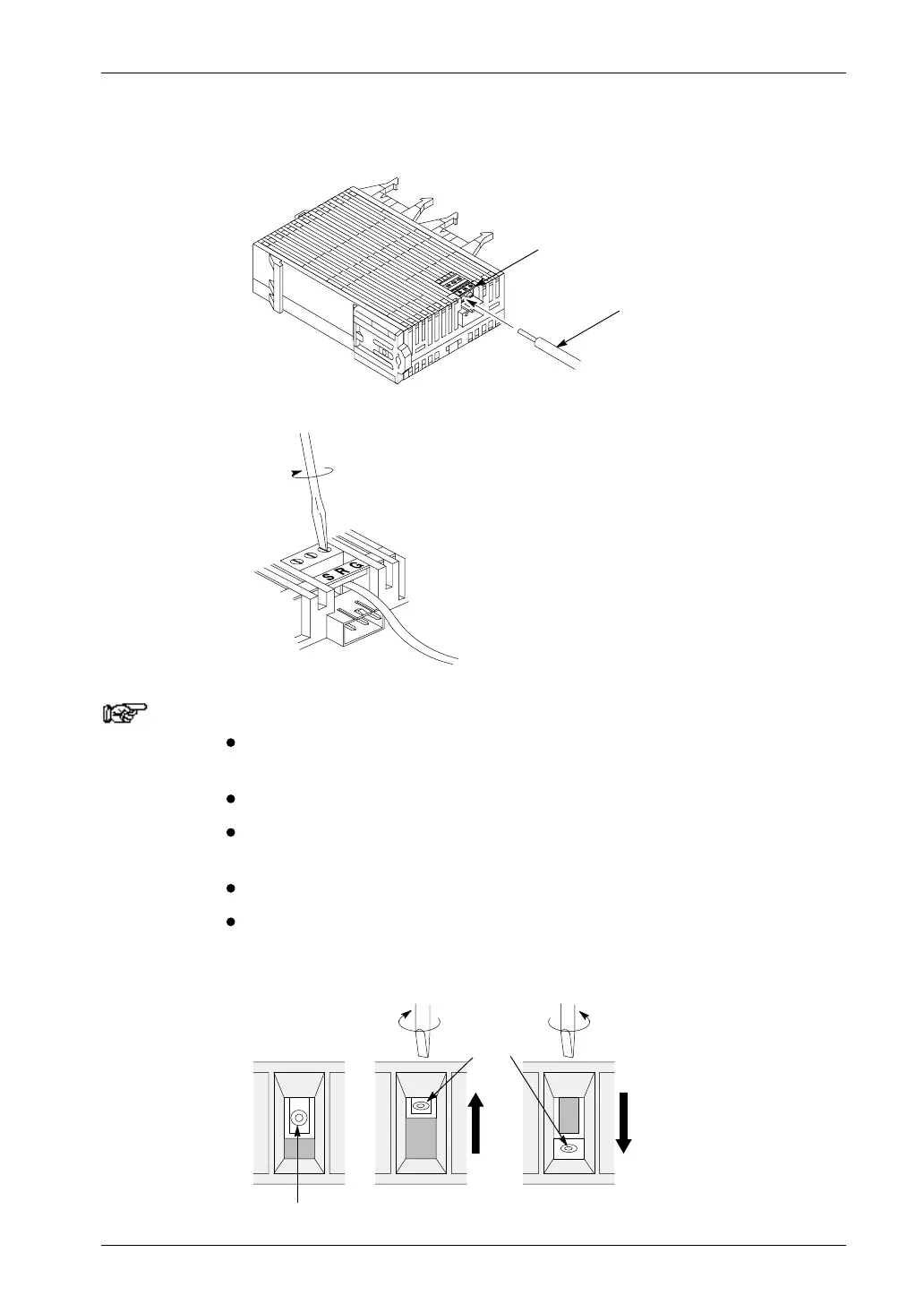

2. Insert wire into the RS232C port until it contacts the back of
the RS232C port.
RS232C port
Suitable wire
3. Tighten the screw clockwise to fix the wire in place.
Clockwise
Notes
When removing the wire’s insulation, be careful not to scratch
the core wire.
Do not twist the wires to connect them.
Do not solder the wires to connect them. The solder may
break due to vibration.
After wiring, make sure stress is not applied to the wire.
In the RS232C port terminal construction, if the wire closes
upon counter-clockwise rotation, the connection is faulty.
Disconnect the wire, check the terminal hole, and then
re-connect the wire.
Clockwise Counter
clockwise
Wire
Wire
CORRECT INCORRECT
To Next Page
