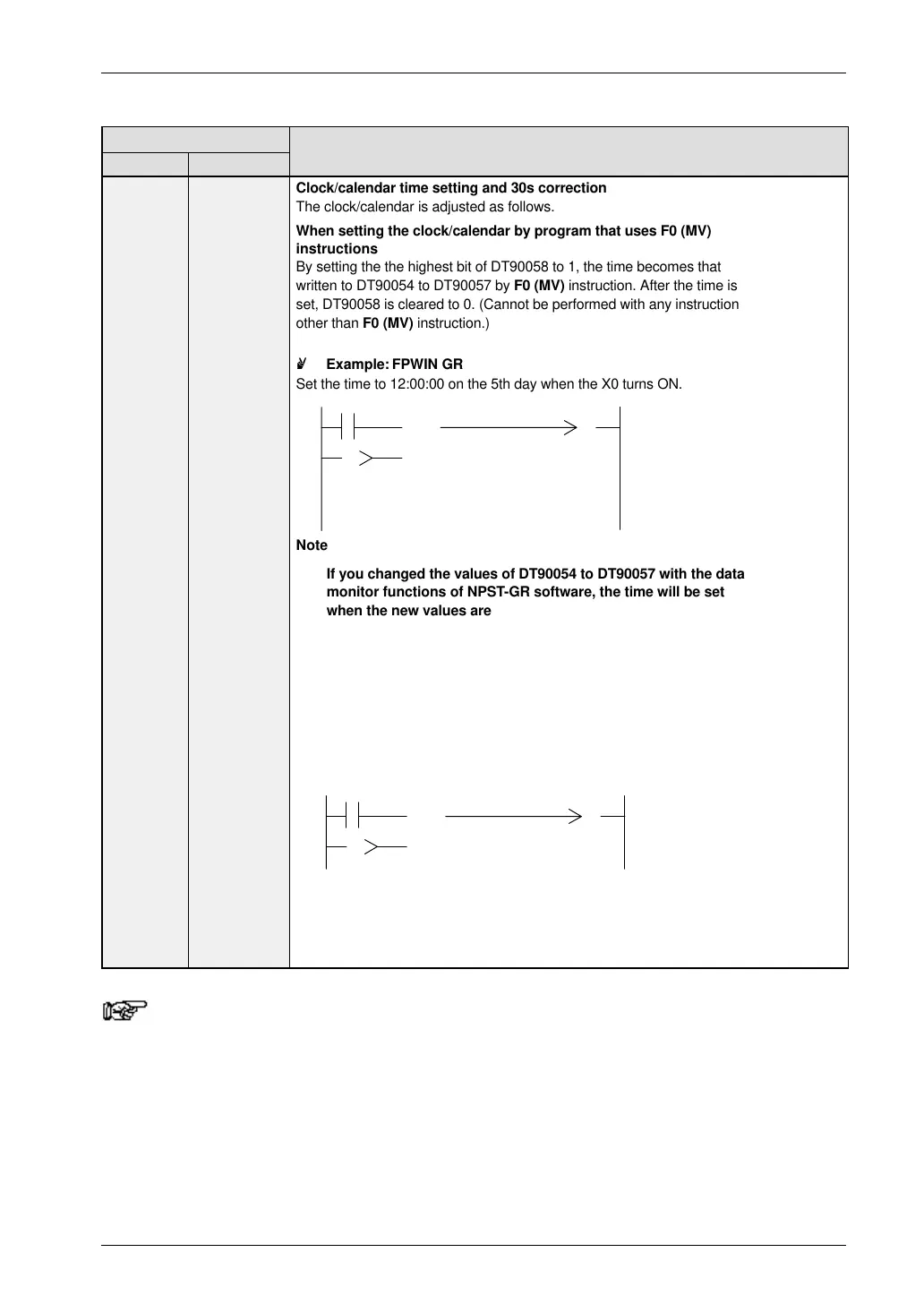

Clock/calendar time setting and 30s correction

The clock/calendar is adjusted as follows.

When setting the clock/calendar by program that uses F0 (MV)

instructions

By setting the the highest bit of DT90058 to 1, the time becomes that

written to DT90054 to DT90057 by F0 (MV) instruction. After the time is

set, DT90058 is cleared to 0. (Cannot be performed with any instruction

other than F0 (MV) instruction.)

 Example: FPWIN GR

Set the time to 12:00:00 on the 5th day when the X0 turns ON.

Note

If you changed the values of DT90054 to DT90057 with the data

monitor functions of NPST-GR software, the time will be set

when the new values are written. Therefore, it is unnecessary to

write to DT90058.

When the correcting times less than 30 seconds

By setting the lowest bit of DT90058 to 1, the value will be moved up or

down and become exactly 0 seconds. After the correction is completed,

DT90058 is cleared to 0.

 Example: FPWIN GR

Correct to 0 seconds with X0 turns ON

At the time of correction, if between 0 and 29 seconds, it will be moved

down, and if the between 30 and 59 seconds, it will be moved up. In the

example above, if the time was 5 minutes 29 seconds, it will become 5

minutes 0 second; and, if the time was 5 minutes 35 seconds, it will

become 6 minutes 0 second.

( DF )

[ F0 MV, H 0, DT90054 ]

[ F0 MV, H8000, DT90058 ]

[ F0 MV, H 512, DT90055 ]

( DF )

[ F0 MV, H 1, DT90058 ]

Correct to 0

second.

Inputs 0 minutes. . .

and 0 seconds

Inputs 12th hour. . .

5th day

Sets the time. . .
