NAiS FP Series Hardware Manual

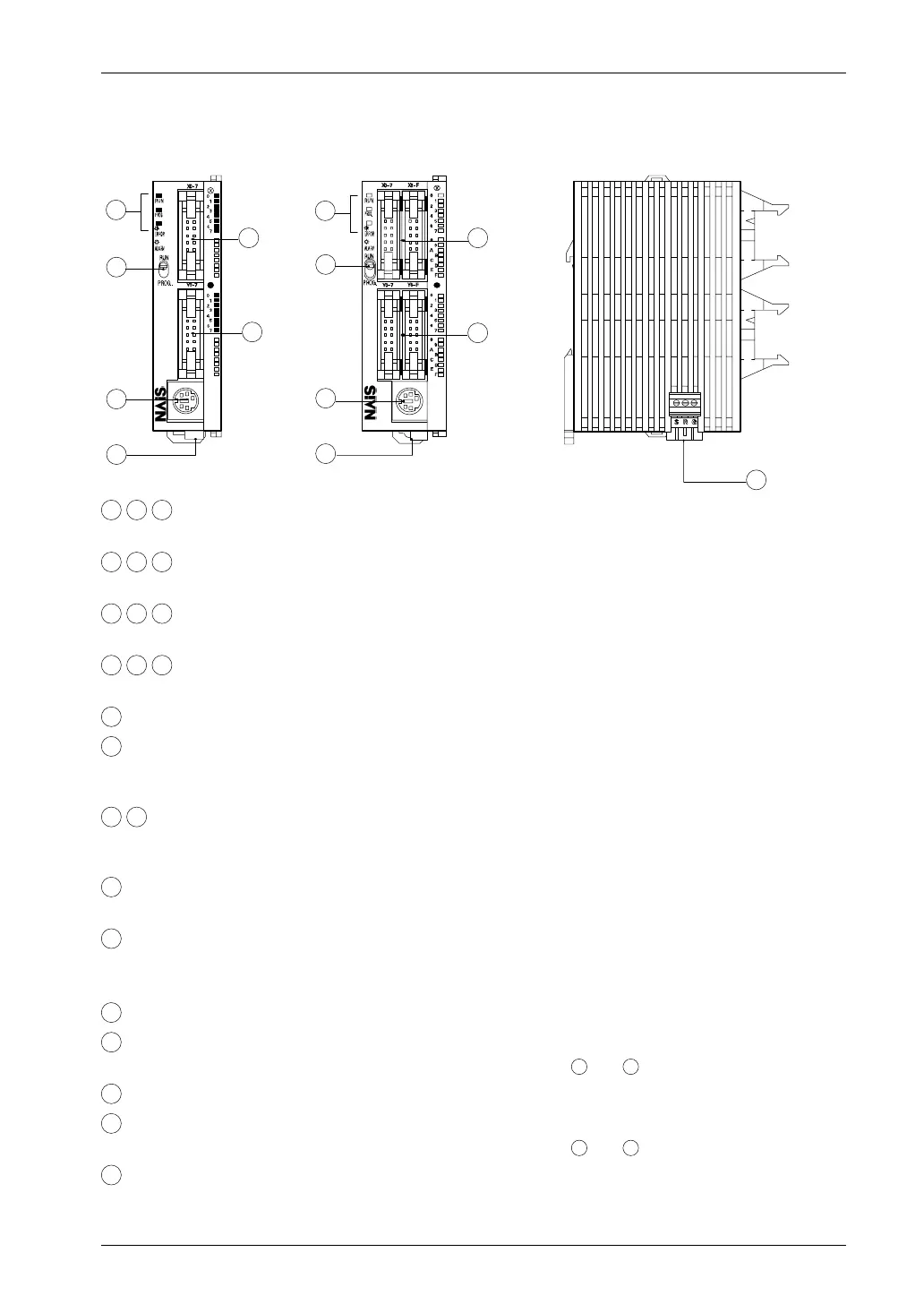

FP0 Hardware 2.1 Parts and Terminology
2-3Matsushita Electric Works (Europe) AG
C16T/C16CT
C16P/C16CP
C32T/C32CT
C32P/C32CP/T32CP
Control unit with RS232C port
11
12
13
14
15
16
17
18
19
20
21
22
23
1 11 17
Status indicator LEDs
display the operation mode and error statuses (see page 2-4).
2 12 18
Mode switch
changes the operation mode (see page 2-4).
3 13 19
Tool port (RS232C)
is used to connect a programming tool (see page 2-4).
4 14 19
Power supply connector
Supply 24 V DC. It is connected using the power supply cable (AFP0581) that comes with the unit.
5
Input terminal (9-pin)
6
Output terminal (9-pin)
24 25 26 27
The input and output terminals use a terminal block socket made by Phoenix Contact Co. (product
number: 1840434) (see page 9 - 12).
7 10
Expansion hook
is used to secure expansion units. The hook is also used for installation on FP0 flat type mounting
plate (AFP0804).
8
Expansion connector
connects an expansion unit to the internal circuit of the control unit (see page 8 - 5).
9
DIN rail attachment lever
28 29 30 31 32
allows simple attachment to a DIN rail.
The lever is also used for installation on FP0 slim type mounting plate (AFP0803).
15
Input connector (10-pin)
16
Output connector (10-pin)
33 34 35 36
Use a MIL type connector for the input and output connectors (
15
and
16
) (see page 9 - 14).
21
Input connectors (10-pin  2)
22
Output connectors (10-pin  2)
Use a MIL type connector for the input and output connectors (
21
and
22
) (see page 9 - 14).
23
RS232C port
Use this port to connect to devices with an RS232C port, such as an I.O.P., a bar code reader, or an
image checker, enabling data input and output. (see page 9 - 16 ).
