VDSL
a Select VDSL and click the Next button.

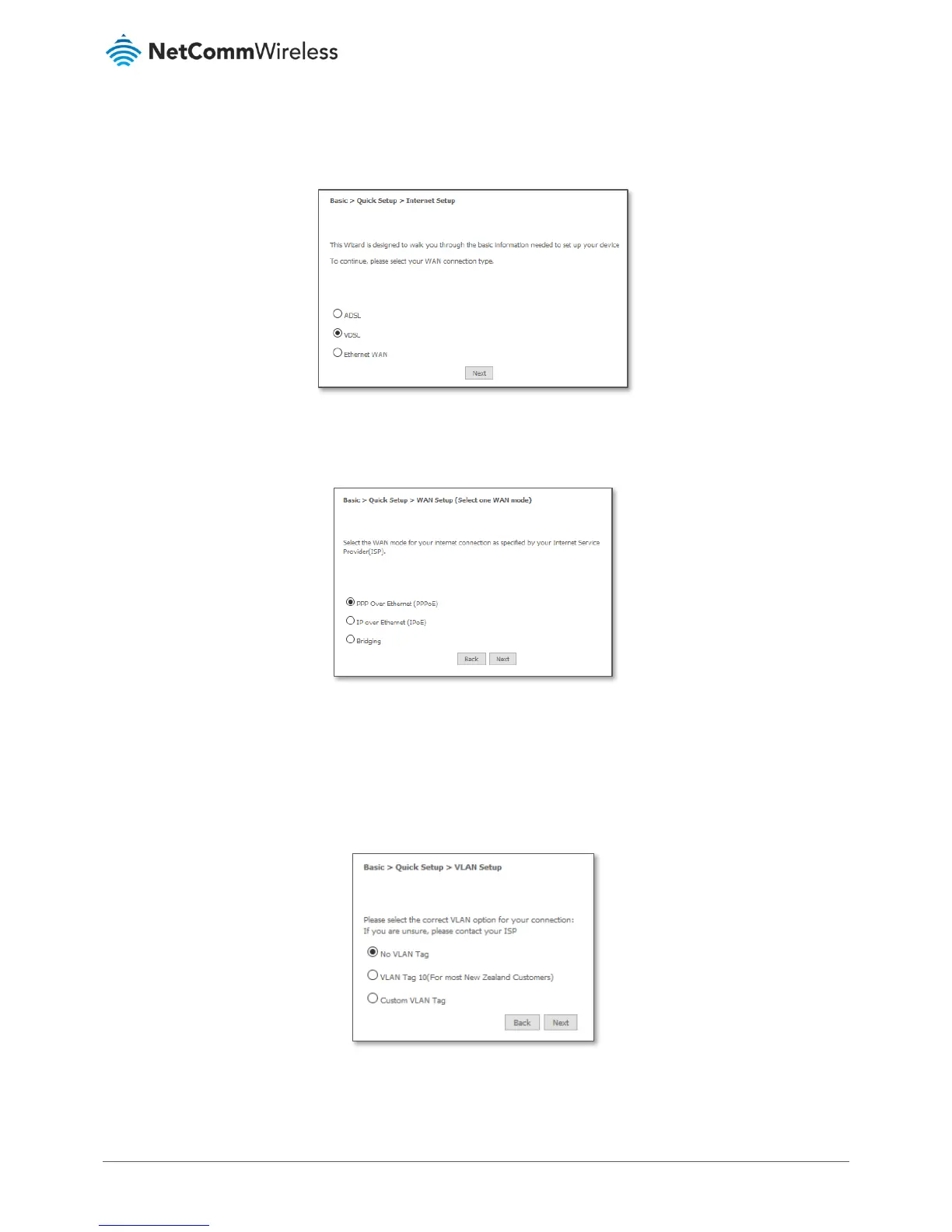

Figure 7 – NF18ACV router – Select VDSL as WAN connection type
e Select the WAN mode for your internet connection as specified by your Internet Service Provider (ISP).
Figure 8 – Select WAN mode for VDSL connection
Click the Next button.
f Select the correct VLAN option for your connection.
For New Zealand customers, the requirement for VDSL is VLAN tag 10.
If you are not sure of the tagging requirement for your connection, please contact your ISP.
Figure 9 – Select VLAN option for VDSL connection
Click the Next button.
