Port Triggering
Some applications require specific ports in the Router’s firewall to be open for access by remote parties. Port Triggering
opens up the ‘Open Ports’ in the firewall when an application on the LAN initiates a TCP/UDP connection to a remote party
using the ‘Triggering Ports’.
The Router allows the remote party from the WAN side to establish new connections back to the application on the LAN side
using the ‘Open Ports’. A maximum 32 entries can be configured.
This is a list of specific ports in the router’s firewall that are open for access by remote parties.

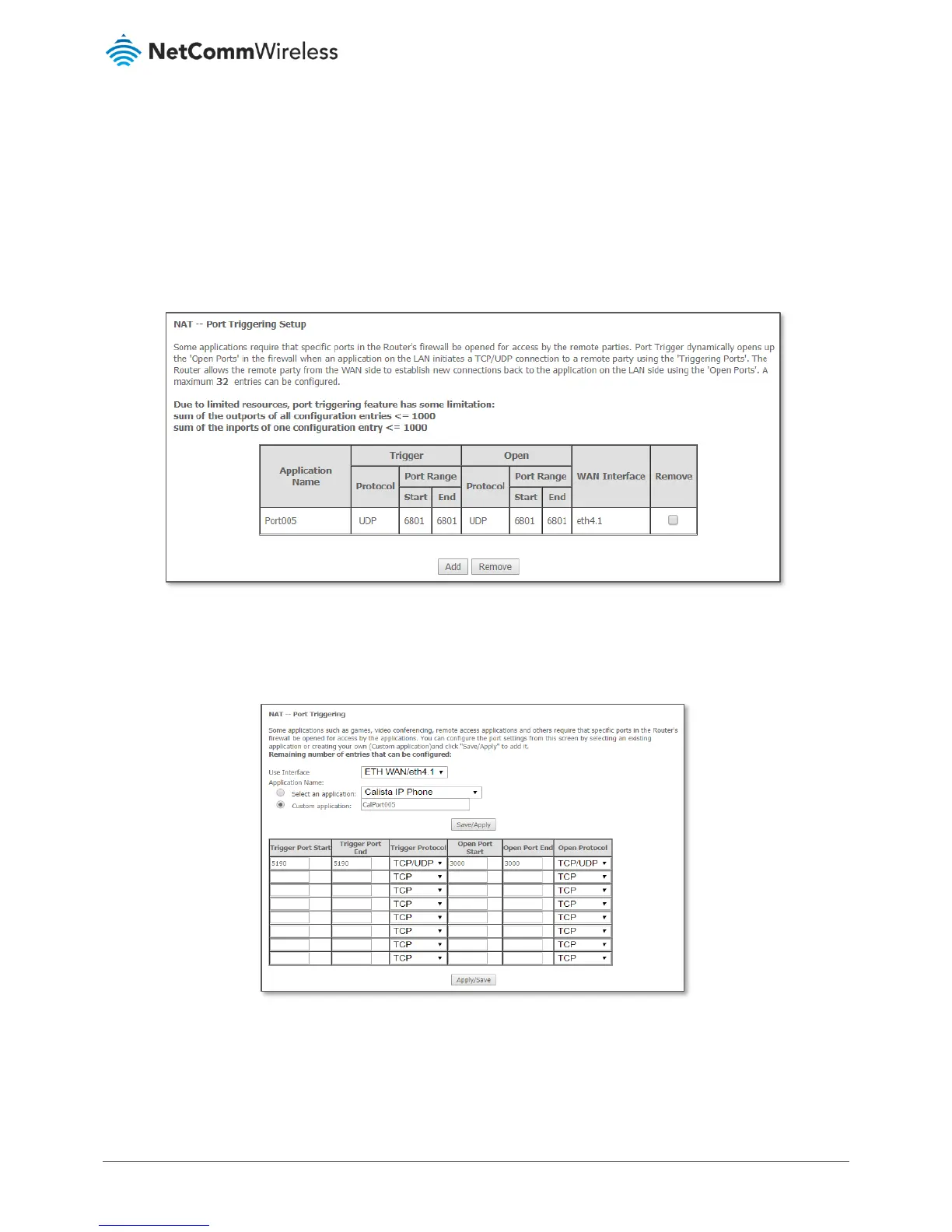

Figure 46 – NAT -- Port Triggering list
Click the Add button and configure the port settings from an existing application in the drop-down list or create your own
custom application.
Figure 47 – NAT -- Port Trigger Configuration page
