To add or remove devices that are allowed:
1. Launch a web browser from a computer or WiFi device that is connected to the network.
2. Enter http://www.routerlogin.net.
A login window opens.
3. Enter the modem router user name and password.
The user name is admin.The default password is password.The user name and password are case-sensitive.
The BASIC Home page displays.
4. Select ADVANCED > Security > Access Control.

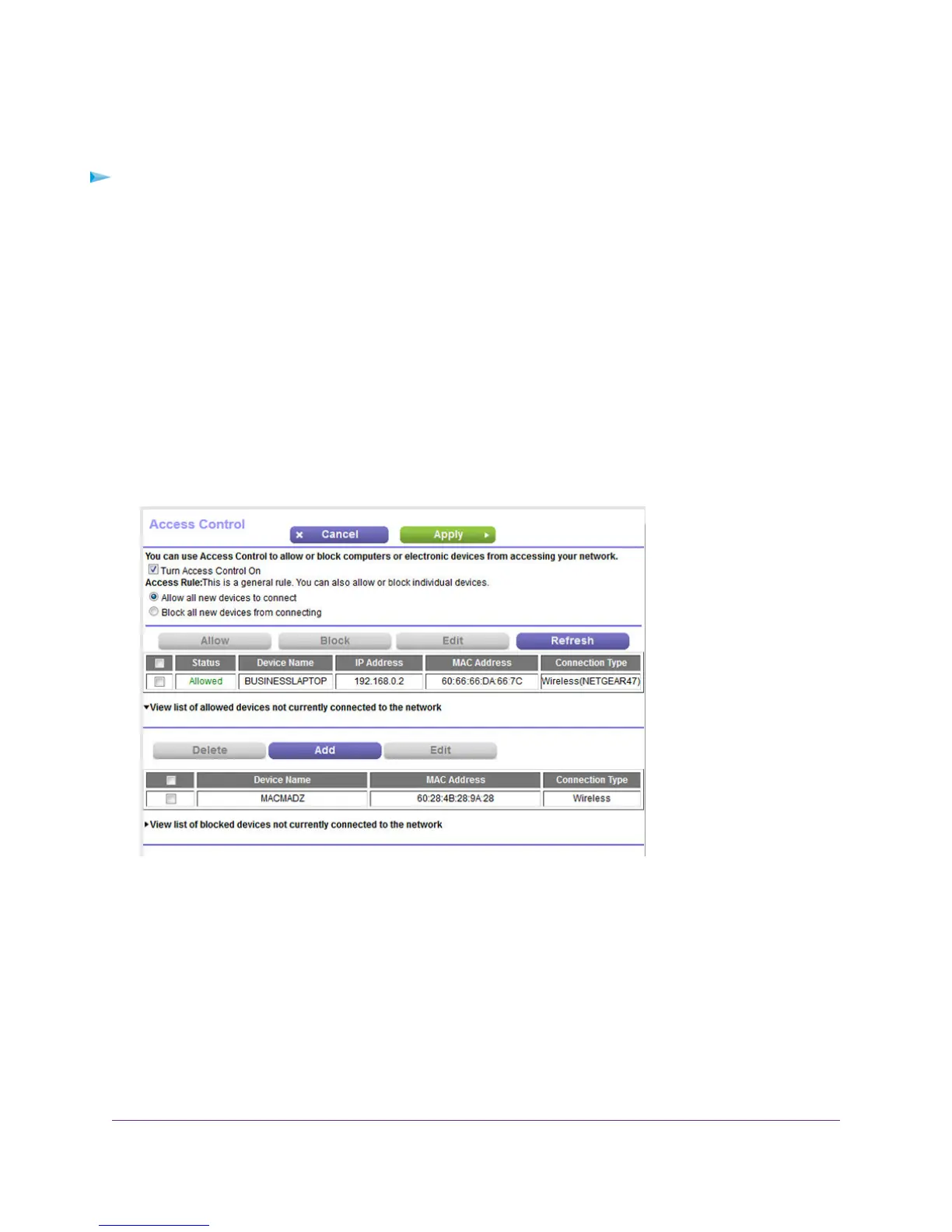

The Access Control page displays.
5. Click the View list of allowed devices not currently connected to the network link.
A table displays the detected device name, MAC address, and connection type of the devices that are not
connected but allowed to access the network.
6. To add a device to the allowed list, do the following:
a. Click the Add button.
The Add Allowed Device page displays.
b. Enter the MAC address and device name for the device that you want to allow.
c. On the Add Allowed Device page, click the Apply button.
The device is added to the allowed list on the Access Control page.
Control Access to the Internet
127
Nighthawk AC1900 WiFi VDSL/ADSL Modem Router Model D7000

Table of Contents

Other manuals for NETGEAR D7000

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the NETGEAR D7000 and is the answer not in the manual?

NETGEAR D7000 Specifications

General IconGeneral
Ethernet LANYes
Cabling technology10/100/1000Base-T(X)
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates10, 100, 1000 Mbit/s
Ethernet LAN interface typeGigabit Ethernet
ModulationPSK
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standardWi-Fi 5 (802.11ac)
WLAN data transfer rate (max)1300 Mbit/s
Memory card slot(s)No
Ethernet LAN (RJ-45) ports5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
DSL specificationVDSL, VDSL2, ADSL, ADSL2, ADSL2+
Web-based management-
Firewall securitySPI, NAT
Security algorithmsWPA, WPA2-PSK, WPS
Product typeTabletop router
Product colorBlack
Housing materialPlastic
Flash memory128 MB
Internal memory256 MB
Processor cores2
Processor frequency1000 MHz
Windows operating systems supportedWindows 2000, Windows 7, Windows 8, Windows Vista, Windows XP
Cables includedLAN (RJ-45), Phone (RJ-11)
Supported network protocolsIPv6
Power source typeAC
Package typeBox
Weight and Dimensions IconWeight and Dimensions
Depth185 mm
Width285 mm
Height50 mm
Weight750 g
