4. Select ADVANCED > Security > Block Services.

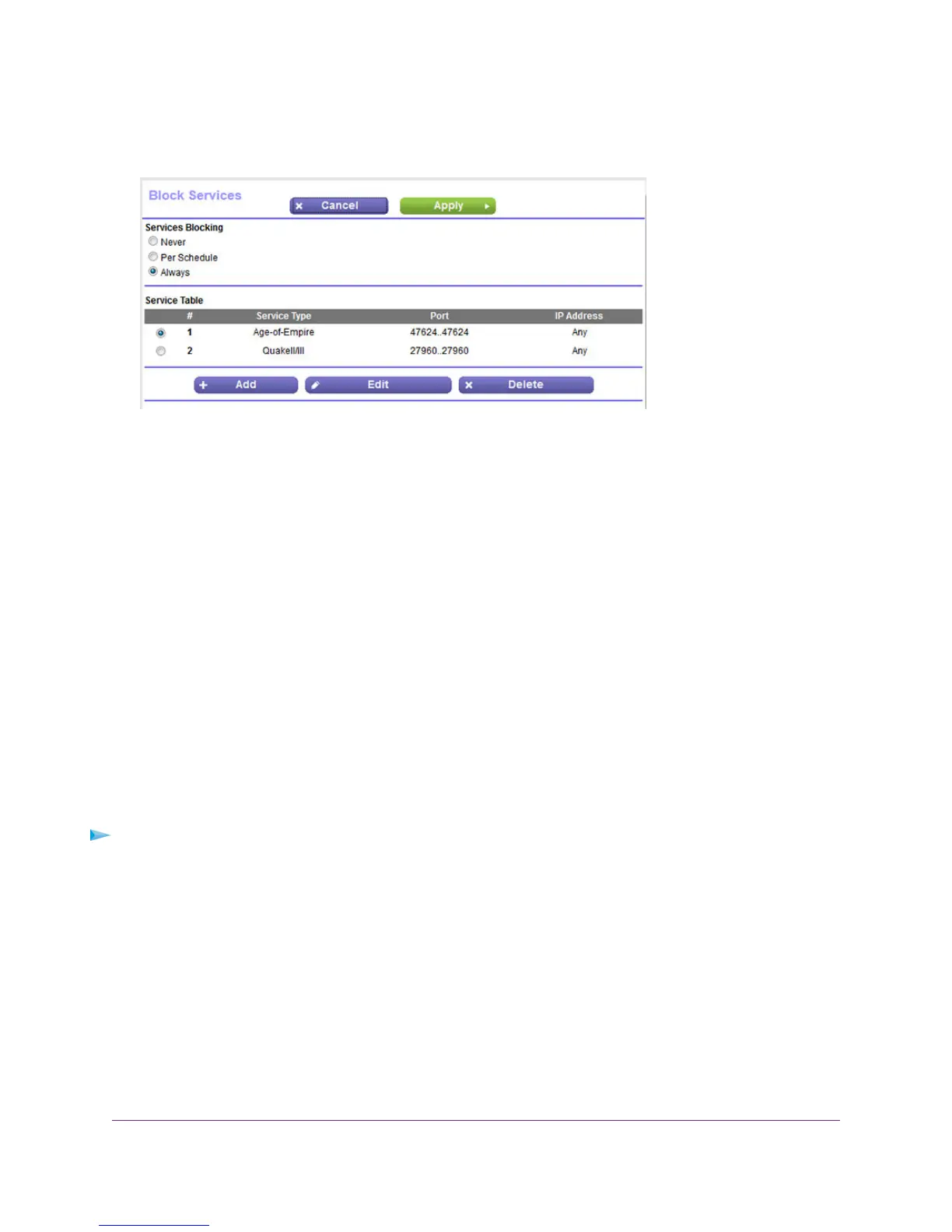

The previous figure shows two rules in the Service Table.
5. In the Service Table, select the radio button for the rule.
6. Click the Edit button.
The Block Services Setup page displays.
7. Change the settings.
For more information about the settings, see Add an Outbound Firewall Rule for a Custom Service or Application
on page 135.
8. Click the Accept button.
Your settings are saved. The changed rule displays in the Service Table on the Block Services page.
Remove an Outbound Firewall Rule
You can remove an outbound firewall rule that you no longer need.
To remove an outbound firewall rule:
1. Launch a web browser from a computer or WiFi device that is connected to the network.
2. Enter http://www.routerlogin.net.
A login window opens.
3. Enter the modem router user name and password.
The user name is admin.The default password is password.The user name and password are case-sensitive.
The BASIC Home page displays.
Control Access to the Internet
138
Nighthawk AC1900 WiFi VDSL/ADSL Modem Router Model D7000

Table of Contents

Other manuals for NETGEAR D7000

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the NETGEAR D7000 and is the answer not in the manual?

NETGEAR D7000 Specifications

General IconGeneral
Ethernet LANYes
Cabling technology10/100/1000Base-T(X)
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates10, 100, 1000 Mbit/s
Ethernet LAN interface typeGigabit Ethernet
ModulationPSK
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standardWi-Fi 5 (802.11ac)
WLAN data transfer rate (max)1300 Mbit/s
Memory card slot(s)No
Ethernet LAN (RJ-45) ports5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
DSL specificationVDSL, VDSL2, ADSL, ADSL2, ADSL2+
Web-based management-
Firewall securitySPI, NAT
Security algorithmsWPA, WPA2-PSK, WPS
Product typeTabletop router
Product colorBlack
Housing materialPlastic
Flash memory128 MB
Internal memory256 MB
Processor cores2
Processor frequency1000 MHz
Windows operating systems supportedWindows 2000, Windows 7, Windows 8, Windows Vista, Windows XP
Cables includedLAN (RJ-45), Phone (RJ-11)
Supported network protocolsIPv6
Power source typeAC
Package typeBox
Weight and Dimensions IconWeight and Dimensions
Depth185 mm
Width285 mm
Height50 mm
Weight750 g
