NETGEAR D7000 User Manual

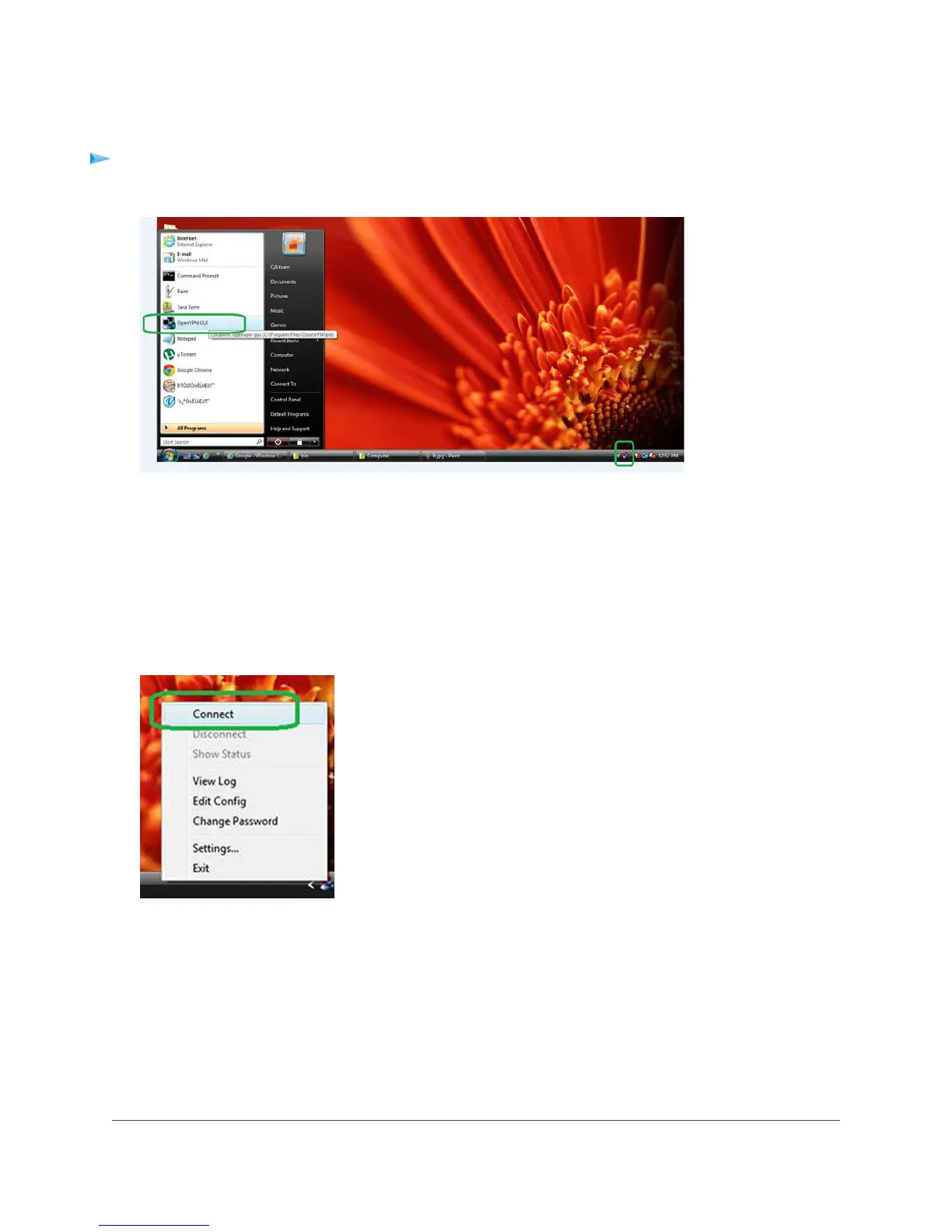

To open a VPN tunnel:
1. Launch the OpenVPN application with administrator privileges.
The OpenVPN icon displays in the Windows taskbar.
You can create a shortcut to the VPN program, then use the shortcut to access the settings and
select the run as administrator check box. Then every time you use this shortcut, OpenVPN
automatically runs with administrator privileges.
Tip
2. Right-click the OpenVPN icon.
3. Select Connect.
The VPN connection is established.You can do the following:
• Launch a web browser and log in to your modem router.
• Use Windows file manager to access the modem router’s USB device and download files.
Use VPN to Access Your Network
255
Nighthawk AC1900 WiFi VDSL/ADSL Modem Router Model D7000

NETGEAR D7000 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Modulation	PSK
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1300 Mbit/s
Memory card slot(s)	No
Ethernet LAN (RJ-45) ports	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
DSL specification	VDSL, VDSL2, ADSL, ADSL2, ADSL2+
Web-based management	-
Firewall security	SPI, NAT
Security algorithms	WPA, WPA2-PSK, WPS
Product type	Tabletop router
Product color	Black
Housing material	Plastic
Flash memory	128 MB
Internal memory	256 MB
Processor cores	2
Processor frequency	1000 MHz
Windows operating systems supported	Windows 2000, Windows 7, Windows 8, Windows Vista, Windows XP
Cables included	LAN (RJ-45), Phone (RJ-11)
Supported network protocols	IPv6
Power source type	AC
Package type	Box

Weight and Dimensions

Depth	185 mm
Width	285 mm
Height	50 mm
Weight	750 g
