NETGEAR D7000 User Manual

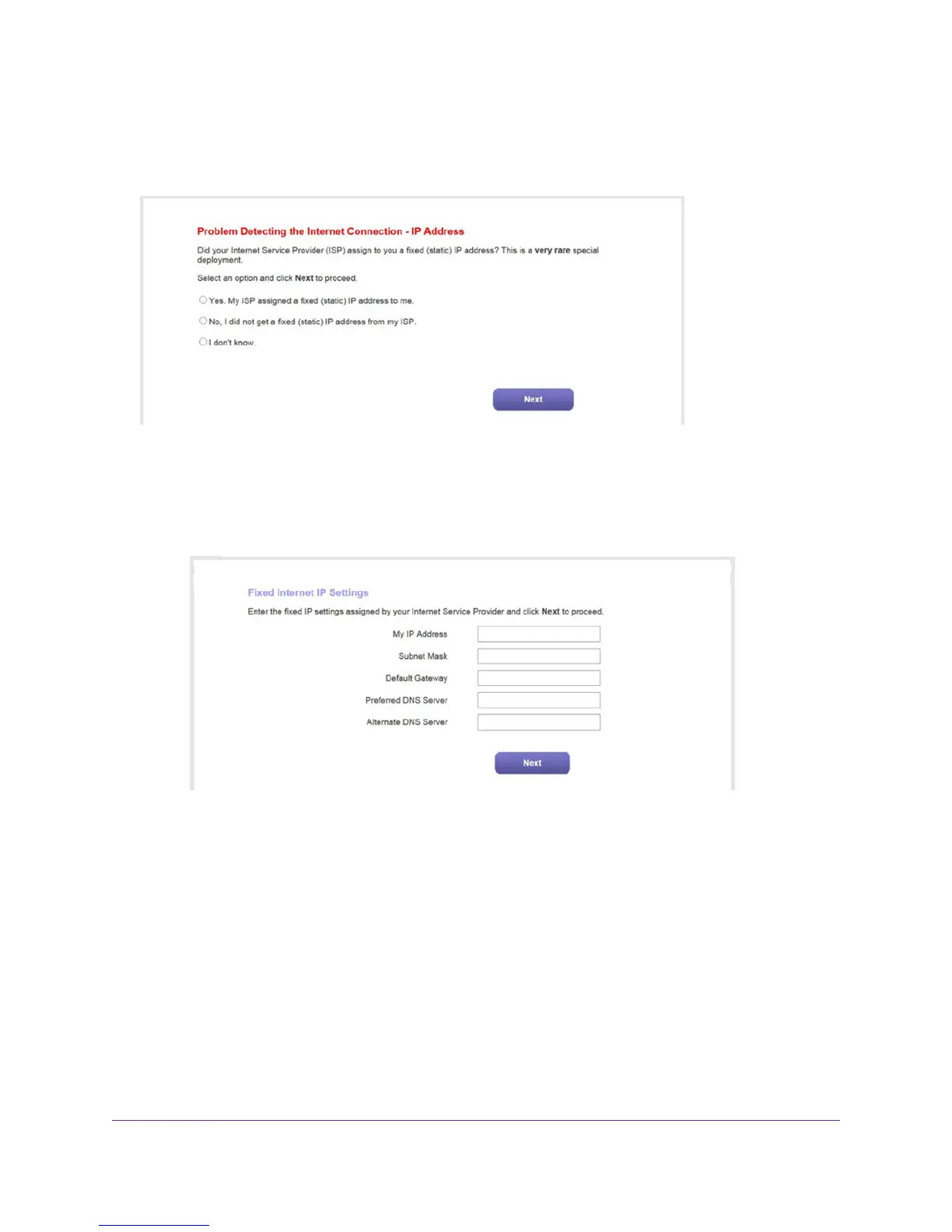

The page that might display states that a problem occurred while the wizard was detecting the Internet connection
IP address. If this page does not display, continue with Step 18.
Take one of the following actions:
• If your ISP assigned you a fixed (static) IP address, do the following:
a. Select the Yes radio button.
b. Click the Next button.
c. Enter the address information that your ISP gave you for your fixed IP address configuration.
d. Click the Next button.
• If your ISP did not assign you a fixed IP address or you do not know if your ISP assigned you a fixed IP
address, do the following:
Install and Access the Modem Router and Its Network
36
Nighthawk AC1900 WiFi VDSL/ADSL Modem Router Model D7000

NETGEAR D7000 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Modulation	PSK
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1300 Mbit/s
Memory card slot(s)	No
Ethernet LAN (RJ-45) ports	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
DSL specification	VDSL, VDSL2, ADSL, ADSL2, ADSL2+
Web-based management	-
Firewall security	SPI, NAT
Security algorithms	WPA, WPA2-PSK, WPS
Product type	Tabletop router
Product color	Black
Housing material	Plastic
Flash memory	128 MB
Internal memory	256 MB
Processor cores	2
Processor frequency	1000 MHz
Windows operating systems supported	Windows 2000, Windows 7, Windows 8, Windows Vista, Windows XP
Cables included	LAN (RJ-45), Phone (RJ-11)
Supported network protocols	IPv6
Power source type	AC
Package type	Box

Weight and Dimensions

Depth	185 mm
Width	285 mm
Height	50 mm
Weight	750 g
