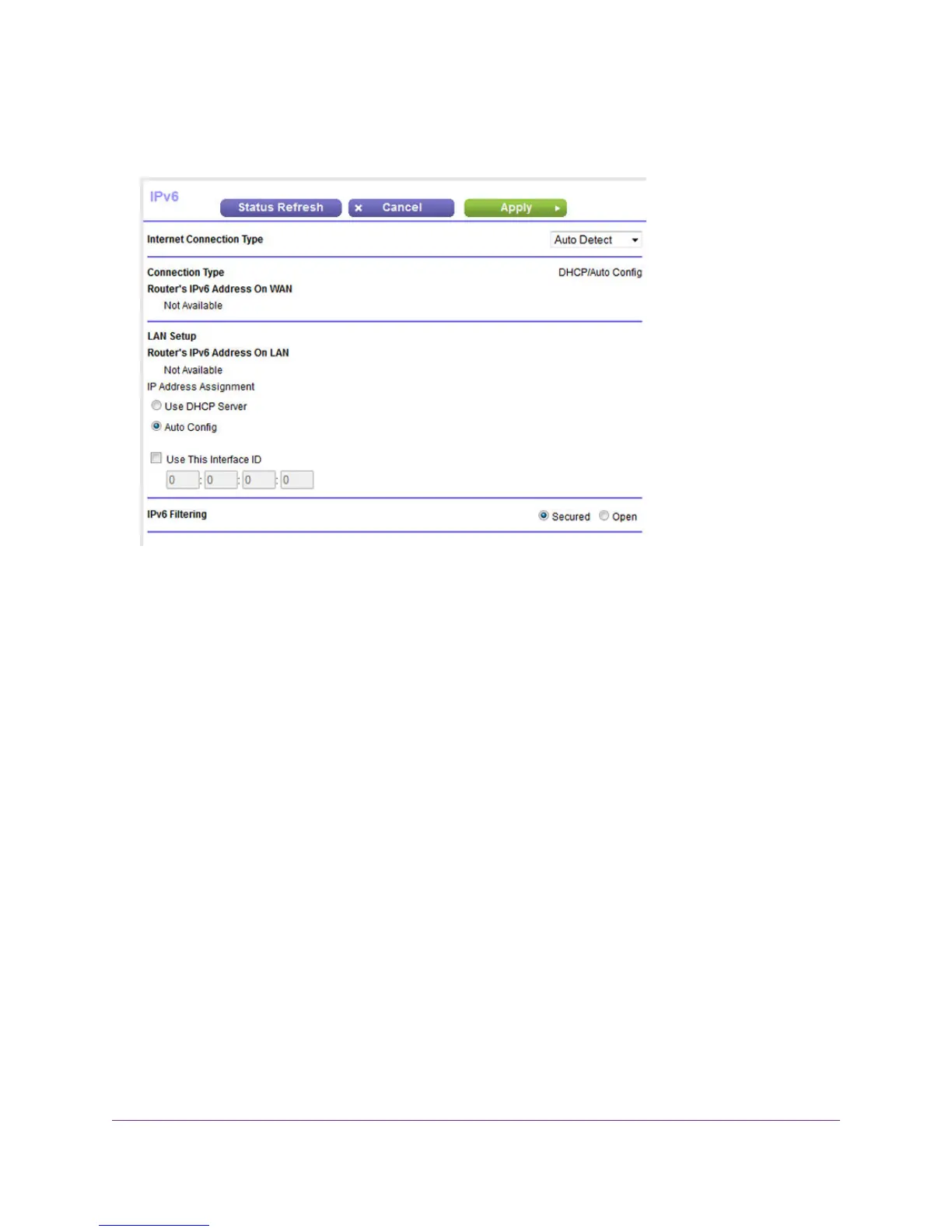

5. From the Internet Connection Type menu, select Auto Detect.
The modem router automatically detects the information in the following fields:
• Connection Type. This field indicates the connection type that is detected.
• Router’s IPv6 Address On WAN.This field shows the IPv6 address that is acquired for the modem router’s
WAN (or Internet) interface.The number after the slash (/) is the length of the prefix, which is also indicated
by the underline (_) under the IPv6 address. If no address is acquired, the field displays Not Available.
• Router’s IPv6 Address On LAN.This field shows the IPv6 address that is acquired for the modem router’s
LAN interface.The number after the slash (/) is the length of the prefix, which is also indicated by the underline
(_) under the IPv6 address. If no address is acquired, the field displays Not Available.
6. Select an IP Address Assignment radio button:
• Use DHCP Server. The modem router assigns IPv6 addresses to the devices on your home network (the
LAN) through a DHCP server.This method passes more information to LAN devices, but some IPv6 systems
might not support the DHCPv6 client function.
• Auto Config.This is the default setting.
7. To specify the interface ID for the IPv6 address of the modem router’s LAN interface, select the Use This
Interface ID check box, and enter the interface ID.
If you do not specify an ID here, the modem router generates one automatically from its MAC address.
8. Select the IPv6 filtering mode:
• Secured. In secured mode, which is the default mode, the modem router inspects both TCP and UDP packets.
• Open. In open mode, the modem router inspects UDP packets only.
9. Click the Apply button.
Manage the Internet Settings Manually
80
Nighthawk AC1900 WiFi VDSL/ADSL Modem Router Model D7000
