Connection
Digitax SF Instruction Manual
２．Position Control Mode
4. Connections
2. Position Control Mode
1: 24V
24V GND
24V
G24V
2: G24V
3: COM+
4: SVON
5: RESET
6: HOLD
7: PCLR
9: CCWL
10: CWL
11: TLSEL1
12: COM-
13: MBRK
14: SERVO
15: POSIN
17: T-LIMIT
18: OCZ
19: SRDY+
20: SRDY-
21: ALM+
22: ALM-
49: CC-P_5V
FG
36: OUT_A
37: /OUT_A
38: OUT_B
39: /OUT_B
40: OUT_Z
41: /OUT_Z
43: 485
44: /485
45: SG
42: SG
27: /CMD_PLS
50: CC-D_5V
31: /CMD_DIR
SG
390
Ω
Control power supply 24 V input
Control power supply GND
I/O power supply 24 V input
INPUT
䚷
Servo ON
INPUT
䚷
Alarm reset
INPUT
䚷
Command input
inhibition
㻵㻺㻼㼁㼀䚷Position Error㻌㼏㼛㼡㼚㼠㼑㼞
䚷䚷䚷䚷䚷䚷㼏㼘㼑㼍㼞
INPUT䚷CCW run limit switch
input
INPUT䚷CW run limit switch
input
I/O power supply GND
OUTPUT䚷Motor Brake
release
OUTPUT
䚷
Positioning
complete
OUTPUT
䚷
Servo state
OUTPUT Under torque
limit
OUTPUT
䚷
Encoder Z-phase
䠄
open-collector
䠅
OUTPUT
䚷
Servo-Ready+
OUTPUT
䚷
Servo-Ready-
OUTPUT
⅙
Alarm State+
OUTPUT
䚷
Alarm State-
Pulse Train
Command Input
A-phase
output
B-phase
output
Z-phase
output
Pulse
RS-422 output
2m or shorter
Twisted Pair Cable
Frame
Encoder Signal Output
Direction
Control Power
㻖
3
㻖
1
㻖
1
㻖
1
㻖
1
㻖
2
㻖
6
㻖
4
㻖
5
Servo Drive
4.7k
Ω
MAX 50mA
MAX 50mA
MAX 50mA
MAX 50mA
MAX 50mA
MAX 50mA
MAX 50mA
390
Ω
SG
SG
Shielded
5V
5V
Host SG
SG
SG
Host SG
RS-485
Host Controller
SG
㻖
5
㻖
4
*1) Control power (24V, G24V) and power for I/O (COM+, COM-) must share one common power supply.
*2) When driving a load containing inductance (component such as a relay) connect a protection circuit (diode).
The motor brake cannot be driven directly. Be sure to use a circuit that interfaces with a diode built-in type relay.
Page 46 Connection to general-purpose output signals
*3) The output circuit conguration is an open collector Darlington transistor output. Connects to relays and optical isolators.
Note that when the transistor is on, connector-emitter voltage VCE (SAT) is approximately 1V;
a standard TTL IC does not satisfy VIL and cannot be connected
directly.
*4) Be sure to connect a termination resistor of approximately 220 Ω.
*5) Make the connection to the communication IC signal ground of the host controller that the drive encoder output signals
are connecting to. Connecting signal ground SG to control power GND may result in malfunction.
*6) If Z-phase pulse width is too small to be measured accurately by the host controller, decrease pulse division rate by using pulse output
ratio (parameters No.276.0 and No.278,0) or decrease rotational speed to increase the pulse width.
Pulse width [ms] = 2 / rotational speed [rpm] / (division ratio × 2
17
) × 60 × 1,000.

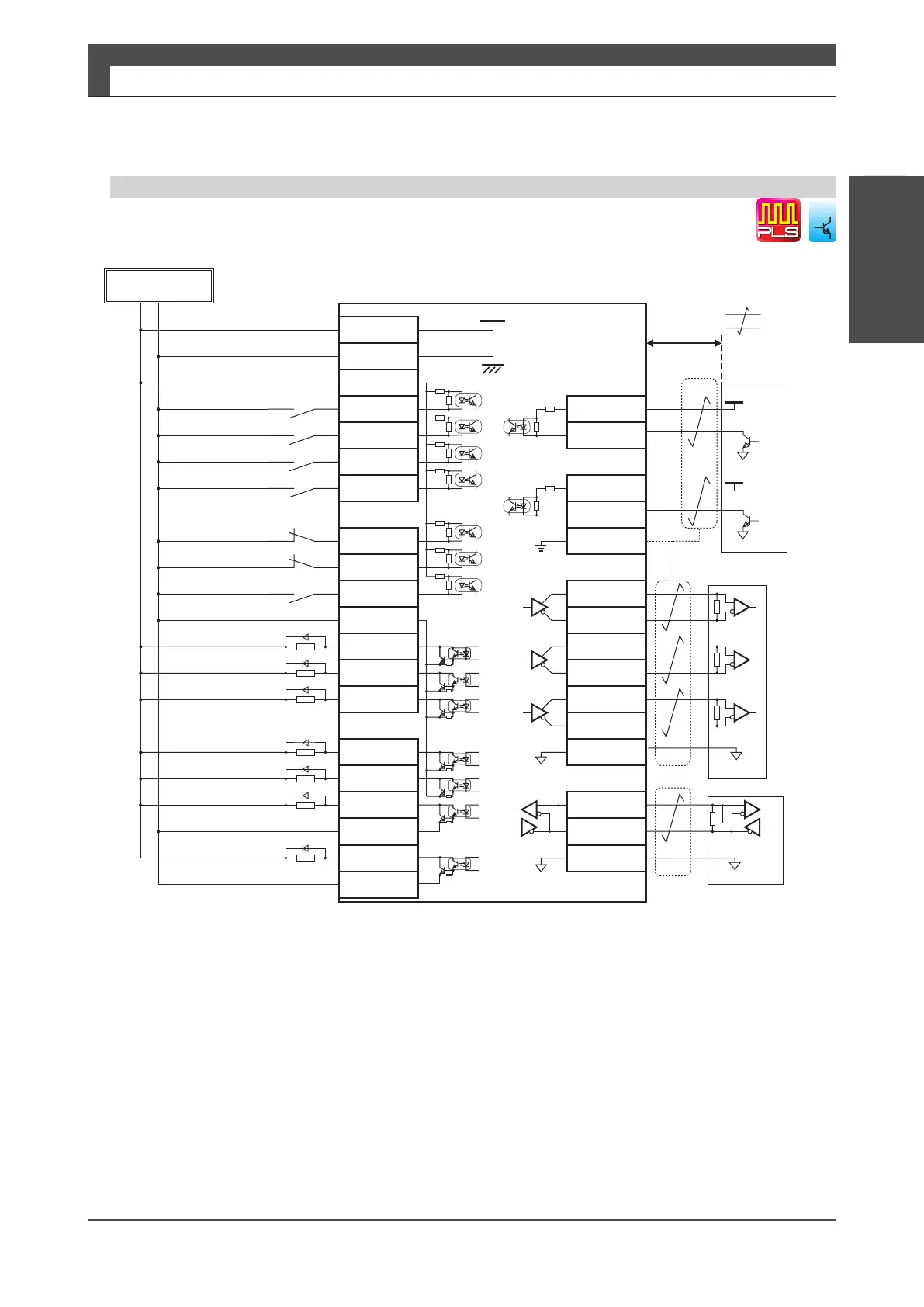

CN1 Connector Wiring Example
Pulse Train Command, 5V Open Collector, Standard I/O Conguration
5
INPUT Torque limit
selection
