Nidec Control Techniques Digitax-SF Series User Manual

28
4. Connections
Digitax SF Instruction Manual

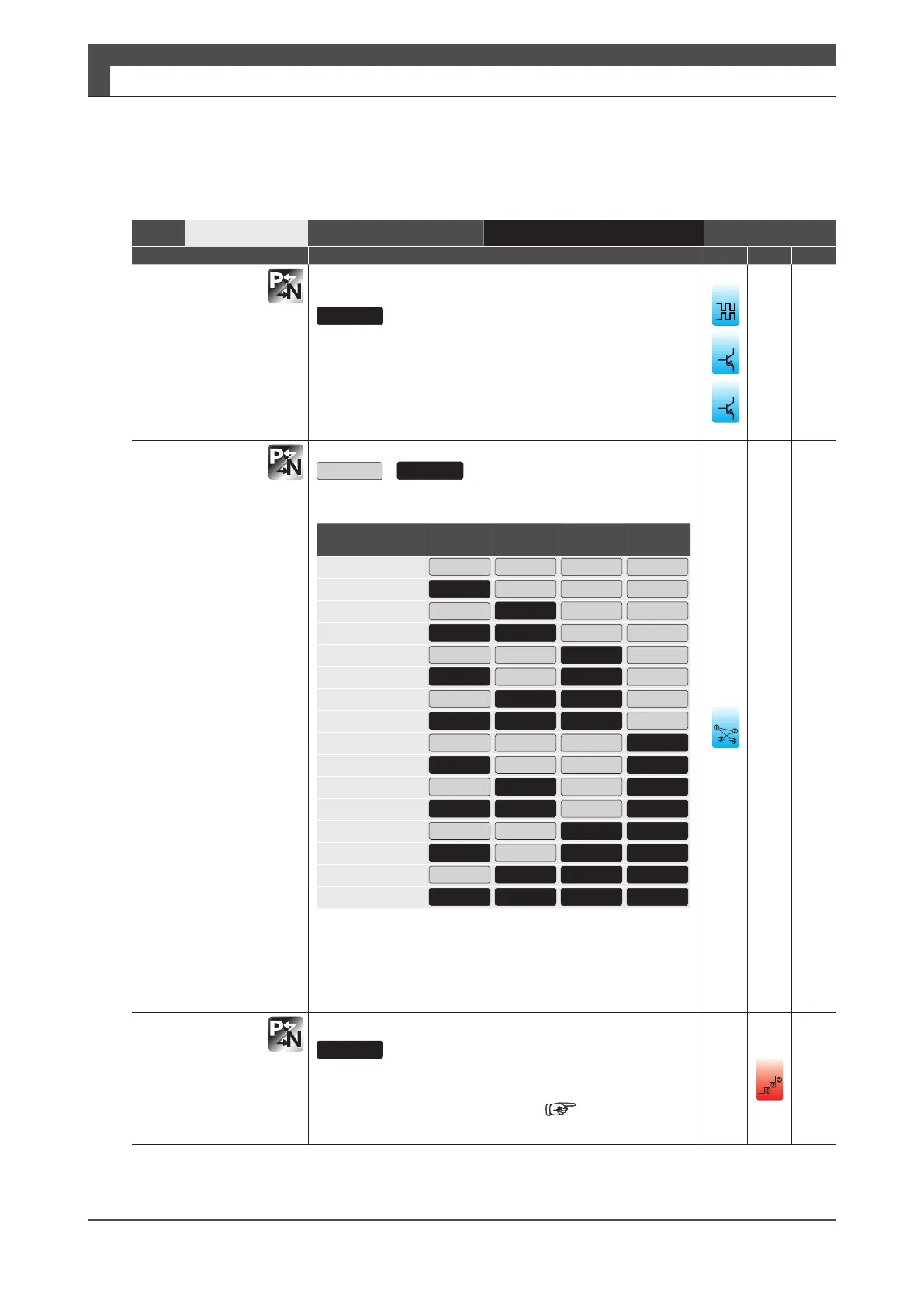

5. Descriptions of CN1 Connector Signals
Pin No.
7
Inteface Circuit
PI（page 45） Control Mode
Signal Description P S T
PCLR
Position Error
Counter Clear
Close
Error Counter Clear is executed.
■ TIP
Be sure to turn off this signal after Error counter execution.
dif.
24
5
PCSEL1
Point No. Select 1
Open
/ Close
You can specify the Point No. with a combination of PCSEL1…
PCSEL4.
Point No.
（PinNo.）
PCSEL1
（No.7）
PCSEL2
（No.8）
PCSEL3
（No.9）
PCSEL4
（No.10）
0 Homing
Open Open Open Open
1
Close Open Open Open
2
Open
Close Open Open
3
Close Close Open Open
4
Open Open Close Open
5
Close
Open Close Open
6
Open Close Close Open
7
Close Close Close
8
Open Open Open Close
9
Close Open Open Close
10
Open Close Open Close
11
Close Close Open Close
12
Open Open Close Close
13
Close Open Close Close
14
Open Close Close Close
15
Close Close Close Close
■ Related Parameters
･No.646.3
This parameter enables you to select motion per Point No.0
from either Homing or Point Table Motion.
i/o
䐟
䐠
䐡
䐢
VCRUN2
Internal Velocity Start 2
Close
Motor rotates in CW direction
VCRUN1（Pin No.6）
i/o
䐟
䐠
䐡
Open
■ Related Parameters
No. 67.3
