In this example configuration (Figure 1-8), spanning tree participation must be set
to Disabled because the spanning tree protocol (STP) is not supported across
multiple VLANs (see “Spanning Tree Port Configuration” on page 3-63).

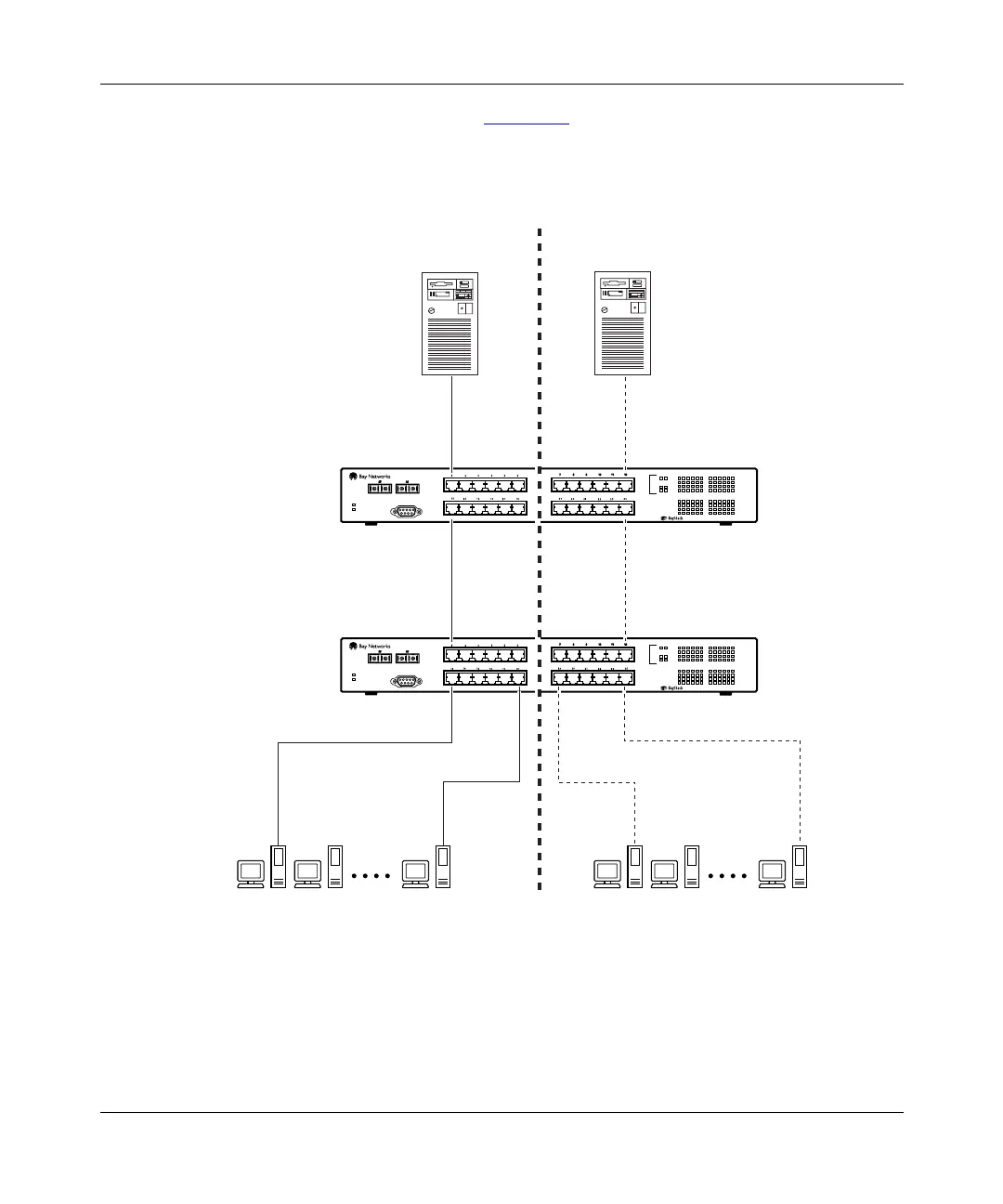

Figure 1-8. VLANs spanning multiple switches
BayStack 350 switches also allow ports to exist in multiple VLANs for shared
resources, such as servers, printers, and switch-to-switch connections.
