Getting Started
893-00992-E
1-47

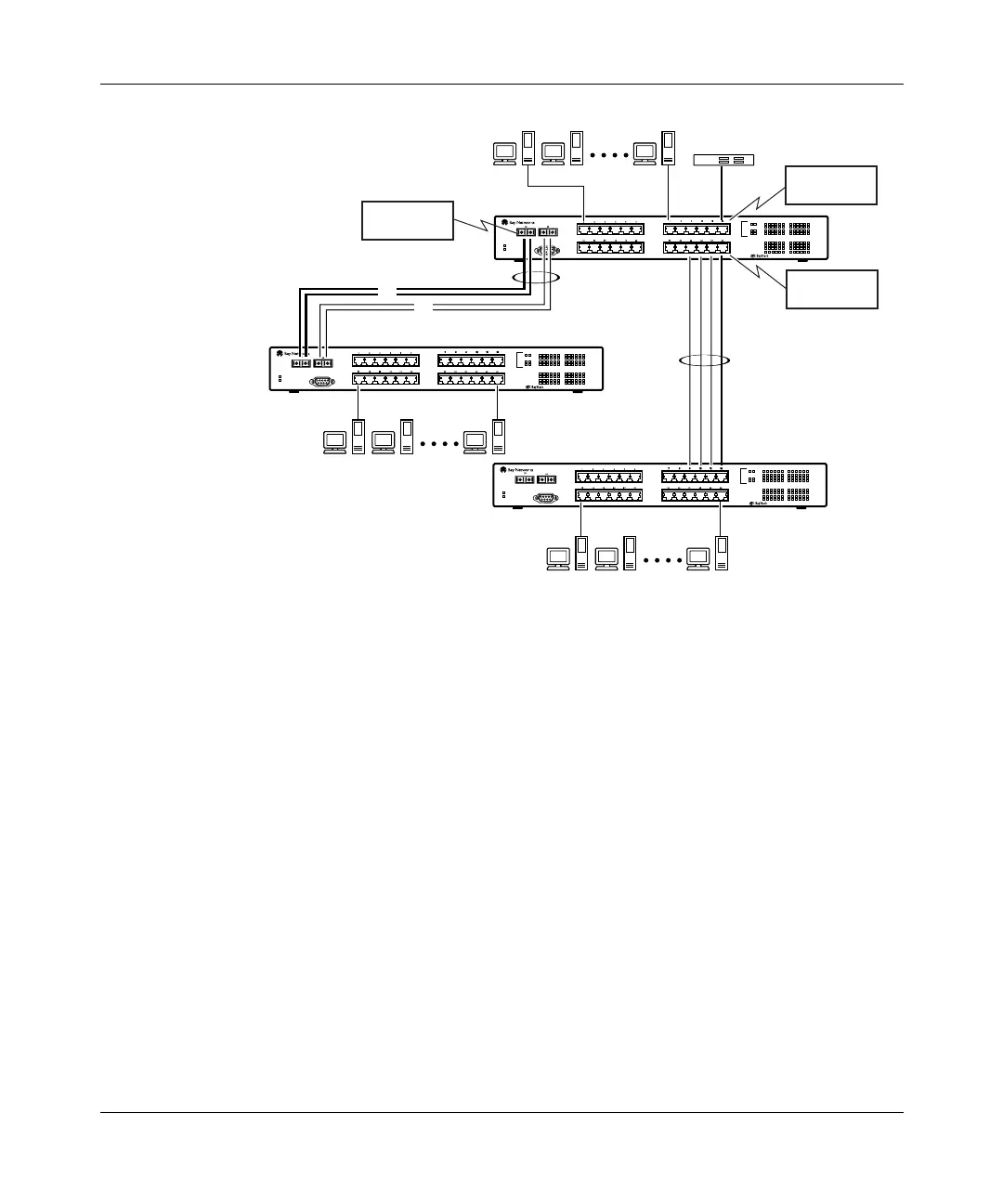

Figure 1-30. Port-based mirroring configuration example
In this configuration example, the designated monitor port (port 12) can be set to
monitor traffic in any of the following modes:
• Monitor all traffic received by port X
• Monitor all traffic transmitted by port X
• Monitor all traffic received and transmitted by port X
• Monitor all traffic received by port X or transmitted by port Y
• Monitor all traffic received by port X (destined to port Y) and then transmitted
by port Y
• Monitor all traffic received/transmitted by port X or received/transmitted by
port Y (or all conversations between port X and port Y)
BS0026A
StackProbe
SW1
SW2
SW3
I1
I2
Diagnostics
Comm Port
Power
123456
F Dx
26
100
Activity
25
Activity
F Dx
10
100
789101112
13 14 15 16 17 18
Activity
F Dx
10
100
19 20 21 22 23 24
350F-HD
10/100 Autosense Switch
Diagnostics
Comm Port
Power
123456
F Dx
26
100
Activity
25
Activity
F Dx
10
100
789101112
13 14 15 16 17 18
Activity
F Dx
10
100
19 20 21 22 23 24
350F-HD
10/100 Autosense Switch
Diagnostics
Comm Port
Power
123456
F Dx
26
100
Activity
25
Activity
F Dx
10
100
789101112
13 14 15 16 17 18
Activity
F Dx
10
100
19 20 21 22 23 24
350F-HD
10/100 Autosense Switch
F
Monitor port
(port 12)
Port Y
(port 24)
Port X
(port 25)
F
