NSD VARILIMIT VS-12PB - Limit Switch Output in TEST Mode Configuration; Enabling Limit Switch Output in TEST Mode

● 9-24 ●
◎ Precaution of Limit Switch Output In the TEST mode
A parameter No. 68 setting is required so that the Limit Switch function is operative in the TEST mode.

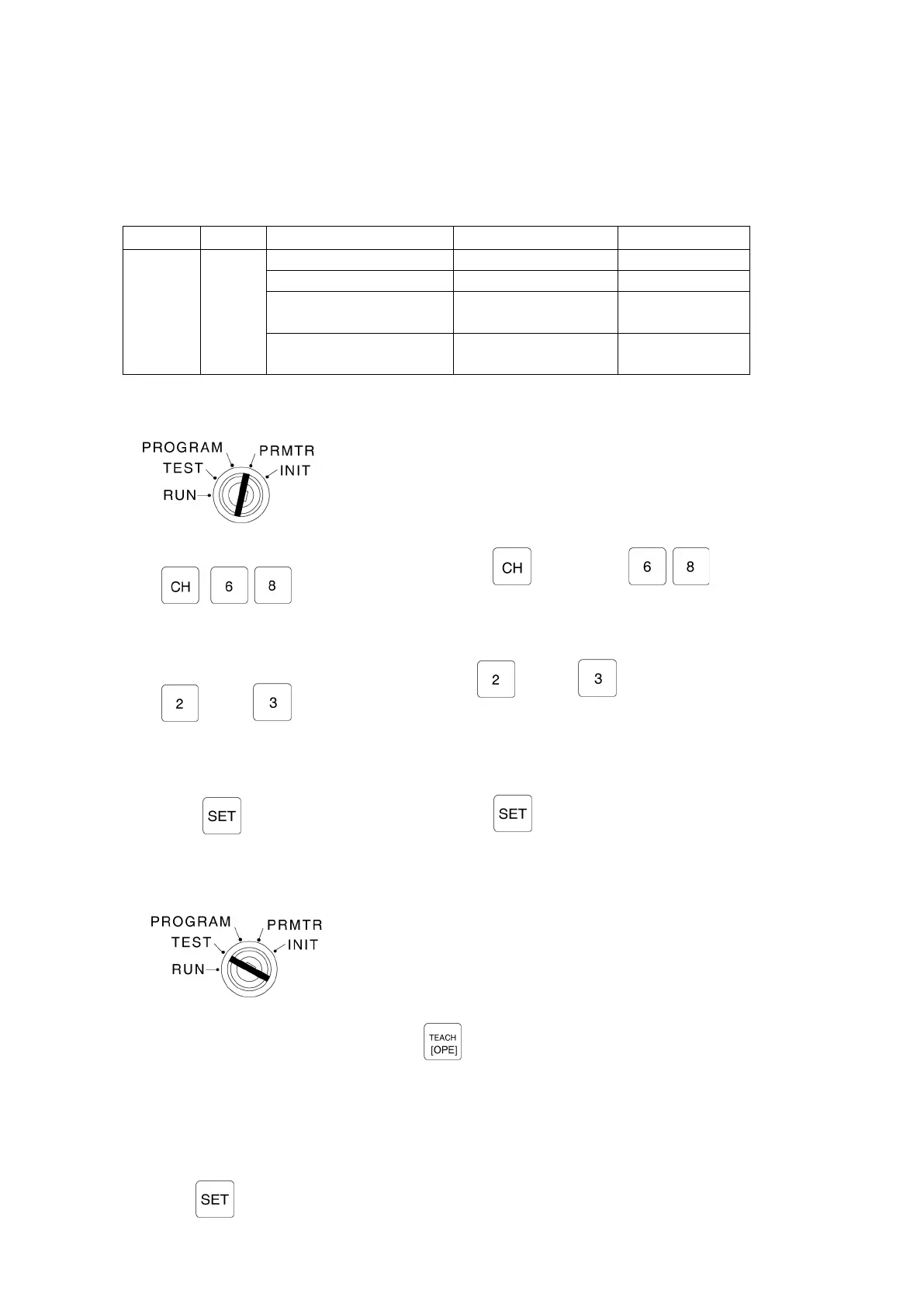

●Limit Switch Output Status in each mode: TEST, PROGRAM, PRMTR, INIT
Parameter No. 68 setting
MODE RUN TEST PROG. PRMTR. INIT Setting value
Limit
Switch
Output
Status
Output
valid
OFF
OFF
0
Switch output HOLD status
Switch output HOLD status
1
OFF → Press [SET] key →
Switch output valid
OFF 2
HOLD status → Press [SET]
key → Switch output valid
Switch output HOLD status 3
[1] Select the PRMTR mode.
Turn the mode key-switch to the PRMTR mode position.
[2] Designate the Parameter No.68.
Press the key and press .
[3] Designate “2” or “3”.
Press or
or
[4] Register the setting.
Press the key to register the designated setting.
[5] Select the TEST mode.
Turn the mode key-switch to the TEST mode position.
[6] Select the operation condition by pressing the key.
In addition to AUTO positioning, INCHING, and JOG operations, a
limit switch output operation is also possible in the TEST mode.
[7] Switch to a limit switch output mode
