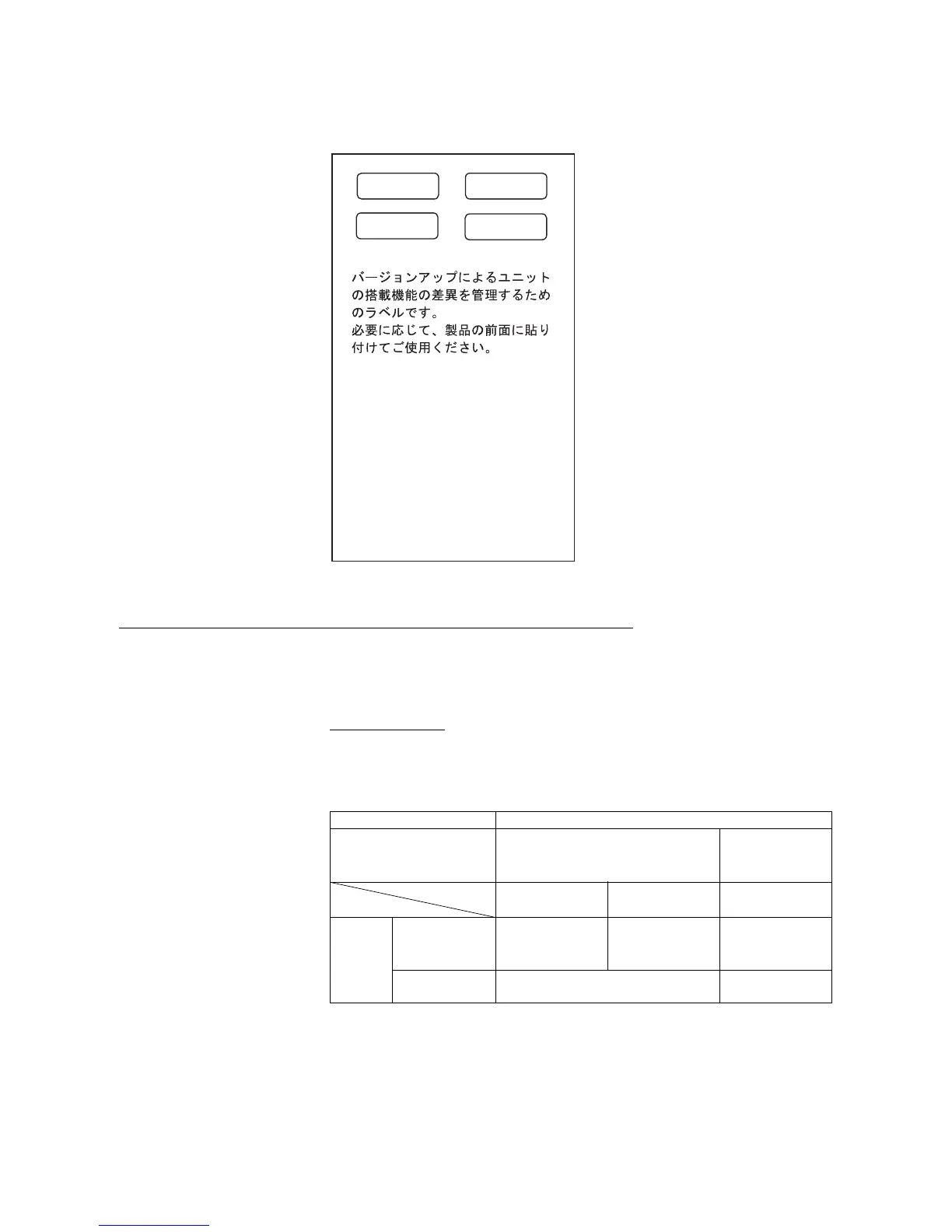

Using the Unit Version
Labels
The following unit version labels are provided with the CPU Unit.
These labels can be attached to the front of previous CPU Units to differenti-
ate between CPU Units of different unit versions.
Functions Supported by Unit Version for CP-series CPU Units
Functions Supported by Unit Version 1.0 and 1.1
Functionality is the same as that for CS/CJ-series CPU Units with unit version
3.0. The functionality added for CS/CJ-series CPU Unit unit version 4.0 is not
supported.
CP1H CPU Units
• CX-Programmer version 6.11 or higher is required to use CP1H-X@@@@-
@/XA@@@@-@ with unit version 1.1 or 1.0.
• CX-Programmer version 6.20 or higher is required to use CP1H-Y@@@@-
@ with unit version 1.1.
Note 1. The unit version for the CP1H-X
@@@@-@/XA@@@@-@ begins at 1.0.
2. The unit version for the CP1H-Y
@@@@-@ begins at 1.1.
3. CX-Programmer version 7.11 or higher is required to use CP1L CPU Units
with unit version 1.0.
4. CX-Programmer version 7.3 or higher is required to use CP1L CPU Units
with 10 I/O points.
Ver.
1.0
Ver.
1.0
Ver.
Ver.
These Labels can be used
to manage differences
in the available
functions among the Units.
Place the appropriate label
on the front of the Unit to
show what Unit
version is actually being
used.
CPU Unit CP1H CPU Unit
Model CP1H-@@@@-@
CP1H-XA@@@@-@
(See note 1.)
CP1H-Y@@@@-
@
(See note 2.)
Unit version
Function
Ver. 1.1 or later Ver. 1.0 Ver. 1.1
Pulse
outputs
Allocated built-
in I/O terminals
4 axes at 100 kHz 2 axes at 100 kHz
2 axes at 30 kHz
2 axes at 100 kHz
Special pulse
output terminals
None 2 axes at 1 MHz
