Pulse Outputs Section 5-2
Preparation

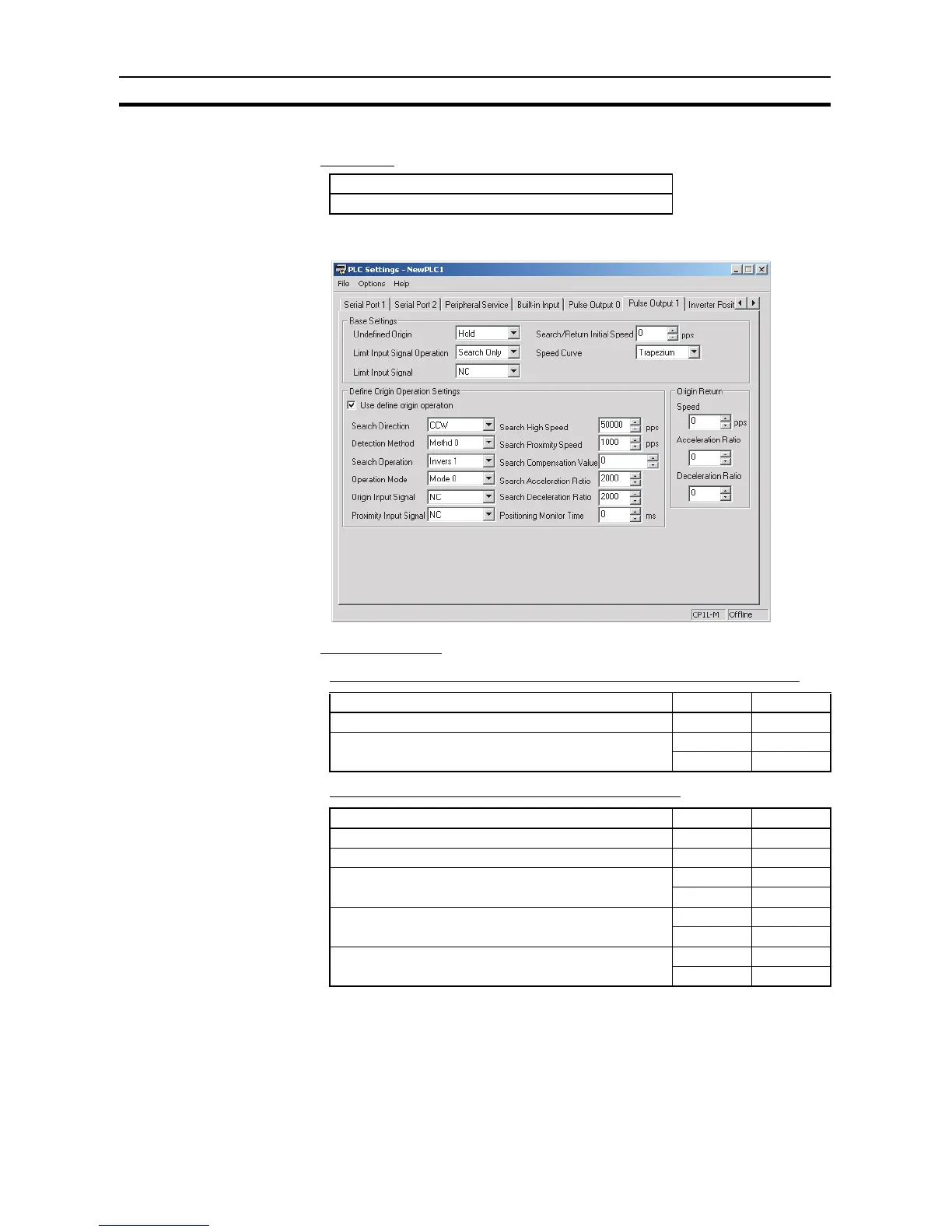

■ PLC Setup
Note The interrupt input setting is read when the power supply is turned ON.
■ DM Area Settings
Speed Control Settings to Feed Wrapping Material to Initial Position
Positioning Control Settings for Wrapping Material
Setting details
Enable using built-in input IN0 as an interrupt input.
Setting details Address Data
Acceleration rate: 1,000 Hz/4 ms D0 03E8
Target frequency: 10,000 Hz D1 2710
D2 0000
Setting details Address Data
Acceleration rate: 500 Hz/4 ms D10 01F4
Deceleration rate: 500 Hz/4 ms D11 01F4
Target frequency: 10,000 Hz D12 2710
D13 0000
Number of output pulses: 5,000 pulses D14 1388
D15 0000
Starting frequency: 0 Hz D16 0000
D17 0000
