Pulse Outputs Section 5-2

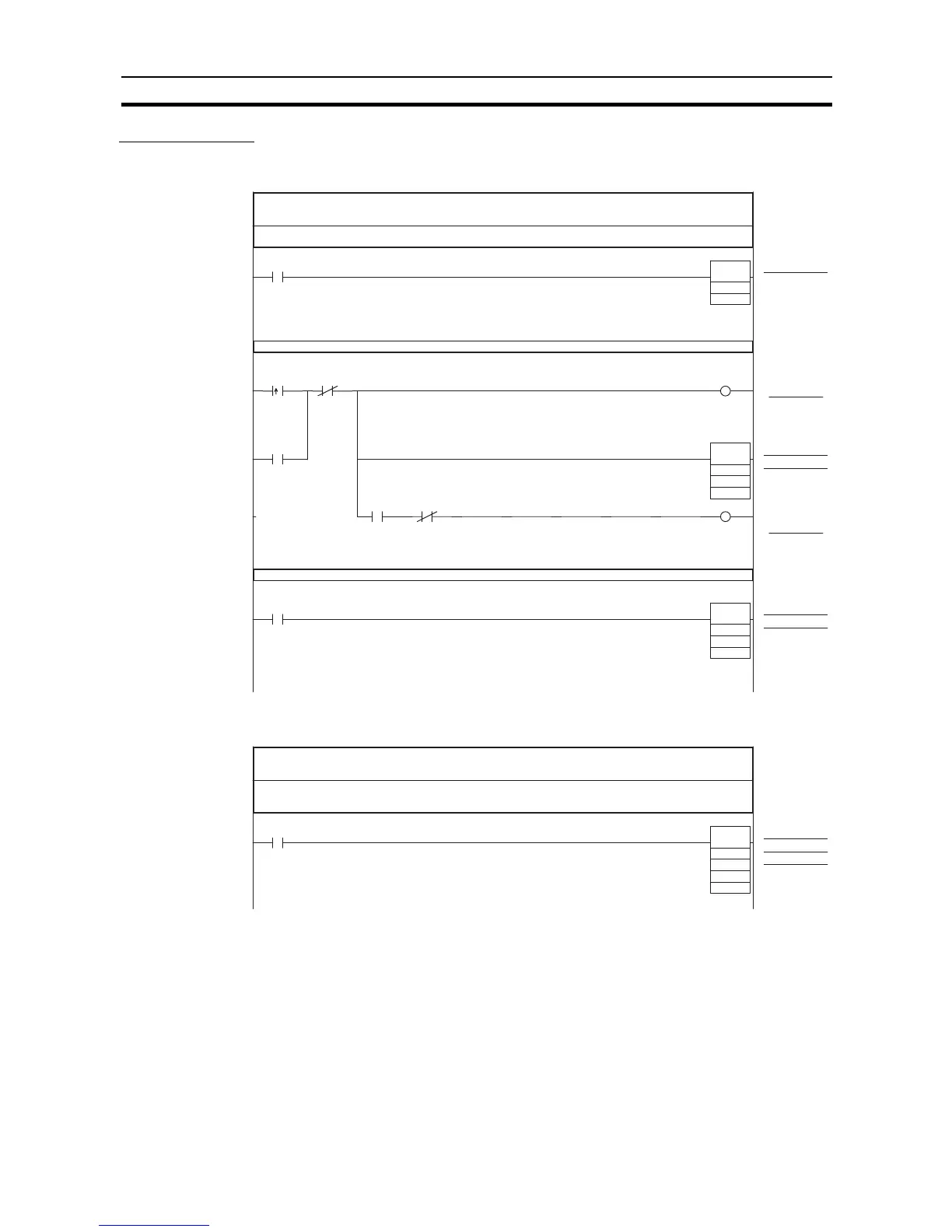

Ladder Program
Cyclic Task Program
(Executed at Startup)
Program for Interrupt Task
140
000000
(000000)
[Program Name: New Program1]
[Section Name: Section1]
Enabling Input Interrupt 0 (IN0)
P_First_Cycle
MSKS
(690)
6
#0
[OP1]
[OP2]
000001
(000002)
Feeding Material with Speed Control
0.00
Material
feed start
W0.01
Material
positioning
completed
W0.00 Material being
fed
<W000.00>
a03
W0.00
Material
being fed
@ACC
(888)
#0
#0
D0
[OP1]
[OP2]
[OP3]
A280.03 A280.04 W0.01 Material
positioning
completed
<W000.01>
b04
000002
(000010)
Emergency Stop (Pulse Output Stopped)
0.01
Emergency
stop
switch
@INI
(880)
#0
#3
0
[OP1]
[OP2]
[OP3]
<0.00>
a02
<0.01>
a10
Pulse Output
Completed Flag
Pulse Output
Completed Flag
First Cycle Flag
000000
(000000)
[Program Name: New Program2]
[Section Name: Section1]
Interrupt Task for Master Sensor ON
Starting interrupt Feed
P_On
Always ON Flag
PLS2
(887)
#0
#0
D10
D16
[OP1]
[OP2]
[OP3]
[OP4]
