332
Inverter Positioning Section 5-3

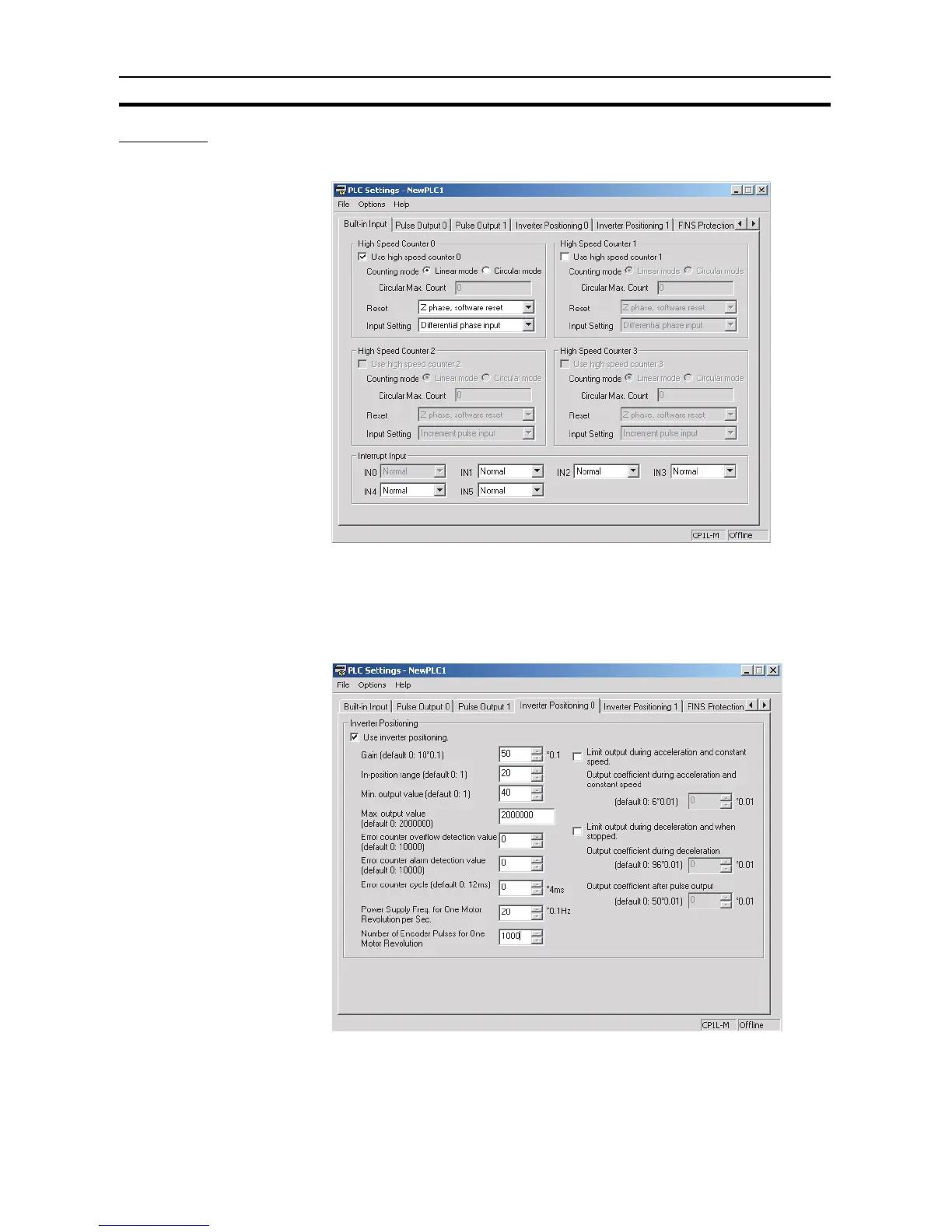

PLC Setup
■ High-speed Counter Settings (on Built-in Input Tab Page)
Note (1) Set high-speed counter 0 when using inverter positioning 0. Set high-
speed counter 1 when using inverter positioning 1.
(2) Use linear mode for inverter positioning.
■ Inverter Positioning Settings (on Inverter Positioning 0 or 1 Tab Page)
To Next Page
