PART 1: CX-Programmer
CHAPTER 4 – Reference OMRON
CX-Programmer _Page 90

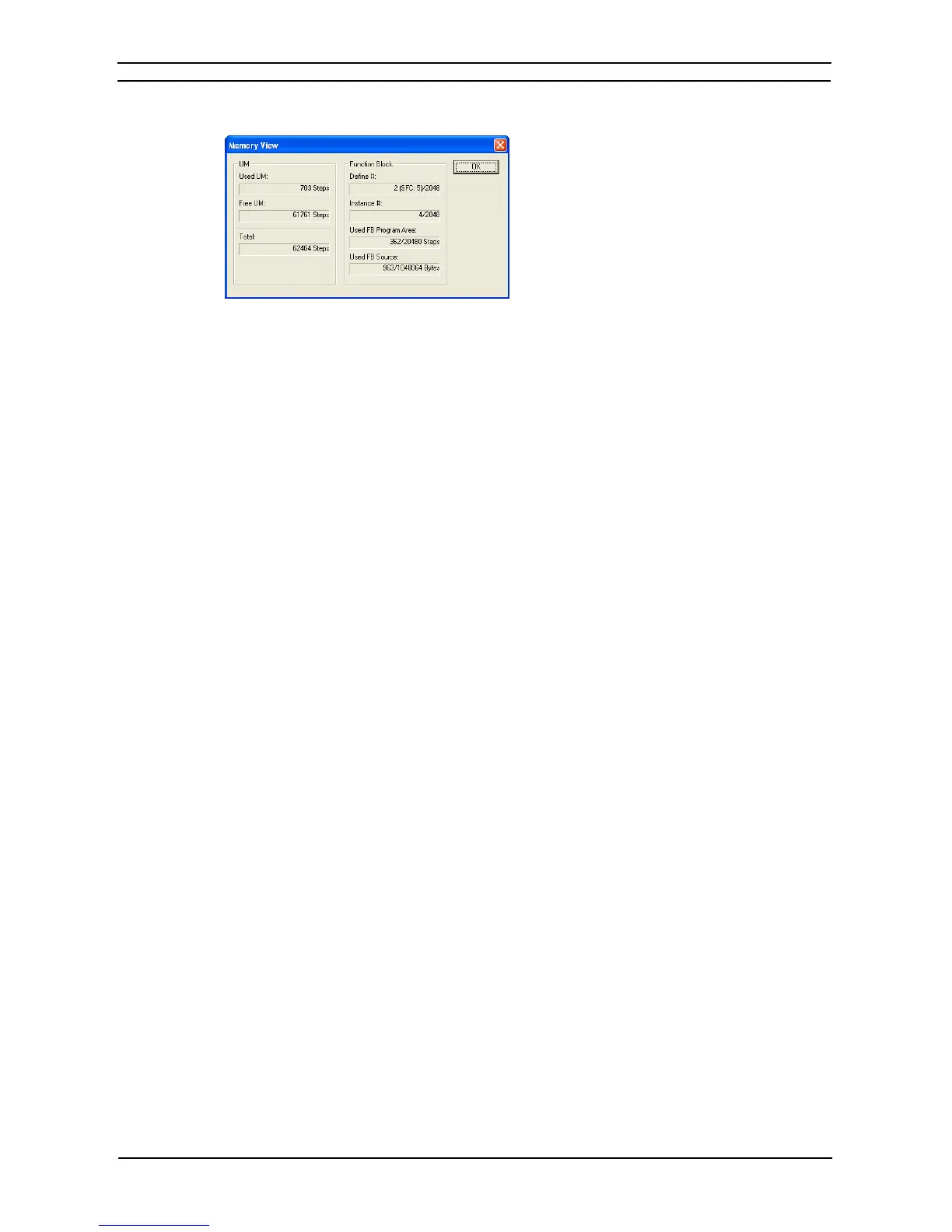

PLC Model Set to CJ2M
Function Block Area
Define #:
The number of function block definitions added to the number of action
programs, transition programs, and sub-charts in SFC programs.
Note: The number of action programs, transition programs, and sub-charts
will be displayed in parentheses (SFC: xx) if SFC programs are used.
Instance #: The number of function block instances pasted in the program over the
maximum number.
Used FB
Program Area:
The number of steps used by function block definitions and instances in the
FB Program Area over the FB Program Area capacity. (If the capacity of the
FB Memory Area is exceeded, the User Memory is used for additional
function block definitions and instances.)
Note: The size of individual function block definitions can be displayed by
right-clicking the function block and selecting Properties - Memory.
Define #: The number of function block definitions added to the number of action
programs, transition programs, and sub-charts in SFC programs.
Note: The number of action programs, transition programs, and sub-charts
will be displayed in parentheses (SFC: xx) if SFC programs are used.
Used FB
Source:
The size of the source code for function block definitions in FB source
memory over the capacity of the FB source memory.
Note: The memory view function calculates User Memory usage from the
program open on the computer. To display memory usage on the actual
CPU Unit, upload the program from the CPU Unit so that the same
program is in both the project and the actual CPU Unit and then use the
memory view function.
