PART 1: CX-Programmer
OMRON CHAPTER 4 – Reference
CX-Programmer _Page 89
PLC Model Set to the CP1E

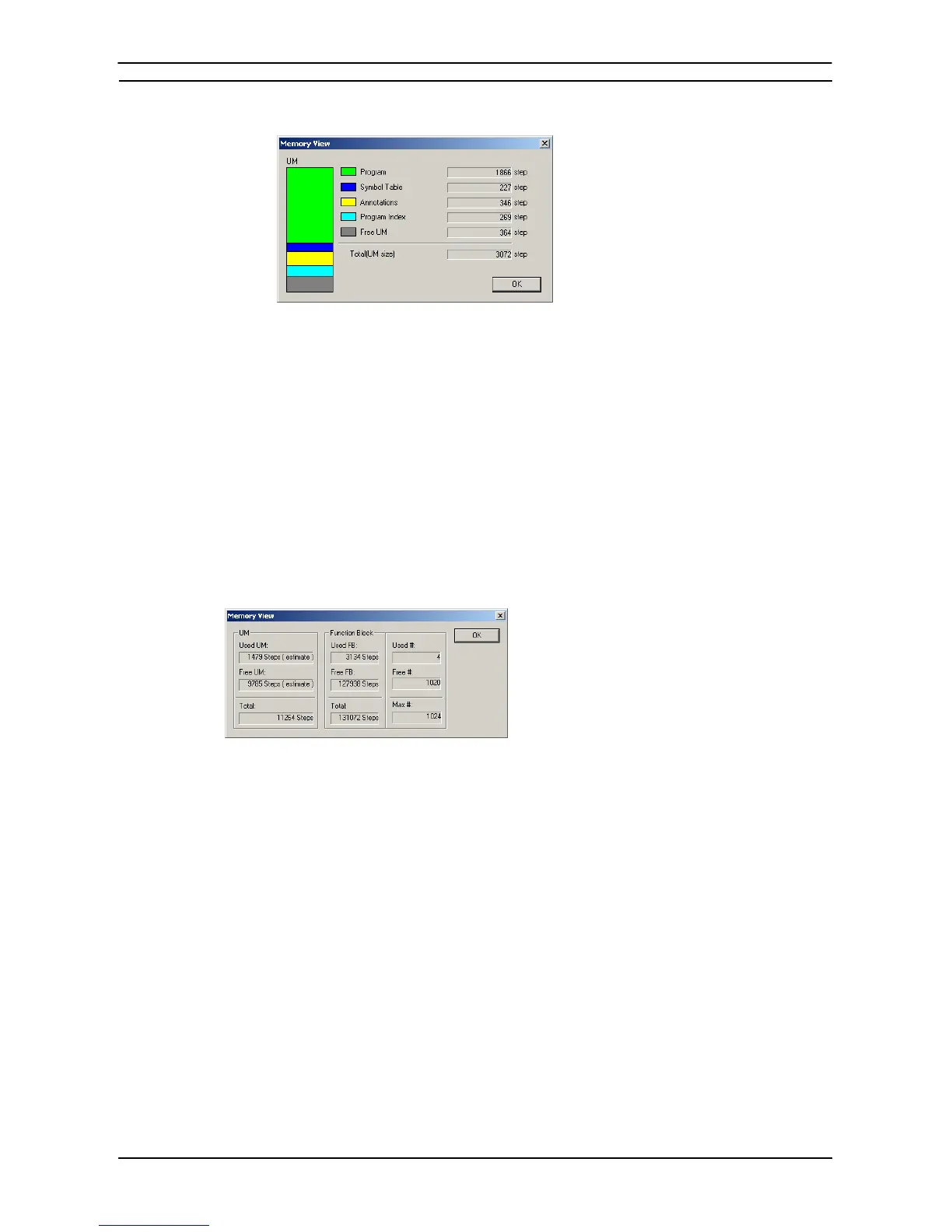

The following items are displayed.
Program: The amount of User Memory that is used by the program.
Symbol table: The amount of User Memory that is used by the symbol table.
Row comments and
annotations:
The amount of User Memory that is used by row comments and
annotations.
Program index: The amount of User Memory that is used by the program index.
Free UM: The amount of User Memory that is still available for use.
Total: The total capacity of the User Memory.
When Function Block Definitions or SFC Programs Are Created
If function blocks or SFC programs are used, related usage is also displayed.
PLC Model Set to Any CS/CJ-series CPU Unit (Unit Version 3.0 or Later) Except the CJ2M
Function Block Area
Used memory:
The size of the source code for function block definitions in function block
source memory.
Free memory: The size of function block source memory that is still available for use.
Total: The total size of function block source memory.
Define #: The number of function block definitions added to the number of action
programs, transition programs, and sub-charts in SFC programs.
Note: The number of action programs, transition programs, and sub-charts
will be displayed in parentheses (SFC: xx) if SFC programs are used.
Unused #: The number of function blocks that can still be defined.
Max. #: The maximum number of function block definitions.
